The Kollmorgen S21260-SRS is a servo drive, specifically part of the S200 Servo Drive Series. This servo drive is designed for industrial applications such as medical, semiconductor fabrication, packaging, and electronic assembly, among others.

This compact brushless servo drive is manufactured by Kollmorgen. When interfaced with Kollmorgen servo motors, the S200 drives provide a comprehensive servo control solution. The drive has a continuous current rating of 12 ARMS and a peak current rating of 18 ARMS. For the voltage, the S21260-SRS supports an input voltage of either 120 Volts AC or 240 Volts AC at all currents.

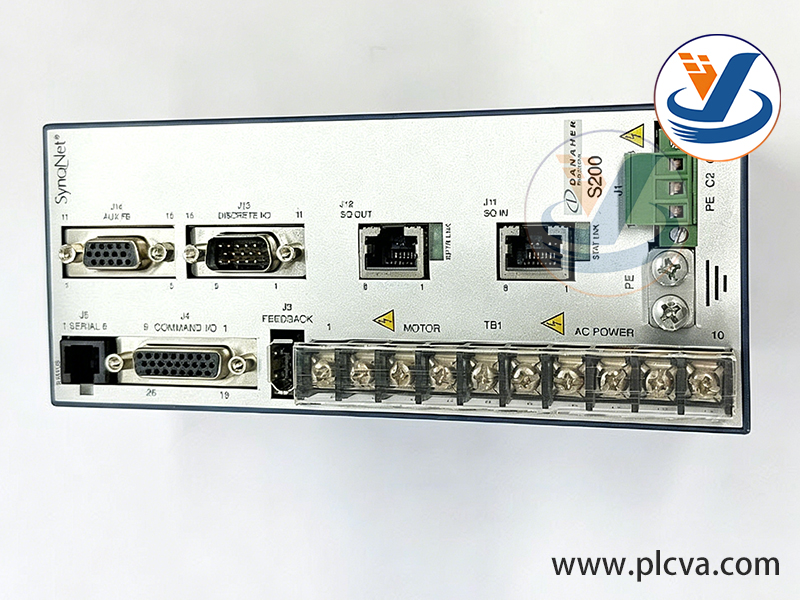

The drive features a pre-installed SynqNet option card with standard RJ connectors. At an ambient temperature of 40 degrees Celsius, the drive has a continuous current convection rating of 12.0 ARMS and 8.0 ARMS at a surrounding temperature of 50 degrees Celsius.

Technically, the S21260-SRS supports an AC line with a maximum voltage of 250 kiloVolts Amperes. Note that S200 drives have a maximum velocity loop bandwidth of up to 800 Hertz and a 24-bit high resolution feedback.（Click for related products:S20360-SRS）
