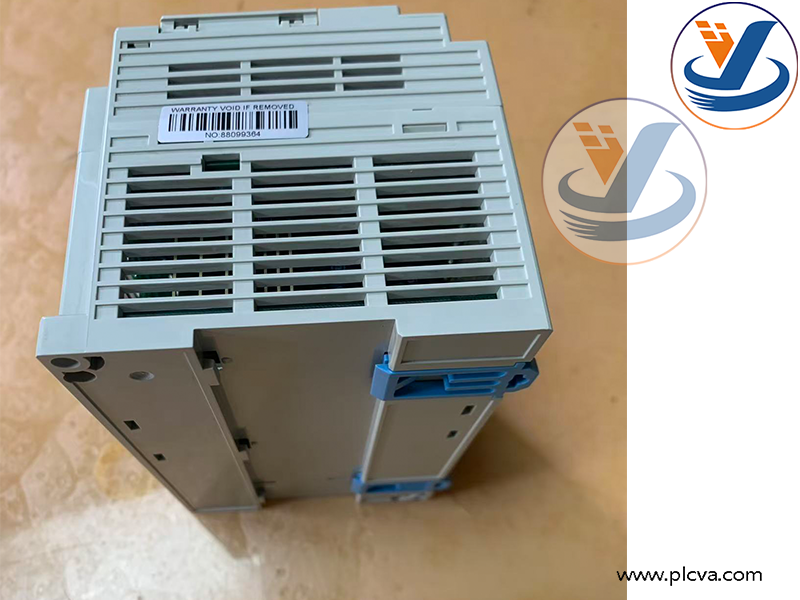

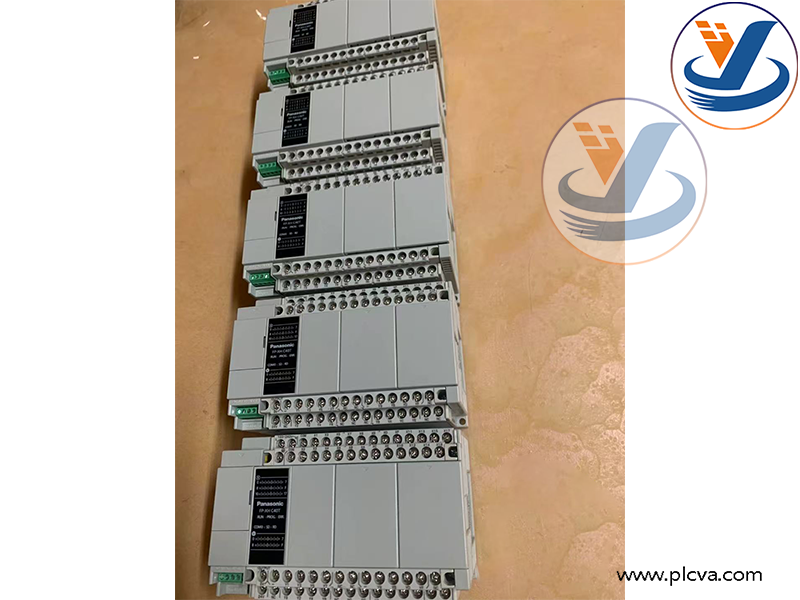

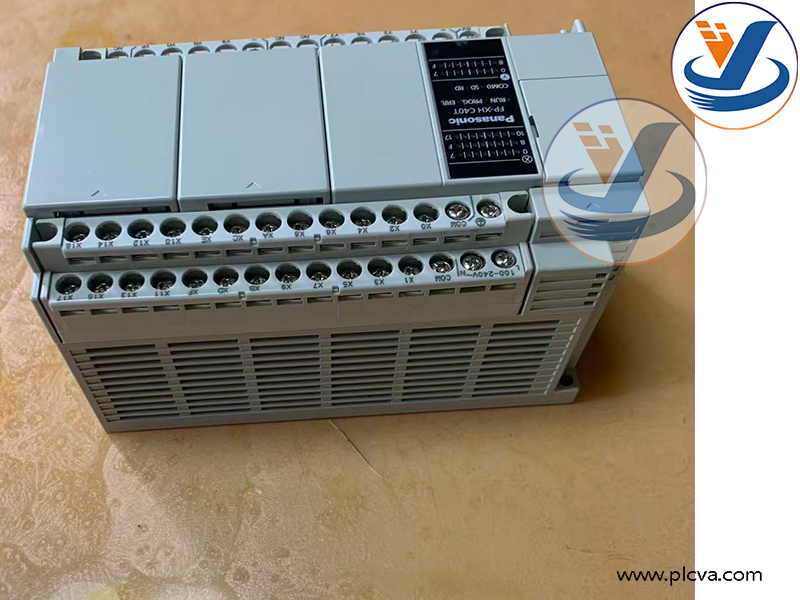

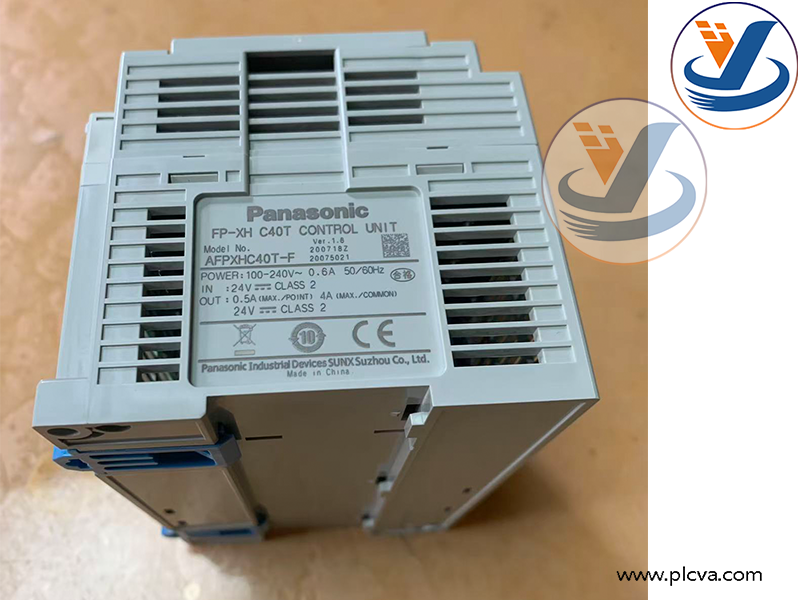

Panasonic FP-XH C40TD

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

Basic Logic Automation Control It collects digital input signals from proximity switches, photoelectric sensors, push buttons and limit switches. It executes logical operations via ladder diagram programs to control actuators including solenoid valves, indicator lights and small motors, realizing automatic cycles, conveying, start-stop and interlock protection. Equipped with built-in 40-point I/O (24 inputs + 16 transistor outputs), it can connect extended I/O modules to expand signal capacity.
Multi-axis High-precision Motion Control (Core Advantage) Built-in independent high-speed pulse output channels directly drive stepper and servo motors. It supports positioning, fixed-length cutting, multi-axis synchronization, electronic cam, flying shear and homing functions, widely used in manipulators, cutting machines, packaging equipment and numerical feeding machinery. Its transistor output supports high-frequency pulse for high-speed motion applications.
High-speed Counter & Pulse Acquisition Multiple independent high-speed counters are integrated to receive encoder pulses for real-time detection of displacement, rotating speed and length, and closed-loop positioning with incremental encoders.
Analog Signal Acquisition & Closed-loop Regulation With analog expansion modules, it receives continuous analog signals of temperature, pressure, liquid level, voltage and current, and performs PID calculation to realize closed-loop constant temperature, constant pressure and constant speed control.
Multi-standard Communication Networking Standard RS232 and RS485 ports are integrated, with optional Ethernet and EtherCAT communication cards. It realizes data exchange with HMI touch screens, inverters, servo drives, industrial PCs and other PLCs to support equipment networking, remote monitoring and centralized production line management.
Comprehensive Equipment Safety Protection It is equipped with input filtering, pulse output short-circuit protection, watchdog monitoring and data retention after power failure. Fault alarming, emergency interlock and error logging functions prevent misoperation and hardware damage.
Convenient Program Maintenance It supports online program editing without equipment shutdown, program annotation and data register power-off retention. The maximum program capacity reaches 40K steps for complex multi-axis linkage control. It adopts compact DIN rail mounting to fit small control cabinets.
