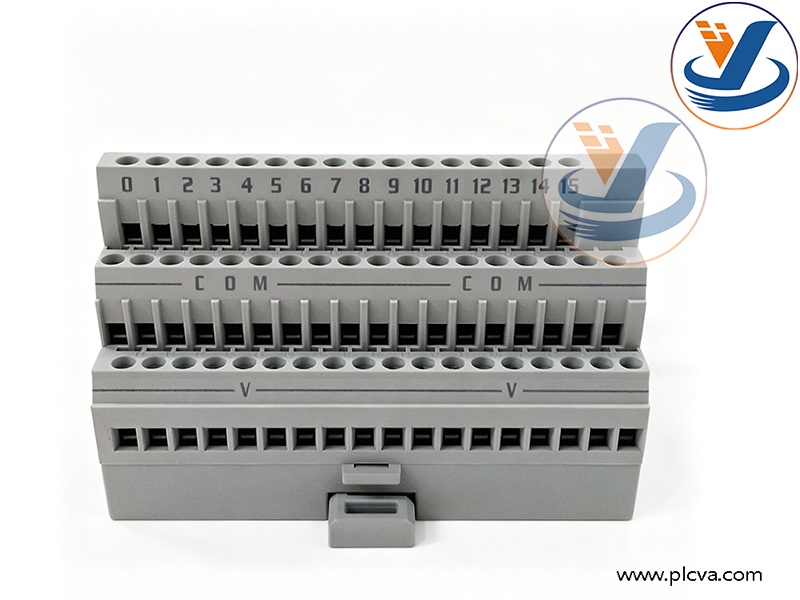

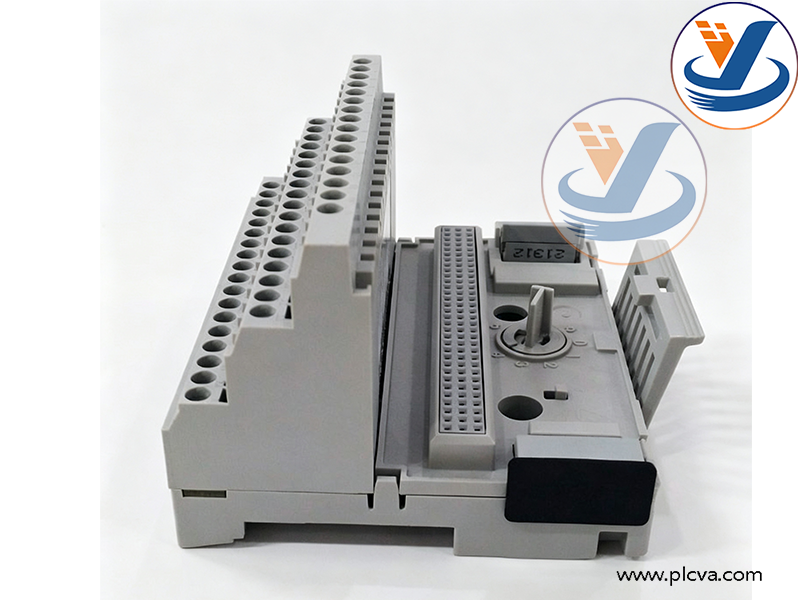

A-B 1794-TB3 Flex Terminal Base Module (1794TB3)
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Functions and Applications
- Product Overview The 1794-TB3 is a terminal base of Allen‑Bradley Flex I/O product family, serving as the mounting base for Flex I/O input and output modules.
- Key Functions
- Mechanical mounting: Acts as the carrier for mating Flex I/O electronic modules.
- Field wiring interface: Equipped with screw terminal blocks for connecting field sensors and actuator cables.
- Signal transition: Provides electrical connection between field wiring and internal circuitry of I/O modules.
- Backplane interconnection: Built-in backplane interface to establish Flex I/O expansion bus.
- Power distribution: Distributes backplane power to installed I/O modules.
- Typical Applications Widely used in automation control systems for discrete manufacturing, water treatment, metallurgy, material handling and other industries. It works with 1794 series digital and analog I/O modules to acquire field digital and analog signals and output control signals to drive solenoid valves, indicator lights and other field devices. It can be mounted on DIN rails inside control cabinets to build distributed remote I/O stations.
