1. Full Model & Model Breakdown

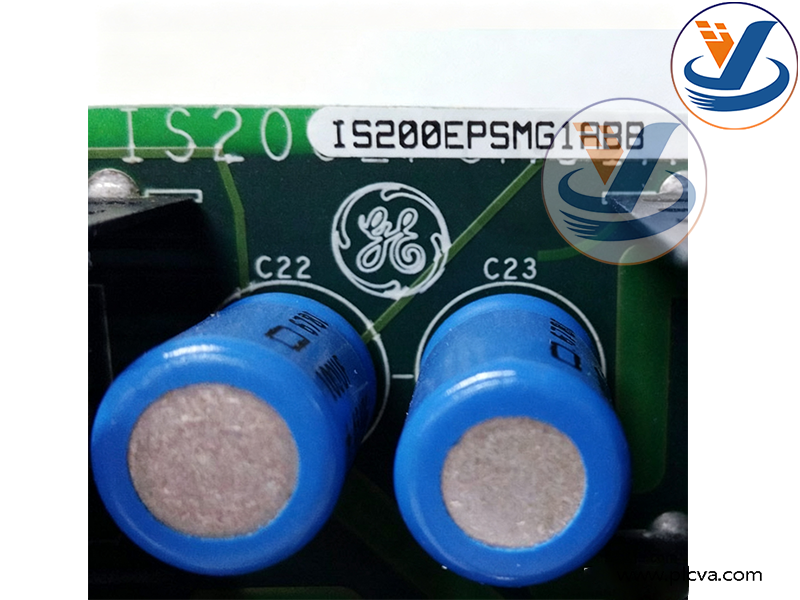

Full Model Name: GE IS200EPSMG1ABB Mark VI Exciter Power Supply Board

• GE: Brand (Former GE Energy, currently part of Emerson)
• IS200: General prefix for circuit boards of GE Mark VI turbine control system
• EPSM: Exciter Power Supply Module
• G1: Hardware form factor revision code
• ABB: Final hardware revision suffix
• Mark VI: Classic turbine control system platform developed by GE
• Exciter Power Supply Board: Power supply circuit board for exciter system

IS200EPSMG1ABB is the complete part number, a dedicated power board for Mark VI turbine control series.

2. Main Functions

1. Designed for GE Mark VI turbine control system, serving as supporting power supply board for the exciter circuit.
2. Supplies stable and regulated DC operating power to the system’s exciter control unit and excitation regulation loops.
3. Receives main control signals and cooperates with exciter modules to regulate the generator excitation power supply.
4. Embedded hardware monitoring circuits continuously collect operating voltage and current status.
5. Equipped with overvoltage, overcurrent and short-circuit protection functions. It activates protection and sends system alarms when faults occur.
6. Communicates with Mark VI backplane via board connectors and uploads operational diagnostic data.
7. Ensures continuous and stable power supply to the exciter unit and maintains normal generator excitation regulation.

3. Applications

1. Compatible with GE Mark VI control systems for steam turbine generators and gas turbines.
2. Mainly deployed for gas turbine and steam turbine generator units in thermal power plants and combined-cycle power stations.
3. Acts as a critical component of the generator excitation system, providing power support for the excitation controller.
4. Participates in unit reactive power regulation and voltage stabilization control.
5. Widely used for turbine unit retrofits, spare parts replacement and system maintenance in power plants.
6. Guarantees reliable operation of generator excitation systems and prevents unit fluctuation or trip caused by abnormal power supply.
