Main Functions

1. Core closed‑loop computation for generator excitation: Heterogeneous CPU+FPGA architecture with microsecond‑level high‑speed control cycle. Execute AVR automatic voltage regulation, field‑current regulation, reactive‑power and power‑factor control algorithms for precise excitation output of synchronous generators.
2. Multi‑mode excitation control: Support multiple control modes including voltage regulation, constant field‑current, reactive‑power and power‑factor control, suitable for stand‑alone operation, multi‑unit parallel operation and grid‑connected conditions.

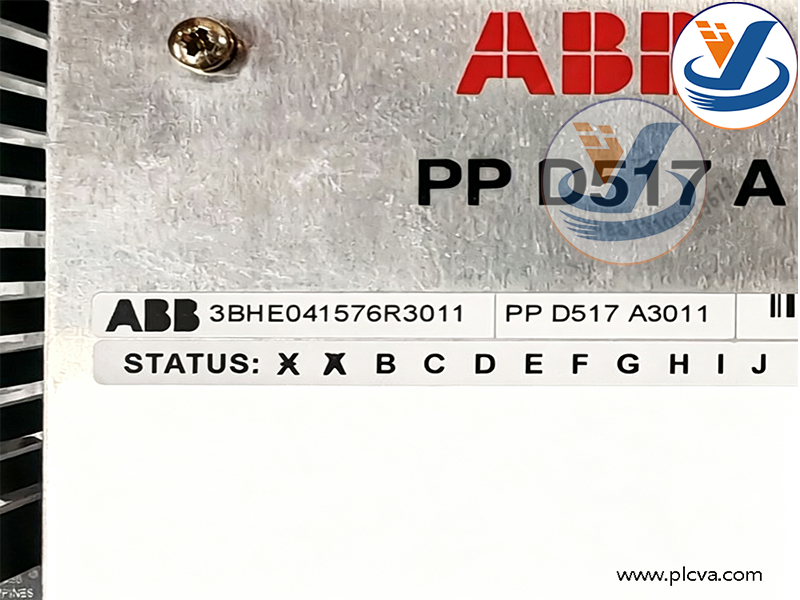

ABB PPD517A3011

1. Comprehensive excitation limitation & protection: Integrate over‑excitation, under‑excitation, stator‑current limitation and loss‑of‑excitation protection; fault recording and black‑start support. Output protective commands rapidly upon faults to safeguard generator units and power grid.
2. Signal acquisition & I/O processing: Collect PT/CT voltage‑current and digital status signals; interface with I/O modules and output pulse signals to drive excitation power units.
3. Multi‑protocol industrial communication: Support Modbus‑TCP, IEC61850 MMS/GOOSE, Ethernet and others. Connect with ABB 800xA DCS, HMI and supervisory systems, upload operating data and alarm events, and receive remote control commands.
4. Redundant hot‑standby capability: Support dual‑module redundant configuration with bumpless master‑standby switch‑over, greatly improving reliability of excitation systems for critical power‑generation units.
5. Commissioning, diagnosis & expansion: Support model‑based programming and on‑line parameter tuning; fault‑event logging and on‑board status indicators. Expandable with S800/S900 I/O modules to adapt to generator units of various capacities.

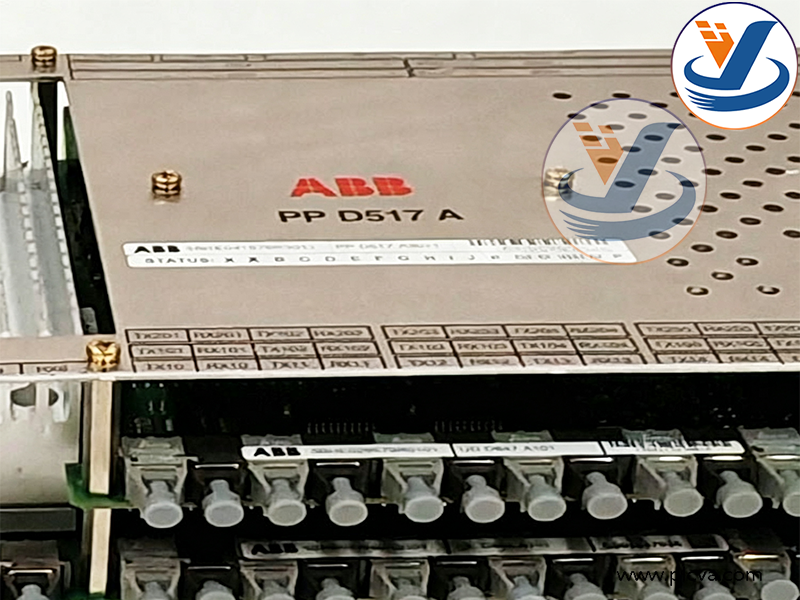

ABB PPD517A3011

Main Applications

This module is based on ABB AC800PEC platform and serves as the core controller of UNITROL 6000 large‑scale excitation systems.

‑ Applied for excitation control of synchronous generators in thermal power plants, hydropower plants, gas‑turbine combined‑cycle power stations, pumped‑storage units and large‑scale industrial captive power plants.

ABB PPD517A3011

‑ Installed inside excitation control cabinets, performing all control‑computing tasks for complete static excitation systems, realizing closed‑loop regulation of generator voltage and reactive power as well as synchronizing paralleling logic processing.

‑ Mainly deployed for medium‑and‑large‑size generator units in power‑generation projects requiring high control speed, reliability and grid‑compliance. It is a critical core spare part for excitation systems.
