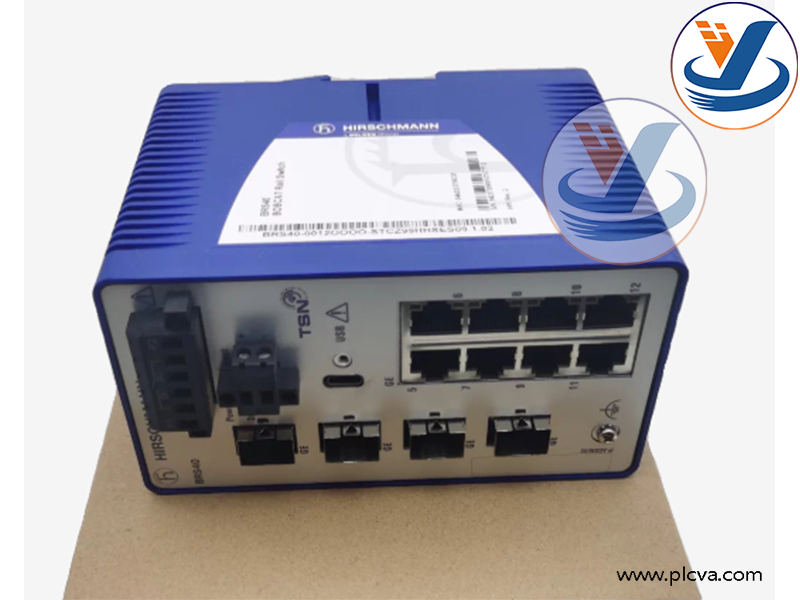

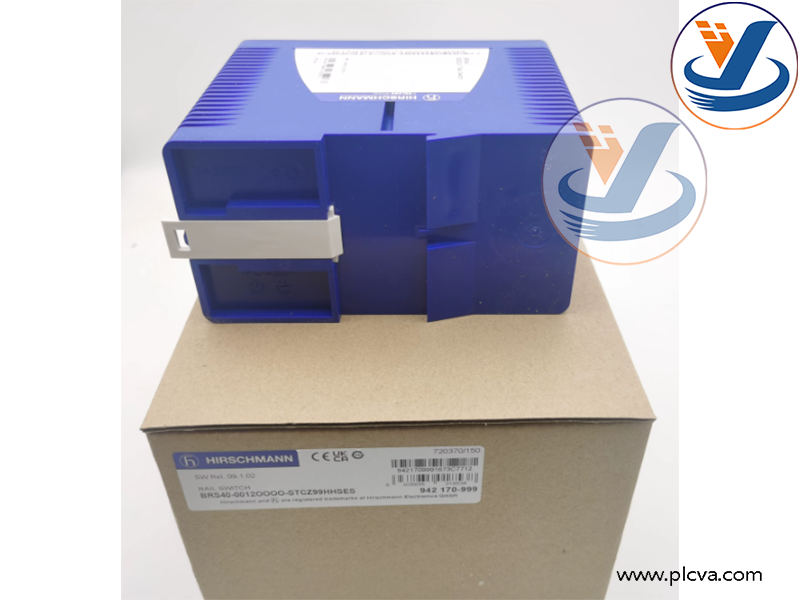

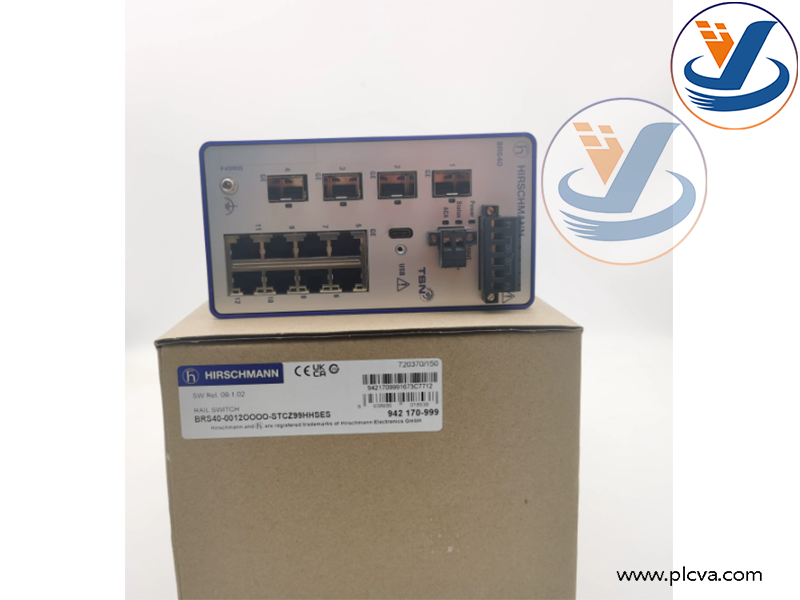

Hirschmann BOBCAT Series BRS40‑0012OOOO‑STCZ99HHSES All‑Gigabit Layer‑2 Managed DIN‑Rail Industrial Switch
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Brand
Hirschmann (Germany, Belden Group). World‑famous manufacturer of high‑reliability industrial Ethernet network devices for automation, railway and energy industries.
Hirschmann BRS40‑0012OOOO‑STCZ99HHSES
Full Product Name
Hirschmann BOBCAT Series BRS40‑0012OOOO‑STCZ99HHSES All‑Gigabit Layer‑2 Managed DIN‑Rail Industrial Switch
‑ BRS40: BOBCAT switch platform
‑ 0012: Total 12 ports
‑ OOOO: 8×Gigabit RJ45 copper ports + 4×SFP fiber slots
‑ STCZ99HHSES: Code for firmware, temperature grade, certification and software configuration.
Port configuration: 8×10/100/1000BASE‑TX copper ports, 4×SFP slots, fan‑less DIN‑rail mounting.
Hirschmann BRS40‑0012OOOO‑STCZ99HHSES
Main Functions
- Layer‑2 all‑gigabit switching: 8 gigabit copper ports plus 4 SFP slots. SFP slots support 1G / 2.5G transceivers for long‑distance fiber communication, enabling mixed copper‑fiber network architecture.
- TSN Time‑Sensitive Networking: Supports TSN‑802.1Qbv time‑aware scheduling for real‑time industrial traffic, compatible with PROFINET, EtherNet/IP field‑bus protocolsAdeptor AS.
- HIPER‑Ring high‑speed redundant ring protocol: Millisecond‑level recovery upon link failure to avoid production network downtime.www.plcva.com
- Dual redundant 12‑24 VDC power inputs: Two power supplies for backup. The device keeps running when one supply fails. Relay contact for fault alarm output.
- Comprehensive managed features: VLAN, QoS priority scheduling, port security, storm protection. Complies with IEC62443 industrial cybersecurity standard. Supports Web, SSH, local USB‑C console and HiVision network management software.
- Fan‑less cooling design, IP30 protection rating. Operating temperature 0 ~ +60 ℃. DIN‑rail clip‑on installation for control cabinet deployment.
Hirschmann BRS40‑0012OOOO‑STCZ99HHSES
Applications
- Factory automation backbone network: Networking for PLCs, robots and machine‑vision systems, building gigabit industrial control infrastructure for TSN real‑time traffic.
- Chemical plants, power stations and metallurgy sites: Mixed copper‑fiber networking inside control cabinets. Optical fiber connects devices across workshop zones; redundant ring topology improves network reliability.
- Industrial communication for railway, tunnel and water‑treatment projects under harsh operating conditions.
- Spare‑part replacement and upgrade for legacy Hirschmann installations, deployed as industrial network access or aggregation switch.
Hirschmann BRS40‑0012OOOO‑STCZ99HHSES
