OPCA‑02 USB‑to‑RJ45 Drive Programming & Download Cable (Compatible with ABB ACS355 / ACS550 / ACS310)
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Brand
Third‑party compatible accessory (not original ABB product). OPCA‑02 is a compatible programming cable for ABB ACS355, ACS550 and ACS310 drives, establishes data communication between PC USB port and drive RJ45 service port.

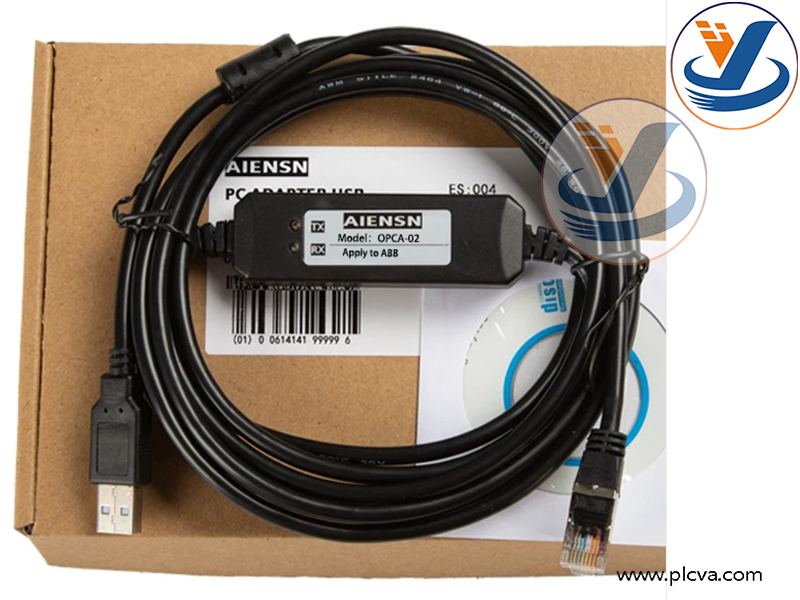

OPCA‑02 USB‑to‑RJ45 Drive Programming & Download Cable

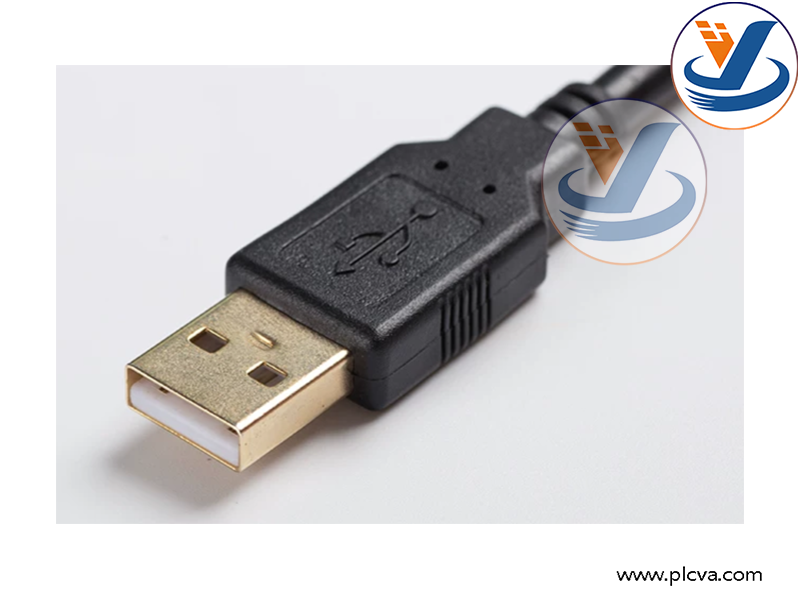

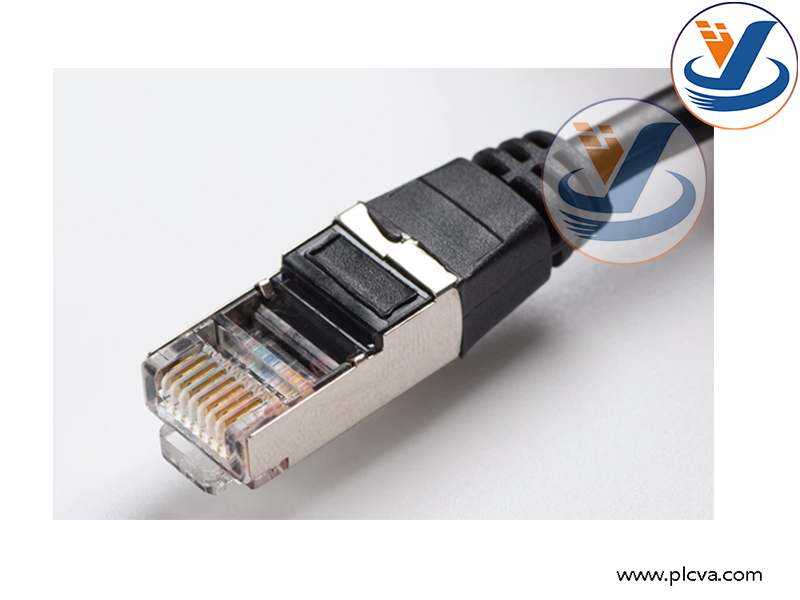

Interfaces: USB‑A male for PC side, RJ45 plug for drive service port. Built‑in FT232RL chip, with noise‑suppression ferrite core. Typical cable length 2‑3 m. Requires FTDI driver installation on PC and works with ABB DriveStudio software.
Note: This is aftermarket substitute cable, not original ABB spare‑part.
OPCA‑02 USB‑to‑RJ45 Drive Programming & Download Cable
Main Functions
- Protocol conversion: Converts PC USB signals to RS485 drive‑service protocol. Connects laptop USB port to drive RJ45 service socket for local PC‑drive communication.
- Parameter upload & download: Read existing drive parameters, download configuration via DriveStudio software. Realize parameter backup and duplication for multi‑drive commissioning.
- Online runtime monitoring: Real‑time reading of drive voltage, current, frequency, temperature and status words; online trace waveform capture.More products: www.plcva.com
OPCA‑02 USB‑to‑RJ45 Drive Programming & Download Cable
- Fault diagnosis: Retrieve fault history log and fault codes, review runtime data at fault occurrence for on‑site troubleshooting. Supports drive firmware update.
- Hardware noise protection: Ferrite core suppresses industrial EMI interference. LED indicators show transmit/receive status. Powered by USB bus, no external power needed. Works only with DriveStudio software. Not compatible with ACS800, ACS580, ACS880 series.
OPCA‑02 USB‑to‑RJ45 Drive Programming & Download Cable
Applications
- Commissioning for ABB ACS355 / ACS550 inverters: On‑site full‑parameter configuration for new‑installed drives during plant startup.
- Maintenance & troubleshooting: Retrieve fault logs for alarm events on metallurgical, chemical, water‑treatment and production‑line equipment.
- Parameter backup & duplication: Save complete parameter files for fast loading to identical drives to reduce repetitive configuration work.
- Service tool for legacy‑equipment maintenance, used by field service engineers as substitute for original commissioning kit.
