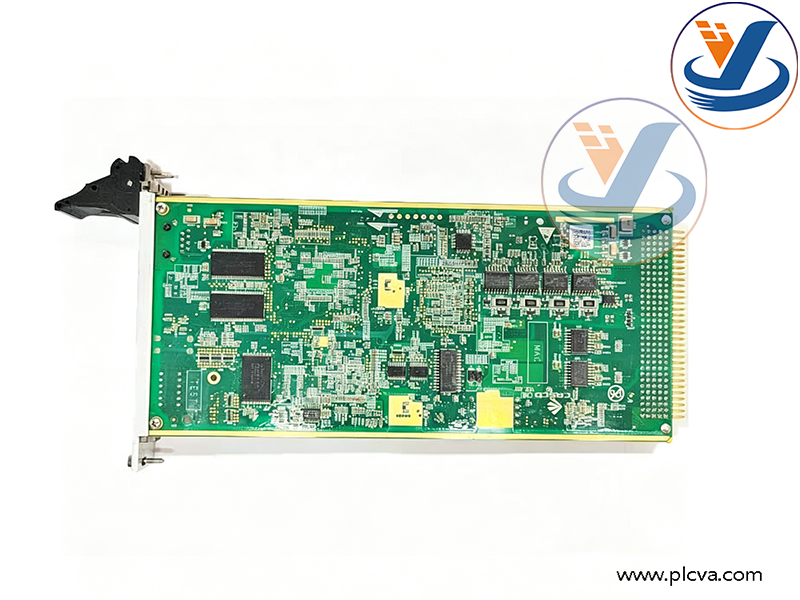

ALSTOM CMU 42015‑115‑00 Data Control Module

Brand: ALSTOM (France)

Model: CMU 42015‑115‑00

Device Name: Data control module

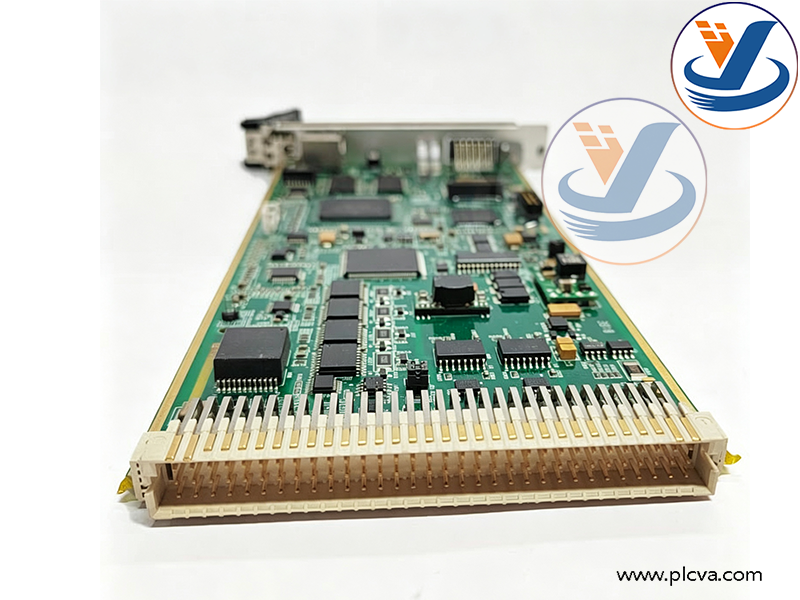

ALSTOM CMU 42015‑115‑00 Data Control Module

Product Background

CMU 42015‑115‑00 is multi‑function VME‑bus data control & communication module for ALSTOM GEM80 turbine control system. It fits into P70035W82V controller rack slot and works cooperatively with AH116‑2, NRD108031, NRD108034 and other GEM80 boards.

‑ CMU stands for Control‑Monitoring Unit.

‑ The board integrates data processing, I/O signal circuits and multi‑type communication interfaces.

‑ OEM production discontinued (EOL). Available stocks are mainly used/refurbished units for maintenance replacement of legacy thermal & gas‑fired power‑plant GEM80 systems.

ALSTOM CMU 42015‑115‑00 Data Control Module

Model Breakdown

1. ALSTOM: Brand, France
2. CMU: Control‑Monitoring Unit
3. 42015‑115‑00: Complete hardware ordering part number
4. Data control module: Product designation

Main Functions

1. Field‑signal acquisition & logic processing Acquire analog and discrete feedback signals from field devices, perform signal conditioning and logic calculation. Output control commands to drive field actuators such as relays and solenoid valves for equipment start‑stop and valve control.
2. VME‑bus data interaction Communicate with CPU processor board over VME back‑plane bus for address & data exchange. Upload field acquired data to controller and receive down‑stream control commands from CPU to realize high‑speed inter‑board data exchange.
3. Multi‑interface communication capability On‑board Ethernet and RS232/RS485 serial ports supporting Modbus and other industrial protocols. Realize data exchange with host computer, HMI and debugging tools for parameter reading, remote diagnosis and fault‑message upload.
4. On‑board self‑test & status indication Equipped with LED status indicators for power‑on self‑test. Real‑time feedback for power, running, communication and fault status to facilitate fast on‑site troubleshooting.
5. Industrial harsh‑environment adaptability Designed for heavy‑EMI power‑plant cabinet environment with wide operating temperature range for long‑term continuous generator‑unit operation.

Note: This module is dedicated for GEM80 VME platform only. It cannot operate standalone and must be plugged into VME rack as part of complete GEM80 system; not compatible with third‑party DCS hardware.

ALSTOM CMU 42015‑115‑00 Data Control Module

Applications

1. Thermal / gas‑fired power‑plant turbine GEM80 control system (primary application) Installed in VME slot of P70035W82V controller rack. It serves as field‑signal acquisition, logic‑processing and external‑communication interface unit, participating in turbine valve, speed and protection‑logic handling. Classified as critical field‑replaceable spare part for turbine control system.
2. Applied exclusively for maintenance replacement of legacy power‑generation units; not specified for new‑project design.
3. Only compatible with ALSTOM GEM80 VME hardware platform, cannot work with other brand control systems directly.

Product positioning: Dedicated VME data‑control module for ALSTOM GEM80 turbine control system, integrating signal acquisition, logic output and multi‑protocol communication; obsolete maintenance spare part for legacy power‑plant units.
