Product Background

NET16‑1.2T (NR235254) is a core plug‑in board belonging to EMG’s SPC16 iCON® strip‑guiding control platformMoore Auto…. It is designed for EMG’s well‑known strip position control systems used in metal rolling, galvanizing, aluminum processing and thin‑film production lines. This board acts as both the system power‑distribution unit and internal backplane communication hub inside the SPC16 rack chassis. It works together with other modules including ADU16 analog input modules and SEV16 servo‑valve drive modules in the same rack. It is a critical spare part for legacy EMG strip‑guidance control cabinets. Original EMG production is discontinued (EOL); only surplus original stock, refurbished or aftermarket compatible spares are available in industrial spare‑parts market. It is a rack‑mount Eurocard plug‑in board; cannot operate as a standalone device, must be inserted into SPC16 system backplane rack.

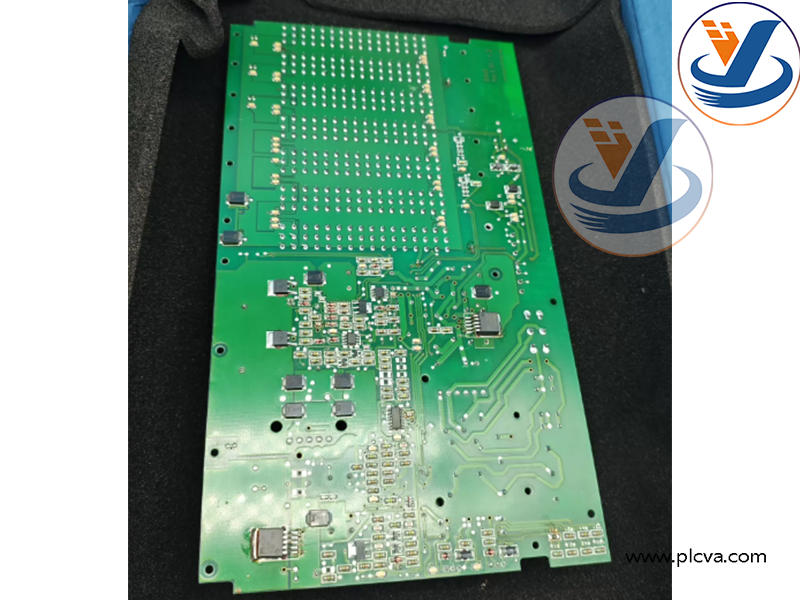

EMG NET16‑1.2T NR235254

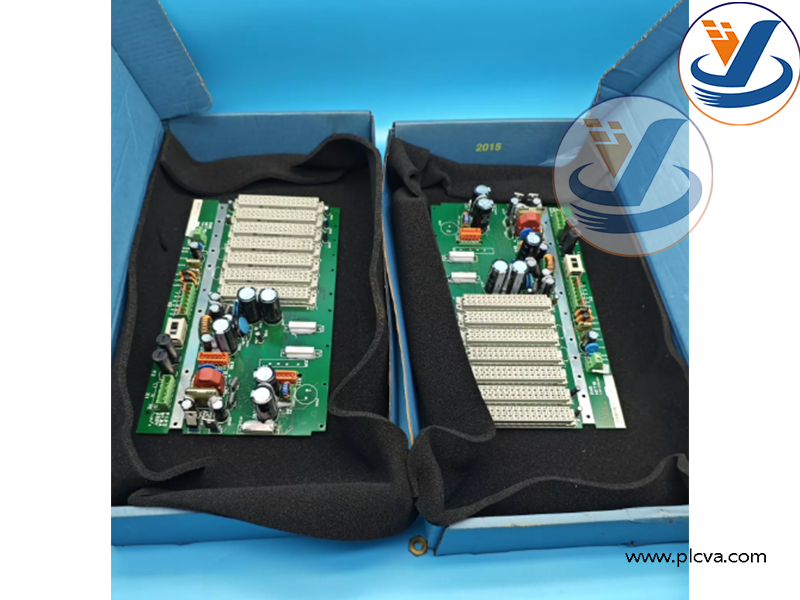

EMG NET16‑1.2T NR235254

Main Functions

1. System power‑supply distribution & conditioning Receives external DC power input, distributes regulated auxiliary DC power to all other plug‑in modules inside the SPC16 rack (ADU16, SEV16 etc.). Performs power filtering, voltage stabilization and over‑current protection for the whole rack‑based control system.More products:plcva.com
2. Internal backplane bus communication management Manages the internal rack backplane bus, realizes high‑speed data exchange between all connected control modules. Coordinates timing synchronization among analog sampling modules, servo‑drive modules and system controller inside the chassis.

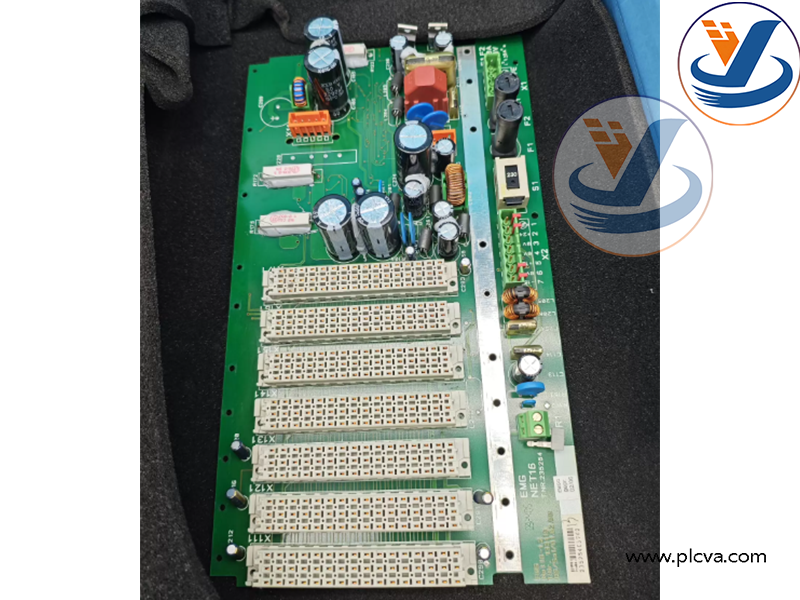

EMG NET16‑1.2T NR235254

1. External field‑bus interface gateway Provides external communication interface (Profibus‑DP / CANopen) to connect the SPC16 strip‑guiding control system to upper‑level plant DCS or PLC control network, transmits strip‑position data and fault information to plant control systemMoore Auto….
2. On‑board status monitoring & LED indication Built‑in power‑status LEDs to show power‑good, bus‑fault and system‑alarm status. On‑board self‑diagnosis detects power‑abnormality, bus‑communication failure and hardware faults, and reports fault status to the system controller for maintenance diagnosis.More products: www.plcva.com
3. System time synchronization Provides hardware clock synchronization for the whole SPC16 rack to guarantee precise sampling and servo‑valve control timing for strip‑position closed‑loop regulation.

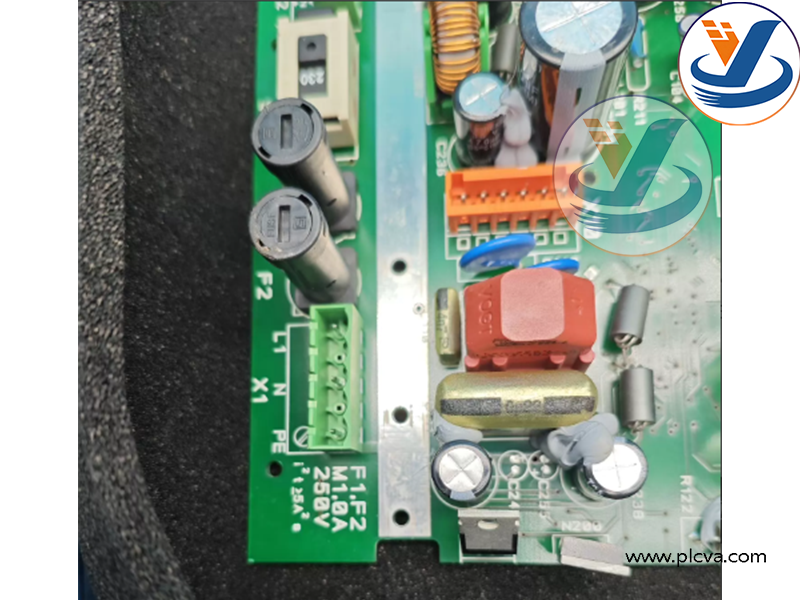

EMG NET16‑1.2T NR235254

Applications & Usage

This board is exclusively used inside EMG SPC16 strip‑guiding control cabinets. Typical end‑user industries and equipment:

• Steel industry: Cold‑rolling mills, hot‑rolling lines, galvanizing lines, tin‑plate production
• Non‑ferrous metal: Aluminum rolling & processing lines
• Thin‑film, paper and foil continuous‑processing production lines
• Strip‑edge position control systems (EMG strip‑guidance systems for continuous web processing).

EMG NET16‑1.2T NR235254
