Product Background

FF‑SPS4 is Honeywell’s classic Type‑4 single‑beam safety perimeter guarding system, designed for machine‑safety perimeter access control, complying with IEC/EN 61496‑1/2 Type 4, OSHA, ANSI B11.19, RIA 15.06 standards.More products: www.plcva.com

It consists of matched Emitter FF‑SPUE10CTE and Receiver FF‑SPUR00CRE. The pair forms a single infrared safety beam for hazardous‑zone perimeter monitoring. This is a legacy industrial safety product, Honeywell has marked this series Discontinued (EOL). Only original surplus stock, refurbished or aftermarket replacement units are available on the spare‑parts market. It is a complete safety sensor pair; emitter and receiver must be used together, cannot operate individually. It supports deflection mirrors for multi‑loop perimeter protection layoutManualsLib.

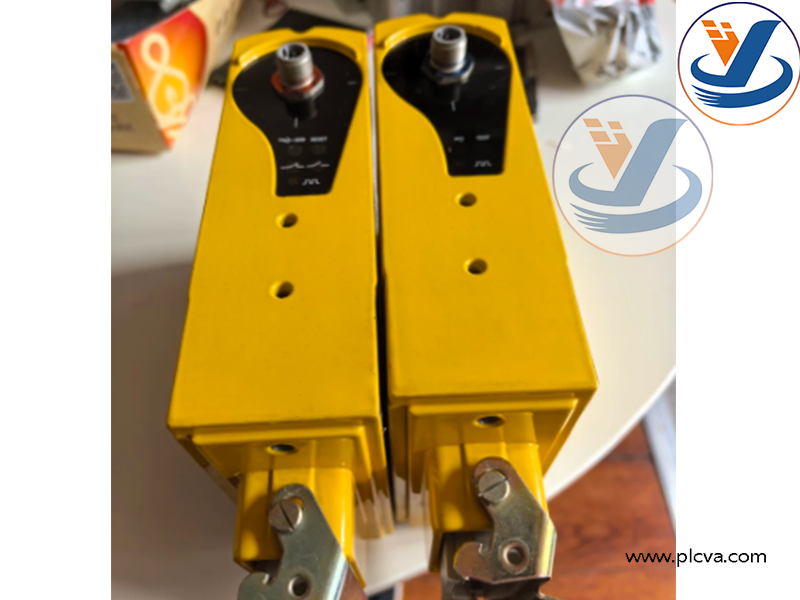

Honeywell FF‑SPS4 (FF‑SPUE10CTE / FF‑SPUR00CRE)

Main Functions

1. Modulated infrared safety beam detection Emitter FF‑SPUE10CTE transmits modulated 880 nm infrared beam; Receiver FF‑SPUR00CRE receives the beam. When the beam is interrupted by human body or object, safety relay contacts open immediately to trigger machine stop. Two selectable emission frequencies (40 kHz / 50 kHz) to avoid mutual interference between multiple safety‑beam setsManualsLib.
2. Type‑4 continuous self‑diagnostic safety logic Continuous dynamic self‑checking for internal hardware faults. Any internal circuit failure will force safety‑relay outputs to safe state, prevents unsafe‑fault condition, meets highest‑level Type‑4 safety requirement (SIL3 / PLe).
3. Safety relay output (guided contacts) Receiver unit built‑in 2 NO + 1 NC safety relay contacts (2 A / 250 Vac). Hard‑wired safety stop output to machine control circuit.
4. FSD (Final Switching Device) monitoring loop Built‑in monitoring input for external safety final‑switching‑device relays, can detect contact‑welding failure of external safety relays without extra safety‑monitor moduleManualsLib.
5. Start / Restart interlock function Configurable manual‑restart or automatic‑restart mode. Manual‑restart mode: after beam‑break or power‑on, system stays in alarm state, requires operator‑button reset to resume machine operation; configurable via internal DIP switch.
6. Test input function External test input for periodic functional verification of safety‑beam and external interface relays, for regular safety‑system validation.
7. High‑environmental‑resistance design IP67 enclosure rating, strong ambient‑light immunity; operating temperature 0‑55 °C. Built‑in LED status indicators for beam‑ok / beam‑broken / fault status for field‑site troubleshootingManualsLib.
8. Mirror‑compatible layout Supports deflection mirrors to build multi‑side perimeter safety‑protection loops for large hazardous‑area protection, without extra sensor units.

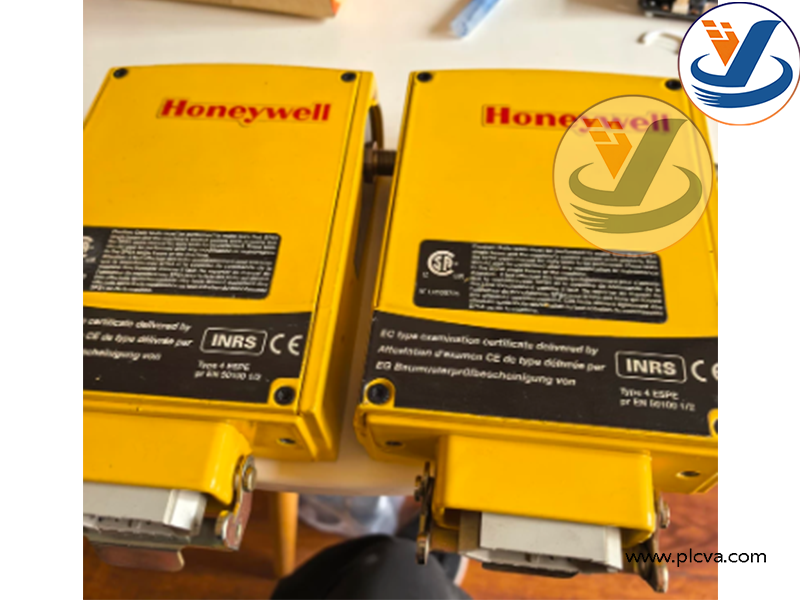

Honeywell FF‑SPS4 (FF‑SPUE10CTE / FF‑SPUR00CRE)

Applications & Usage

FF‑SPS4 (FF‑SPUE10CTE + FF‑SPUR00CRE) is used as perimeter safety access‑control for industrial machinery dangerous zones. It is not a light‑curtain for press‑machine point‑of‑operation protection; it is for area‑perimeter intrusion detection.

Honeywell FF‑SPS4 (FF‑SPUE10CTE / FF‑SPUR00CRE)

Typical end‑user scenarios:

• Robot work‑cell perimeter safety protection
• Paint‑shop entrance/exit access safety monitoring
• Packaging machinery, automated production‑line hazardous‑zone perimeter guarding
• Material‑handling machinery, automated‑work‑cell boundary protection
• Heavy‑industry machinery safety perimeter interlock

Important note:

1. Must use matched emitter‑receiver pair; cannot mix with other model beams.
2. Type‑4 safety device, requires risk‑assessment per machinery‑safety standards before installation.
3. Can work with deflection mirrors for complex perimeter layout.
4. It is a safety‑perimeter‑beam sensor, not a general‑purpose photoelectric sensor.
