Core Functions

PPD512 is the main processor of AC 800PEC. It executes fast‑loop power‑electronics control algorithms, reads high‑speed sampling data from dedicated I/O modules, sends control commands to converters, and also handles slow‑speed process monitoring and communication tasks.

1. Dual‑speed real‑time control architecture

• Fast‑loop: 100 µs cycle time, supports MATLAB/Simulink model‑based control algorithms for power‑converter closed‑loop control (rectifier, inverter, STATCOM, SVC, excitation control).
• Slow‑loop: IEC 61131‑3 standard PLC logic for process monitoring, interlock, alarm handling, same controller can run both high‑speed power‑control and conventional process‑control tasks.

2. High‑speed optical‑fiber communication

• Internal backplane bus for high‑speed I/O sampling modules (DKTFM series).
• Optical DriveBus / Modulebus for communication with power‑converter power‑cell units, low‑latency anti‑EMI data transmission in high‑voltage environments.
• Supports multi‑protocol: Modbus‑TCP, Profibus‑DP, IEC 61850, Powerlink; can connect to System 800xA HMI and SCADA systems for operator monitoring.More products: www.plcva.com

3. Power‑converter control & protection logic Implements control for static reactive power compensation (SVC/STATCOM), generator excitation, large‑scale rectifier/inverter, HVDC converter‑valve control. Runs built‑in fault detection, over‑current, over‑voltage, over‑temperature protection logic, triggers fast trip/shutdown for power‑converter faults.
4. Diagnostics, event & fault recording Built‑in self‑diagnosis for CPU, memory, communication and I/O status. Stores event logs and fault disturbance records. Front‑panel LEDs show power, run, fault status. Programming & configuration via ABB Control Builder M tool, supports Simulink model download.
5. System integration capability Can be integrated with ABB System 800xA DCS. Real‑time process data can be shared with standard AC800M controllers, enabling combined power‑electronics + process‑automation control in one plant‑level system.

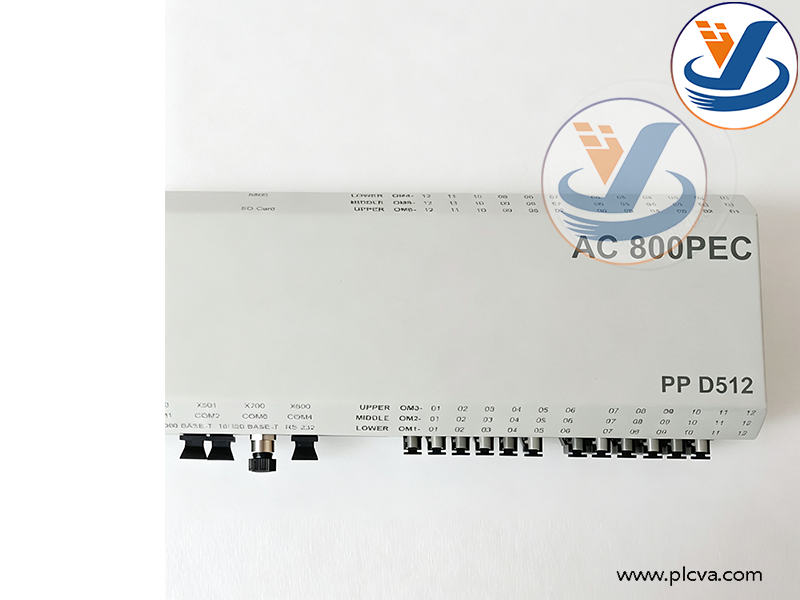

ABB AC 800PEC PPD512 High‑Speed Power‑Electronics Controller Module

Hardware Interfaces

• 24 VDC power‑supply input
• Sub‑rack backplane connector for connection with AC 800PEC rack and high‑speed I/O modules
• Optical‑fiber ports for high‑speed power‑converter communication
• Ethernet and RS‑232 for engineering tool connection
• Front‑panel status LEDs, reset button
• Plug‑in slot mounting inside AC 800PEC sub‑rack cabinet, IP20

ABB AC 800PEC PPD512 High‑Speed Power‑Electronics Controller Module

Main Applications & Deployment Sites

Core Application: High‑speed control CPU for power‑electronics converters, synchronous‑generator excitation systems, static reactive‑power compensation, large‑power drives, renewable‑energy grid‑tie converters, HVDC control. It is used for applications requiring microsecond‑level control response speed, cannot be replaced by ordinary AC800M DCS CPU.

1. Thermal & Hydro Power Plants Generator excitation‑system control; SVC/STATCOM reactive‑power compensation; large‑power auxiliary converter control; HVDC‑related converter‑valve control in power‑station auxiliary systems.
2. Renewable‑energy industry Wind‑turbine grid‑tie converter control; PV inverter control; energy‑storage PCS converter control.
3. Heavy‑industry power‑electronics equipment Large‑scale rolling‑mill drive control; SVC/STATCOM static reactive‑power compensation systems; high‑power rectifier/inverter control for metallurgy and mining plants.
4. HVDC transmission systems Converter‑valve control for high‑voltage direct‑current transmission projects.
5. Rail‑transit traction systems Traction‑converter control for subway, light‑rail and locomotive equipment.
6. Offshore oil‑gas platforms High‑power converter and reactive‑power‑compensation control for offshore‑platform power‑systems.

Key distinction summary for reference:

• PPD512A10‑454000 (AC800PEC): High‑speed power‑electronics controller CPU for converter/excitation/SVC, microsecond‑loop control.
• PM‑series (AC800M): Standard DCS process‑control CPU for general industrial process automation, slower cycle time, not optimized for power‑converter high‑speed control.
• DSAI130A: S800 analog‑input I/O board for ordinary field‑signal acquisition.
• REM620 / REF610: Protection relays for motor and feeder fault protection.
• UFC911B101: Medium‑voltage‑drive main‑control board for motor VFD.
• UNITROL 1020: Generator excitation AVR regulator.
