1. Main Functions

This is the core main‑control motherboard for Barco DP2K‑10S digital cinema projector. It serves as the central control hub coordinating projector hardware, peripheral interfaces, local operation and remote system communication.

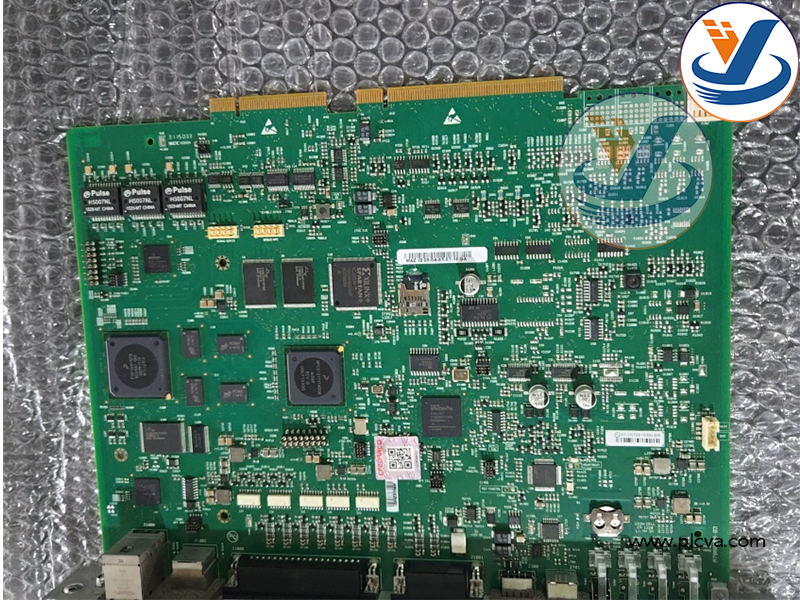

Barco DP2K‑10S Cinema Controller Board

1. Overall Projector Hardware Management It executes master control logic for the whole projector unit: xenon lamp ignition & lamp power regulation, dowser shutter control, cooling fan speed adjustment, lens motor drive, power module monitoring. It collects real‑time hardware status including lamp runtime, temperature sensors, power supply status, optical‑block signals for system judgment and protection interlock.More products: www.plcva.com
2. Human‑Machine Interface & Local Operation Interfaces with front‑panel keypad and local touch‑panel. Realizes local manual operations: power on/off, lamp switching, menu navigation, parameter setup, status readout and fault code display. It processes local operator input and returns device status feedback.

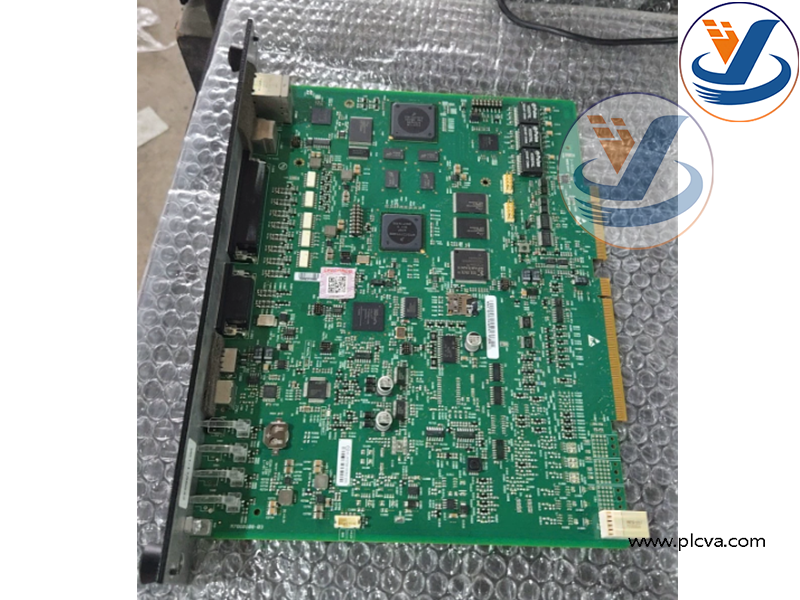

Barco DP2K‑10S Cinema Controller Board

1. Multi‑port Communication Gateway Integrates Ethernet, serial and GPIO opto‑isolated I/O ports. It communicates with ICMP media processor board, backplane, TMS (Theatre Management System), remote Web Commander control systemBarco. It transmits playback‑related commands, alarm events and running telemetry data; receives remote scheduling and control instructions from theatre central management system. 8‑channel opto‑isolated GPIO outputs support external automation triggering for screen curtains, auditorium lighting and peripheral theatre equipmentBarco.
2. System Fault Diagnosis & Protection Logic Monitors critical hardware parameters continuously. Triggers hardware protection actions such as lamp cut‑off and projector shutdown for over‑temperature, fan failure, power anomaly and hardware fault. Stores error logs, event history and runtime counters for on‑site maintenance troubleshooting.
3. Firmware Execution & Configuration Storage Stores projector system firmware, hardware configuration data, calibration parameters and network settings. Supports firmware upgrade via Barco Communicator tool. Preserves user settings even after power‑off.

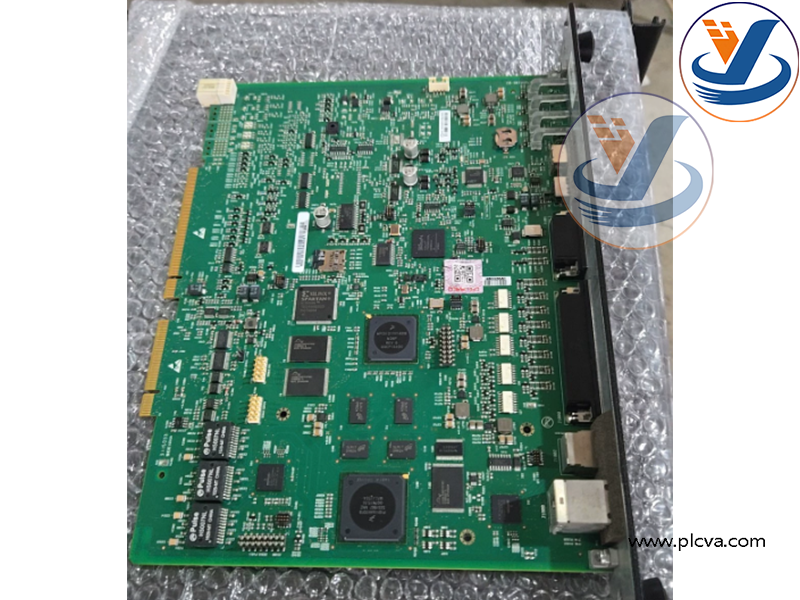

Barco DP2K‑10S Cinema Controller Board

2. Applications

1. Spare Replacement for DP2K‑10S Digital Cinema Projectors Primary replacement spare main‑control board for Barco DP2K‑10S / DP2K‑10SLP integrated DCI‑compliant cinema projectors, widely used for broken‑board swap in small‑size movie auditoriums, art‑house cinemas and booth‑less cinemasBarco.
2. Digital Cinema Hall Operation Control System Works cooperatively with ICMP media server board to complete projector control under TMS theatre management environment, supports automatic show scheduling, inter‑locking with cinema peripheral equipment such as curtain and light control.
3. Cinema Equipment Retrofit & Maintenance Project Applied for on‑site repair and refurbishment of existing Barco S‑series projection equipment. Replaces defective original controller board without changing optics, media module and cabinet structure, to restore normal projection operation and avoid complete equipment replacement.
4. Independent Single‑screen Cinema Deployment Supports stand‑alone working mode without upper‑level TMS system. Realizes local manual operation for small independent cinemas, private theatres and exhibition‑hall projection systems.

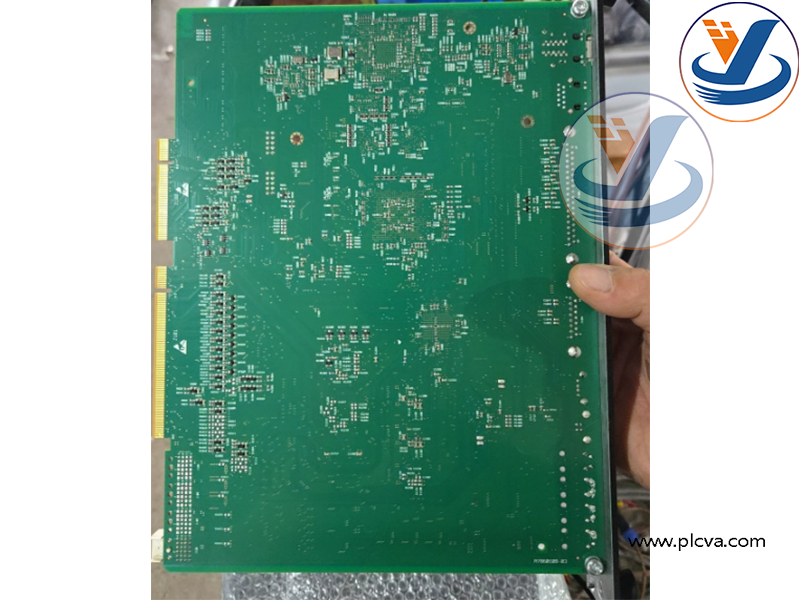

Barco DP2K‑10S Cinema Controller Board

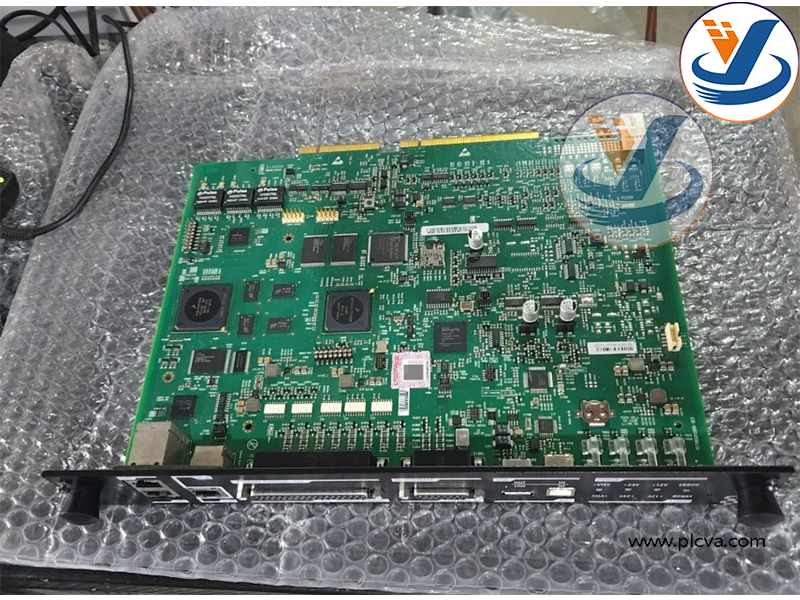

Barco DP2K‑10S Cinema Controller Board

Barco DP2K‑10S Cinema Controller Board
