Main Functions

Real‑time main computing & control execution PowerPC 250 MHz CPU with floating‑point unit runs Microware OS‑9 real‑time OS. Executes laser motion logic, process sequence calculation, closed‑loop algorithm, and machine‑state management for Trumpf laser equipment. Provides deterministic real‑time task scheduling for high‑speed industrial motion control.
VME64 back‑plane bus master communication Acts as VME‑bus master controller. High‑speed data exchange with other VME slave boards inside the laser control rack, including I/O boards, axis control modules, sensor acquisition boards, and power unit interface cards. Implements PCI‑to‑VME bridge for internal data forwarding.More products: www.plcva.com
Multi‑channel Ethernet and peripheral interfaces Front‑panel equipped with multiple 10/100 Mbps Fast‑Ethernet ports for host‑PC connection, HMI panel communication, and factory network interconnection. On‑board memory includes SDRAM and non‑volatile flash storage for firmware, application program and parameter storage.

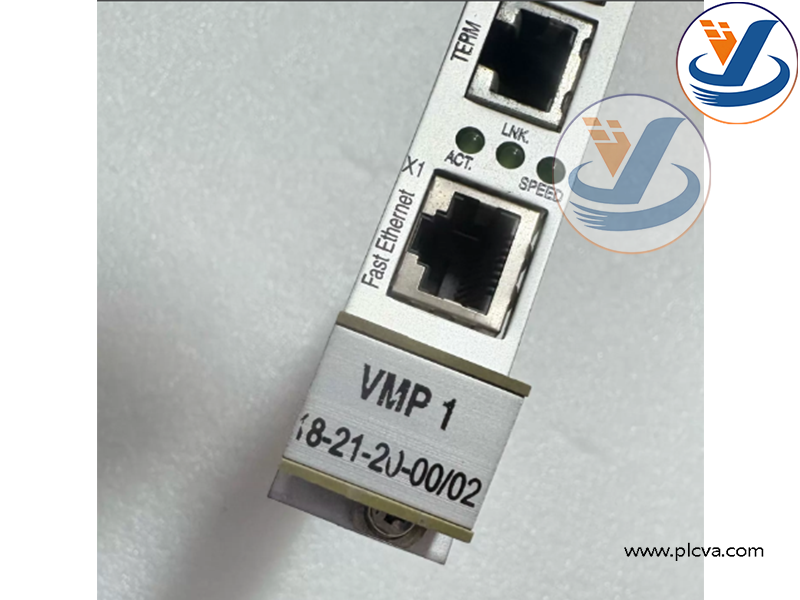

Kontron (PEP) VMP1 VME CPU Board, Trumpf part‑number 18‑21‑20‑0002

System monitoring and reliable embedded hardware features Integrated hardware watchdog timer, real‑time clock (RTC), temperature sensor and front‑panel status LED indicators. Watchdog circuit triggers automatic reset in case of software crash to enhance system robustness for unattended industrial operation. Supports PMC expansion slots for optional function extension.
Firmware, parameter and fault‑log storage Local flash memory stores machine configuration parameters, processing recipes and historical fault event logs. Supports local boot and network netboot mode. Stores critical laser‑process parameters for equipment commissioning and post‑failure diagnosis.
Rugged industrial environmental performance 3U VME eurocard mechanical structure, designed for rack‑mount installation inside laser‑machine electrical cabinet. Wide operating temperature range, anti‑vibration and anti‑EMI capability, meets continuous long‑time‑running requirements for laser processing equipment.

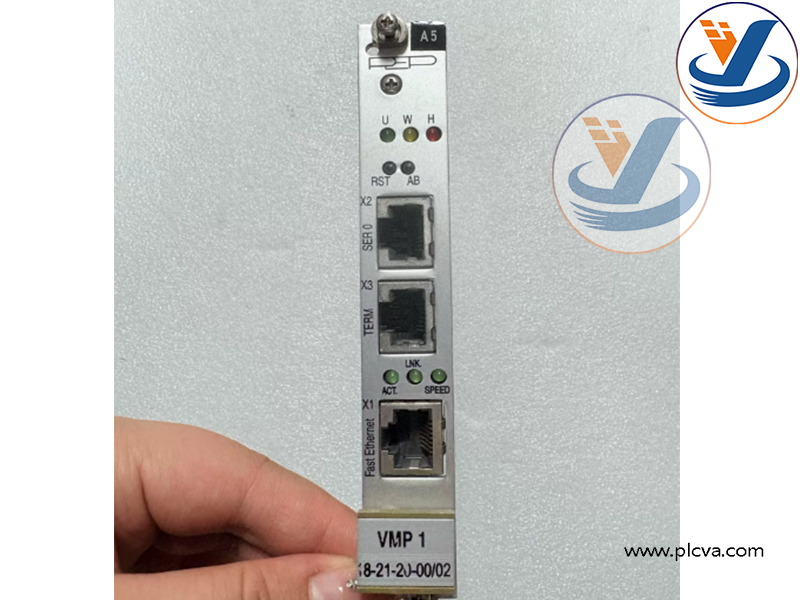

Kontron (PEP) VMP1 VME CPU Board, Trumpf part‑number 18‑21‑20‑0002

VMP1 (18‑21‑20‑0002) is a dedicated real‑time CPU single‑board computer serving as main controller for TRUMPF series industrial laser machines.

Kontron (PEP) VMP1 VME CPU Board, Trumpf part‑number 18‑21‑20‑0002

Typical deployment scenarios:

TRUMPF CO₂ laser and solid‑state laser cutting / welding machine control cabinets
VME‑based control rack inside Trumpf laser manufacturing equipment
Spare‑part replacement, overhaul and retrofit for existing legacy Trumpf laser systems

Core operational purposes:

Serve as the real‑time main computing core of laser machine, run OS‑9 real‑time system to execute laser‑process control, motion sequencing and equipment interlock logic
Communicate via VME back‑plane with other functional boards to coordinate I/O, motion axes and laser power‑unit operation
Realize data interaction with operator HMI, upper‑level host computer and plant network via Ethernet ports
Store laser‑processing parameters, recipes and fault records to support production operation and troubleshooting
Ensure stable deterministic real‑time control for laser cutting and welding processes; replace defective board to restore full‑function operation of Trumpf laser equipment.
