1.Main Functions

1. Deterministic real‑time logic execution & PLC control Runs M1 real‑time operating system, executes user application programs following IEC 61131‑3 standards including Structured Text, Ladder Diagram, Function Block Diagram. Performs cyclic logic computation, closed‑loop regulation, interlock logic and sequence control for industrial processes, provides deterministic scan cycle for time‑critical automation tasks.More products: www.plcva.com

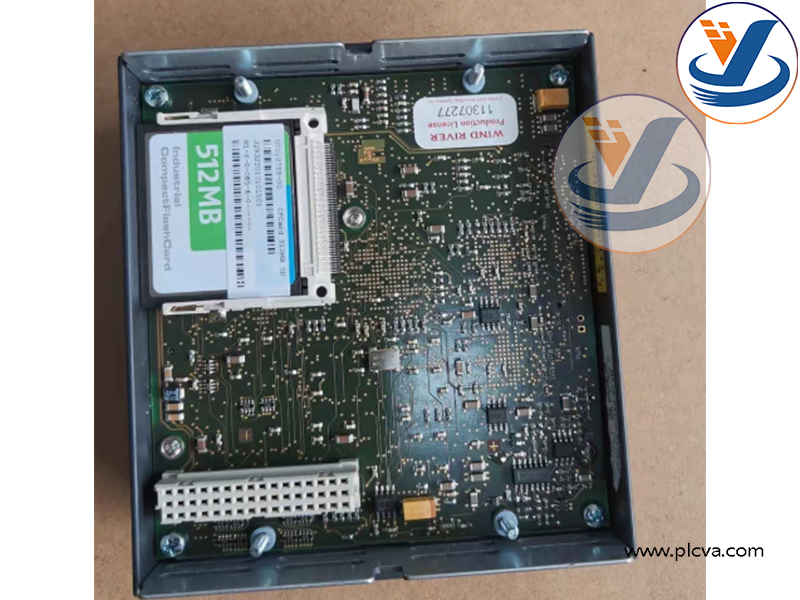

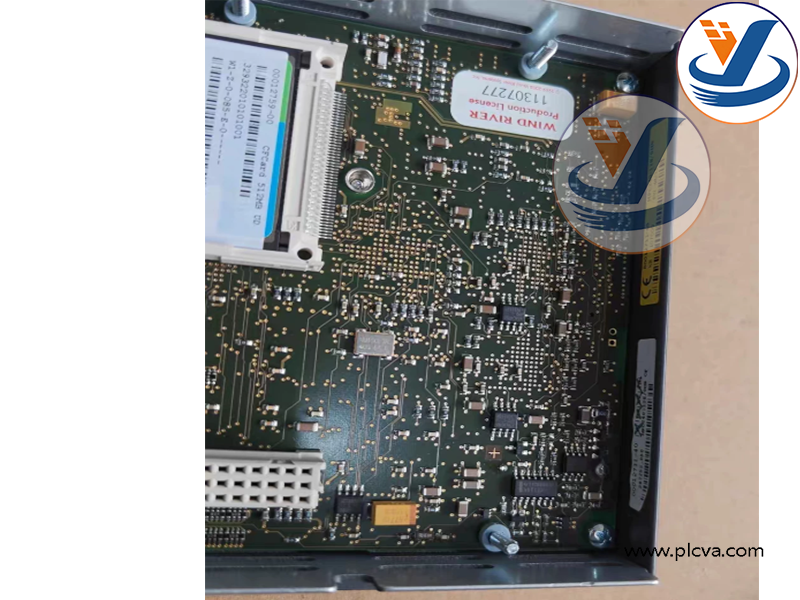

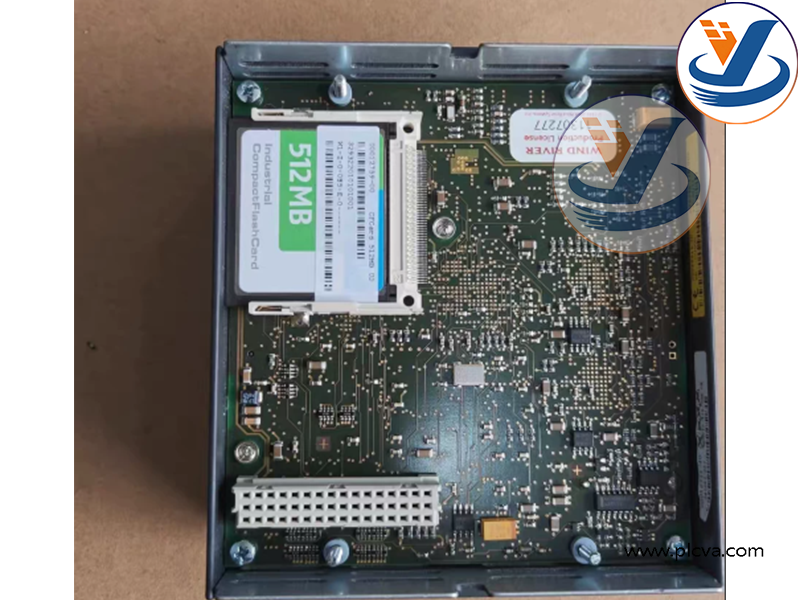

2. System memory management and data storage Equipped with SDRAM working memory and on‑board flash memory; supports CF‑card external storage for user programs, configuration parameters, process data and historical fault logs. Battery‑backed non‑volatile RAM preserves critical process data upon power‑off, avoiding parameter loss during power failure.
3. Multi‑interface industrial communication capability

Bachmann MPC240 Controller CPU Module

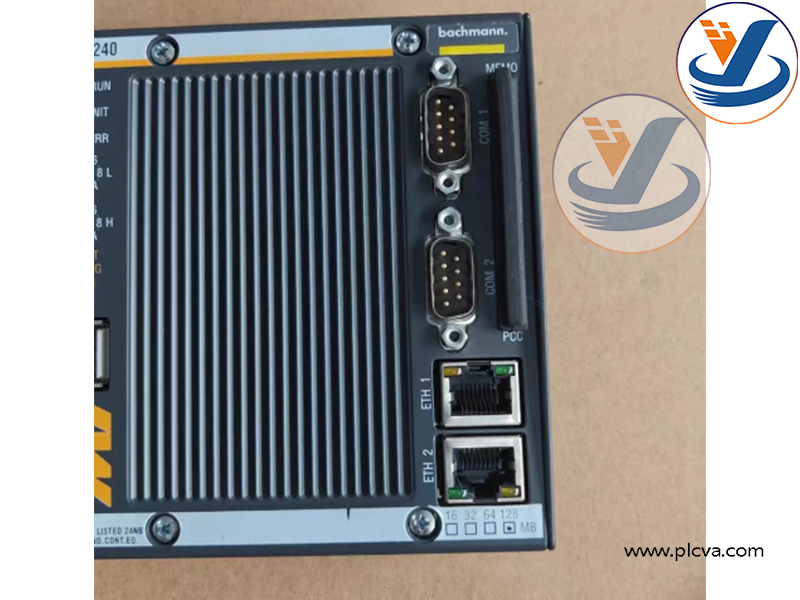

• Dual 10/100 Mbps Ethernet ports: support Modbus‑TCP, TCP/IP, web‑server for HMI, SCADA and upper‑system connection
• Dual serial ports (RS232 / RS422 / RS485): for serial device communication
• CAN bus interface: supports CANopen field‑bus protocol
• Internal M1 back‑plane bus: high‑speed data exchange with remote I/O modules and functional modules within M1 rack More products:plcva.com
• USB port: for local program download, commissioning and diagnostic access.

Bachmann MPC240 Controller CPU Module

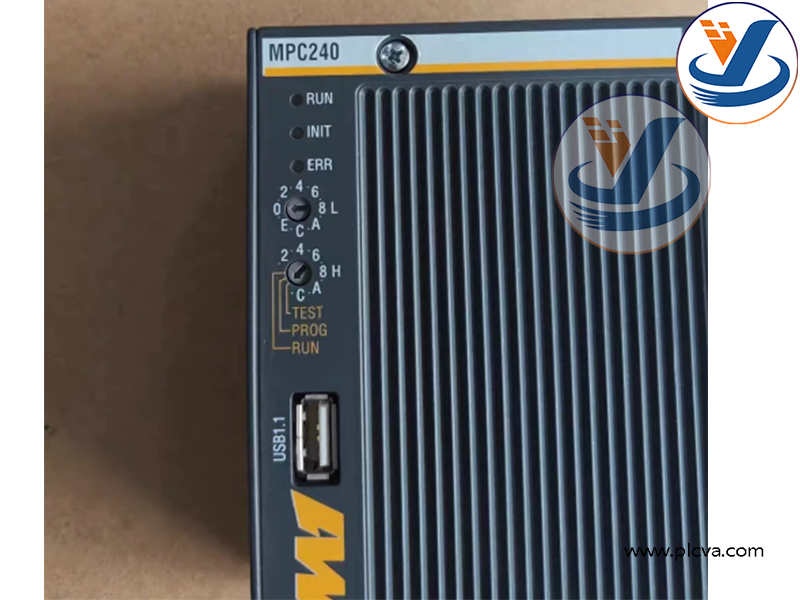

4. Hardware self‑diagnosis, watchdog and status indication Integrated hardware watchdog timer triggers automatic reset when software runtime exception occurs. Multi‑LED status indicators display RUN, INT, ERR and system state. Comprehensive self‑diagnosis covers CPU core, memory, power supply, bus and communication channel faults, generates alarm codes and event logs for maintenance troubleshooting. Rotary hex switches set CPU station address and operating modes (RUN / TEST / PROGRAM).
5. Modular system expansion and distributed control support Acts as master controller of M1 automation rack. Expands digital/analog I/O, counter, motion and special function modules through back‑plane bus. Supports distributed I/O configuration, multi‑controller synchronization, and can build redundant control architecture for high‑reliability requirements.
6. Harsh‑environment industrial hardware performance Compact DIN‑rail rack‑mount design. Standard operating temperature range: 0 °C ~ +60 °C; MPC240/W variant supports‑30 °C ~ +60 °C wide temperature range. High anti‑vibration and anti‑EMI capability, meets CE and UL industrial certification for cabinet‑installation in harsh workshop conditions.

Bachmann MPC240 Controller CPU Module

2. Applications & Purpose

MPC240 is the core CPU unit of Bachmann M1 automation platform, widely deployed in high‑reliability industrial automation, energy and marine automation scenarios.

Typical deployment scenarios:

• Wind‑turbine main control systems (one of Bachmann’s dominant application fields)
• Hydro‑power plant unit control and auxiliary equipment automation
• Marine and offshore power‑management & automation cabinets
• Industrial machinery, metallurgy and process‑control skid systems
• Retrofit and spare‑part replacement for existing M1‑based automation installations

Bachmann MPC240 Controller CPU Module

Core operational purposes:

• Serve as central computing core of M1 PLC system, execute user control programs and implement real‑time process automation, interlock and protection logic
• Collect field sensor signals via external I/O modules, compute control algorithms and output commands to actuators
• Realize bidirectional data exchange with HMI, SCADA, remote monitoring platform through multiple communication interfaces

Bachmann MPC240 Controller CPU Module

• Store process parameters and fault event records, support on‑site and remote system diagnosis
• Deliver stable real‑time control for wind power, hydropower and marine equipment; replace defective CPU module to restore full‑system operation for legacy Bachmann M1 automation systems.

Bachmann MPC240 Controller CPU Module
