Core Functions

1. High‑voltage galvanic isolation for ion‑beam analog signals: Creates electrical isolation barrier between high‑potential ion‑beam chamber side and low‑voltage tool control rack. Separates high‑voltage beam‑line circuit from sensitive low‑voltage control electronics, preventing high‑voltage surge damage to main controller cards.More products: www.plcva.com
2. Weak ion‑beam current signal amplification & conditioning: Receives tiny analog beam‑current measurement signals from Faraday cup / beam‑sensor inside ion implanter chamber. Amplifies, filters and converts micro‑level beam‑current signals into stable low‑level analog signals for backend acquisition circuit.

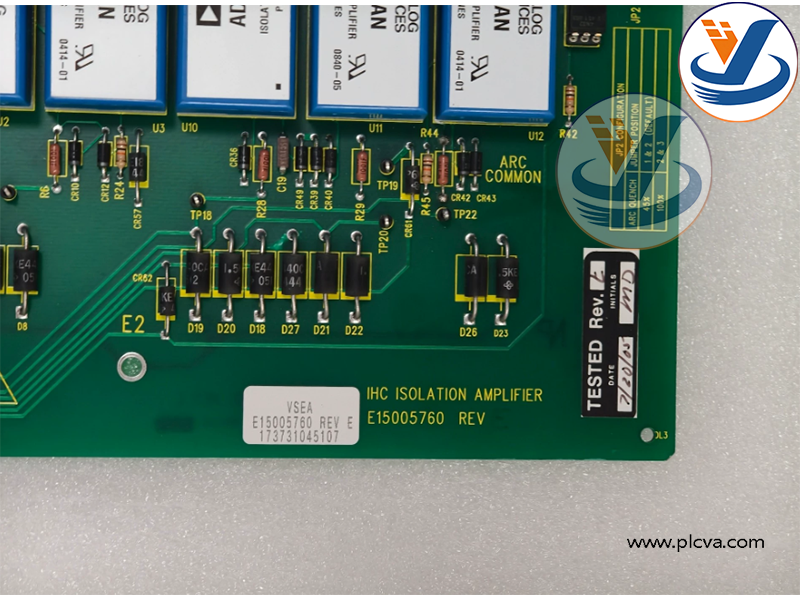

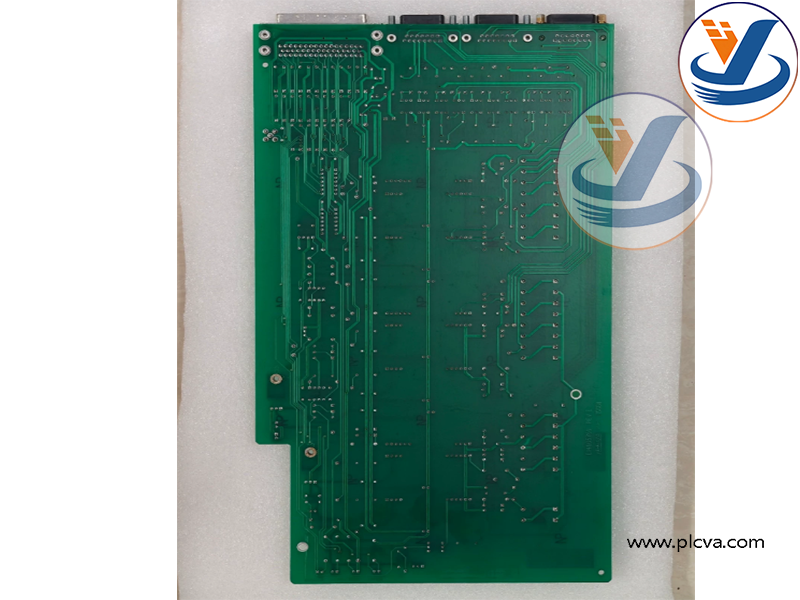

Varian E15005760 IHC Isolation Amplifier PCB Board

1. Common‑mode noise suppression: Rejects strong electromagnetic interference generated by ion source, high‑voltage power supply and plasma environment. Eliminates ground‑loop interference, guarantees accurate beam‑current measurement critical for implantation dose control.
2. Bidirectional isolated signal transmission: Transmits conditioned beam‑current measurement data to the tool main control CPU; receives reference voltage and control bias from control rack, delivers isolated bias signals back to ion‑beam sensing hardware.
3. On‑board hardware monitoring & fault reporting: Monitors board operating status, signal amplitude and isolation barrier health. Detects sensor disconnection, signal overflow and hardware failure; sends fault/alarm codes to equipment host for interlock trigger and maintenance troubleshooting.
4. Stable reference‑bias generation: Provides precise isolated reference bias for beam‑diagnostic sensors, ensuring long‑term measurement repeatability for ion implantation dose monitoring.

Varian E15005760 IHC Isolation Amplifier PCB Board

Applications & Use Cases

E15005760 is exclusive OEM spare‑part for Varian high‑current ion implanter semiconductor wafer doping equipment plcva.com.

Varian E15005760 IHC Isolation Amplifier PCB Board

1. Ion‑beam dose‑measurement front‑end signal processing: Installed inside ion implanter high‑current beam‑line subsystem. Processes Faraday‑cup beam‑current signals, which is the core foundation for accurate ion implantation dose calculation for silicon wafers. Precise dose control directly determines semiconductor device electrical performance.
2. High‑voltage safety isolation barrier: Physically isolates high‑voltage beam‑line potential from low‑voltage control rack, protects expensive control system hardware from high‑voltage breakdown risks during implanter operation.
3. Semiconductor ion‑implantation mass‑production: Supports high‑current implantation processes for logic‑chip, memory‑chip and power‑device wafers, ensures implantation‑dose repeatability and production yield in fab environment.
4. Equipment safety interlock participation: Reports beam‑measurement abnormal status to main system, participates in equipment interlock logic to avoid wafer scrap and beam‑line hardware damage.
5. Fab maintenance & spare‑part replacement: Used for field swap of defective IHC isolation amplifier boards on legacy Varian ion implanters. Extends service life of existing implantation tools without redesigning beam‑measurement subsystem.

Understand the lowest price, please contact via email: plcvarious@foxmail.com

More products: www.plcva.com

Many products are not yet on the shelves please contact us for more products.
