1.Main Functions

Hardware platform for ADGM1304 characterization: Carries soldered‑on ADGM1304 MEMS switch chip, provides complete peripheral power supply, biasing and matching circuit for chip performance verification.More products: www.plcva.com
Wide‑band RF signal routing: Equipped with 50‑Ω SMA RF connectors for common port RFC and four throw ports RF1‑RF4, routes DC‑14 GHz RF/microwave signals to vector network analyzer, signal generator or spectrum analyzer for measurement.

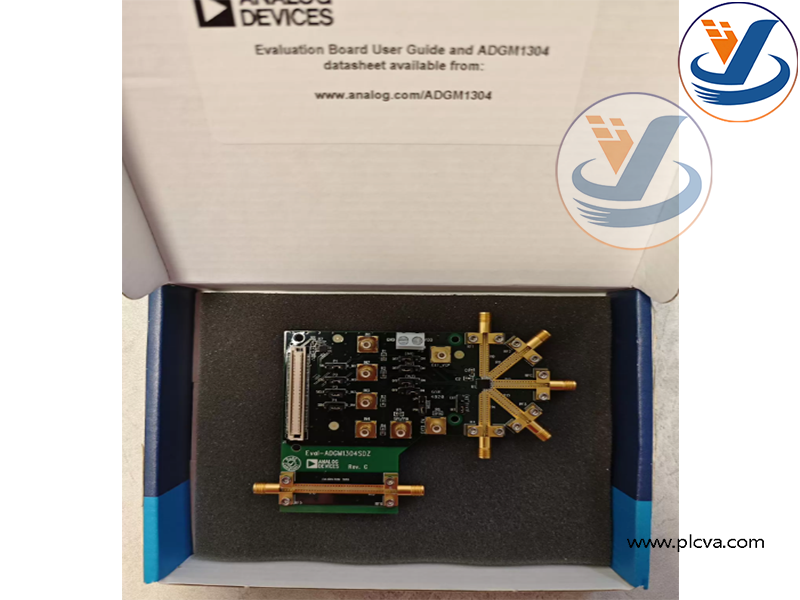

EVAL‑ADGM1304SDZ Analog Devices RF‑MEMS Switch Evaluation Board

Multi‑mode switch control interface: Supports both parallel LVTTL/CMOS logic control and SPI serial control for channel switching. SMB connectors bring out control signals for external controller connection; compatible with EVAL‑SDP‑CB1Z USB‑SDP board for PC‑based software control.
On‑board calibration reference trace: Integrates calibration transmission lines, facilitates fixture de‑embedding and system calibration for RF test instruments, reduces PCB trace parasitic influence on measurement resultsAnalog Dev….
Single 3.3 V DC power input: Provides regulated power for ADGM1304 and internal charge‑pump driver circuit; the on‑board charge‑pump generates high actuation voltage required for MEMS switch electrostatic pull‑in.
Independent channel switching: Enables independent on/off control of four throw channels; users test insertion loss, return loss, isolation, switching speed and linearity of each RF channel.
Rapid prototype verification: Exposes critical test points, simplifies hardware debugging, eliminates custom PCB design cycle during early‑stage product evaluation.

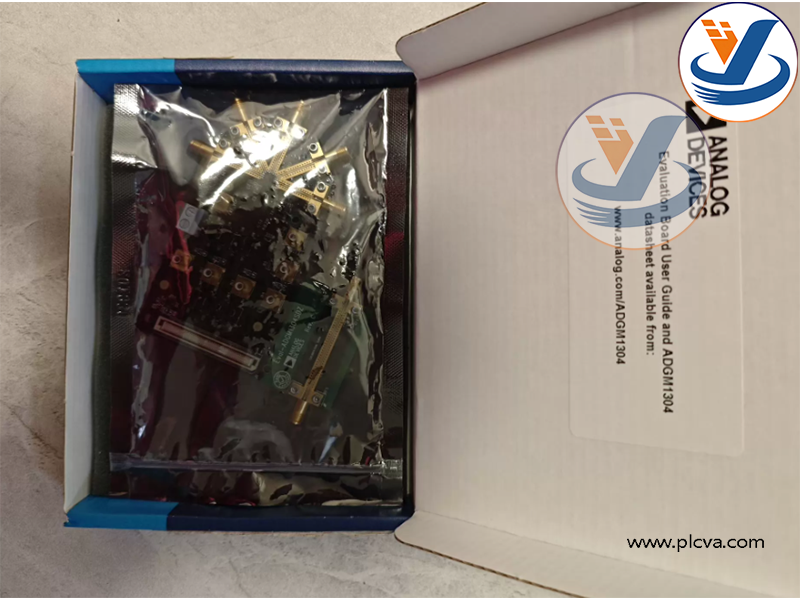

EVAL‑ADGM1304SDZ Analog Devices RF‑MEMS Switch Evaluation Board

RF component laboratory evaluation: Characterize electrical parameters of ADGM1304 MEMS switch, including insertion loss, port isolation, S‑parameters, power‑handling capability and switching timing performance.plcva.com
Automatic Test Equipment (ATE) development: Evaluate MEMS‑based signal‑switching paths for RF/mixed‑signal test systems; serves as reference design for probe boards and load‑boards, replaces traditional mechanical RF relays.
Wireless & microwave product R&D: Validate reconfigurable RF signal‑routing schemes for 5G, broadband radio and radar front‑end circuits.plcva.com
Circuit simulation‑to‑real‑world validation: Compare measured lab data with simulation models, verify S‑parameter simulation accuracy of ADGM1304.
Reference design learning: Used by RF engineers for schematic reference, studying layout rules of high‑frequency MEMS‑switch circuits before custom PCB design.
Educational & technical demonstration: Demo platform for MEMS RF‑switch technology training, technical seminars and product feasibility assessment.
