Main Functions

1. Core Logic Execution & Signal Processing This is the main control board for special‑purpose industrial equipment. It executes local control logic, collects analog and digital feedback signals from field sensors, completes signal conditioning, sampling and logic judgment, and outputs drive control instructions to actuators. BM022 is the follow‑up variant hardware of BM‑021 with partial circuit optimization.More products: www.plcva.com
2. Parameter Storage & Configuration Management On‑board non‑volatile memory stores equipment operating parameters, setting values, fault log data and firmware. Preserves critical configuration data after power‑off without frequent battery replacement.
3. Multi‑interface Signal Interaction Equipped with internal connectors for power supply board, I/O sub‑board and display panel. Realizes data exchange with peripheral sub‑modules; supports serial communication to exchange status data with upper‑level PLC or host monitoring system.
4. Hardware Protection & Fault Diagnosis Integrates surge suppression, over‑voltage and over‑current protection circuits. Detects hardware abnormality, signal loss and operating fault. Generates fault status signals and alarm indications for on‑site maintenance troubleshooting.
5. Industrial‑grade embedded PCB assembly Installed inside equipment main housing, powered by matched internal power unit. Cannot run independently; it must work together with complete set of equipment hardware including power board, sensor and actuators.

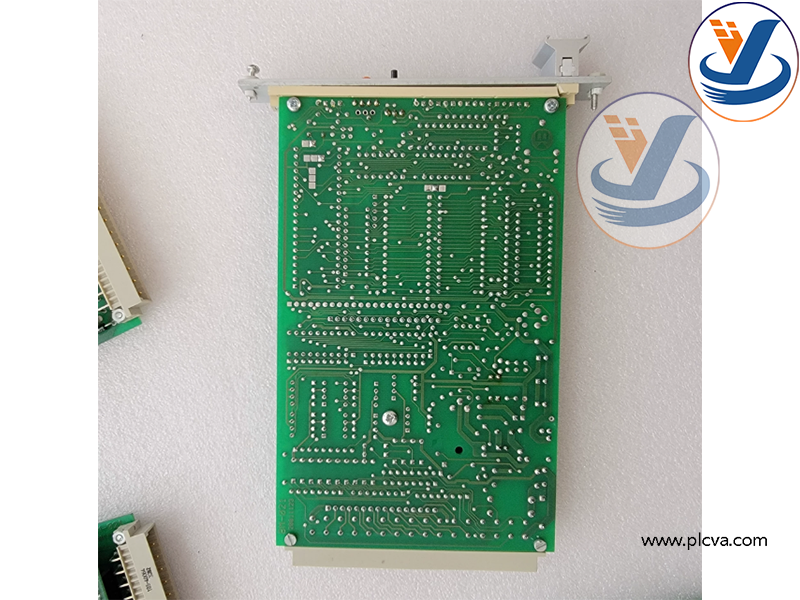

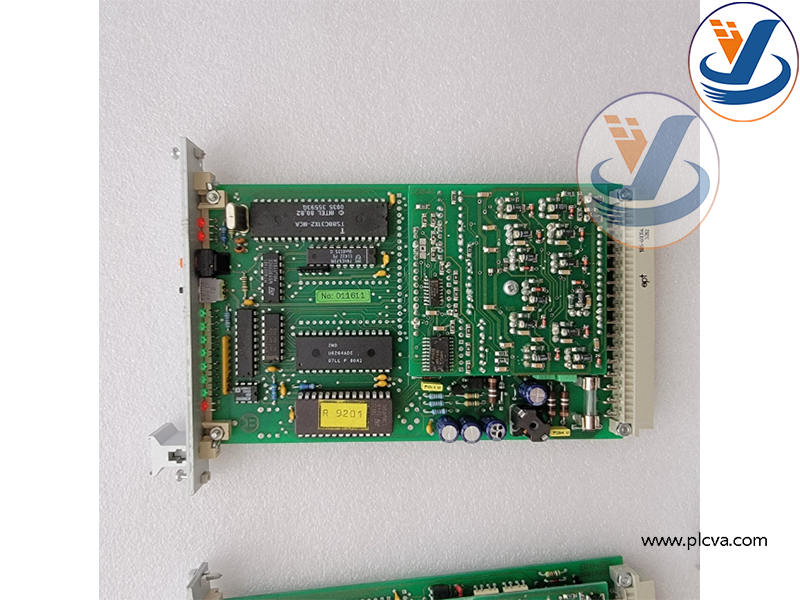

R902 BM‑021, BM022 Industrial Control Printed‑Circuit‑Board

Note: R902 BM‑021 / BM022 is EOL (End‑of‑Life) legacy aftermarket spare part. Original mass‑production has been discontinued. BM022 is the substitute variant of BM‑021; partial firmware version matching is required during replacement. No independent operation supported.

R902 BM‑021, BM022 Industrial Control Printed‑Circuit‑Board

Applications

This control board is dedicated replacement spare component for special‑purpose industrial automation equipment:

• Special‑purpose production machinery: Core control hardware for processing equipment, test‑bench apparatus and customized automation devices.
• Industrial equipment retrofit & maintenance: Direct replacement for defective original BM‑021 / BM022 control board, restores equipment logic control, signal acquisition and peripheral communication functions.
• Discrete manufacturing site: Realizes local closed‑loop control, status monitoring and fault alarm for stand‑alone industrial machines.
• Auxiliary equipment of production line: Executes local sequence control, sensor signal processing and actuator driving for auxiliary process units.

R902 BM‑021, BM022 Industrial Control Printed‑Circuit‑Board
