Main Functions

Stable DC power supply: Accepts universal AC input 85‑265 VAC, converts to regulated 24 VDC output, rated output current 2.5 A, provides power for LLMUX, SDI, SI field termination assemblies within TDC‑3000 system.More products: www.plcva.com
Fieldbus termination power feeding: Supplies operating power for fieldbus terminators, ensures correct signal termination and impedance matching for low‑level multiplexer signal links, avoids signal distortion and communication dropout.
Isolation & noise suppression: Built‑in filtering circuit, suppresses industrial electromagnetic interference, isolates AC input side and DC output side, improves stability of weak thermocouple / RTD measuring loop.
Hardware self‑diagnosis: Detects input power loss, output over‑load and internal fault; feeds fault status back to DCS system for alarm prompting.
Single‑slot rack‑mount structure: Installs in TDC‑3000 I/O rack, supports hot‑swap replacement during system running without shutting down the whole cabinet.
Terminal signal conditioning auxiliary: Cooperates with field termination assemblies to complete signal conditioning for multi‑channel low‑level analog inputs.

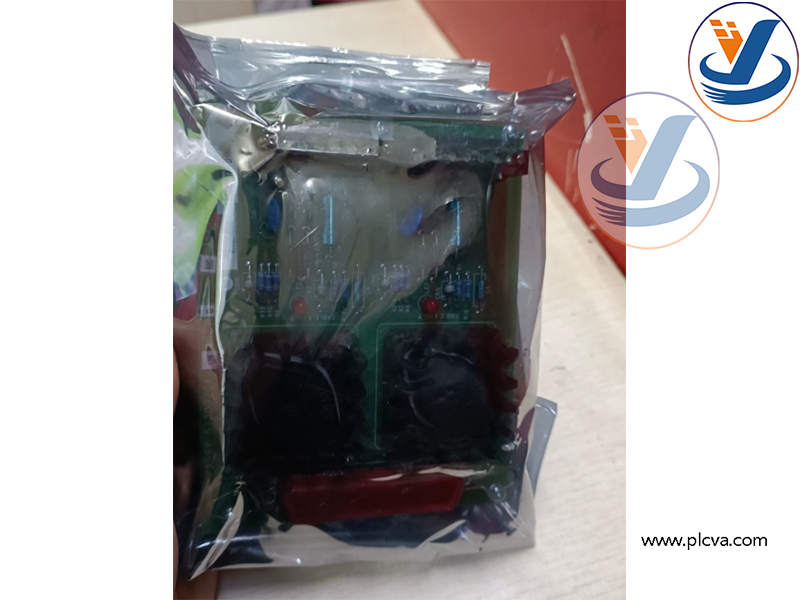

Honeywell MC‑TLPA02 Power Adapter Module, Part No. 51309204‑175

Applicable system: Honeywell legacy TDC‑3000 DCS control rack; mainly matches LLMUX low‑level analog multiplexer modules, SDI and SI I/O assemblies.
Measuring signal types: Thermocouple, RTD and other millivolt‑level weak field sensor signals.
Target industries: Petrochemical, refinery, thermal power plant, chemical process plant, paper‑making and heavy‑process industries.
Purpose: Provide reliable field‑side power supply and signal termination for temperature measurement I/O loops of legacy DCS systems; guarantee accurate collection of large‑volume temperature points; serve as critical spare part for maintaining running old‑generation Honeywell DCS installations, avoid system shutdown caused by power failure of I/O termination units.
