Main Functions

AC‑side and DC‑side voltage & current measurement: Collect and scale main‑circuit voltage and current signals from power‑section transformers. Convert high‑power‑loop analog quantities into low‑level measuring signals for the main control board to execute closed‑loop speed‑and‑current regulation of DC motors.More products: www.plcva.com
Converter temperature monitoring: Process PTC thermal‑sensor signals from thyristor heatsinks. Detect over‑temperature conditions of power semiconductors and feed fault information back to drive control logic for protection trips.plcva.com

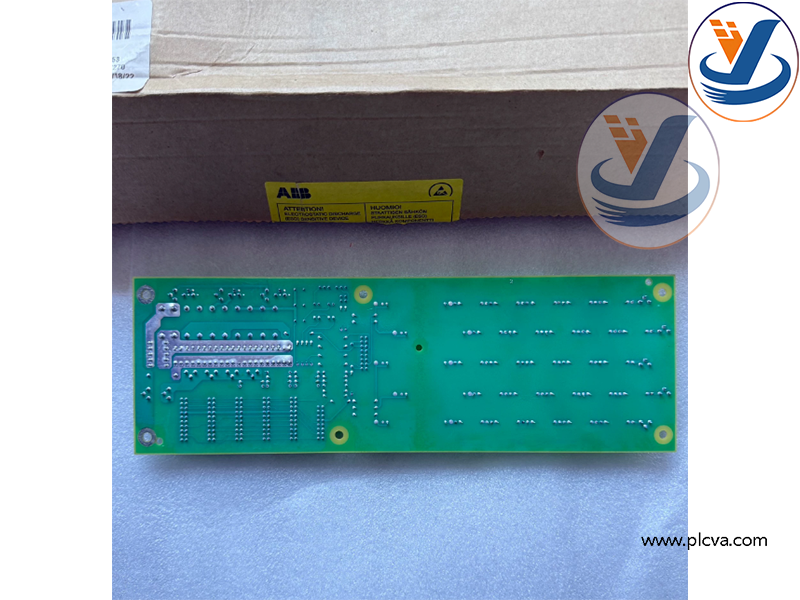

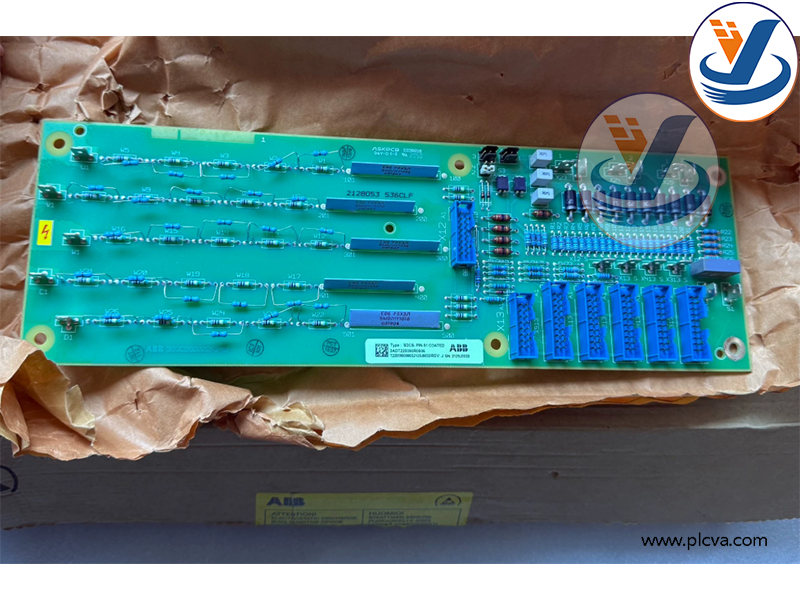

ABB SDCS‑PIN‑51 (3ADT220090R0006)

Firing‑pulse signal sorting and distribution: Receive thyristor firing‑pulse commands from the main controller, distribute and route trigger signals to subsequent pulse‑transformer boards, ensuring phase‑synchronized triggering for 6‑pulse thyristor rectifier bridges.
Galvanic isolation and surge suppression: Provide electrical isolation between low‑voltage control domain and high‑voltage power circuit. Integrate snubber and filter circuits to suppress voltage spikes and electromagnetic interference generated by thyristor switching actions, protecting control‑side hardware from power‑loop disturbances.
Hardware‑configuration jumper setting: Factory‑configured jumpers implement hardware scaling matching for different drive power‑frame ratings, adapting to various current‑and‑voltage‑level converter units without extra software adjustment.
Drive‑internal fault detection: Monitor measuring‑loop anomalies, signal‑channel failures and power‑section abnormal states. Transmit fault status codes to the main control board for alarm output and drive‑trip execution.plcva.com
Conformal‑coated industrial hardware: PCB conformal coating improves reliability under high‑humidity, dusty and corrosive workshop‑cabinet environments.
Internal rack‑mount plug‑in structure: Installed inside DC‑drive power‑unit cabinet; serves as a replaceable spare‑part for on‑site maintenance of existing drive equipment.

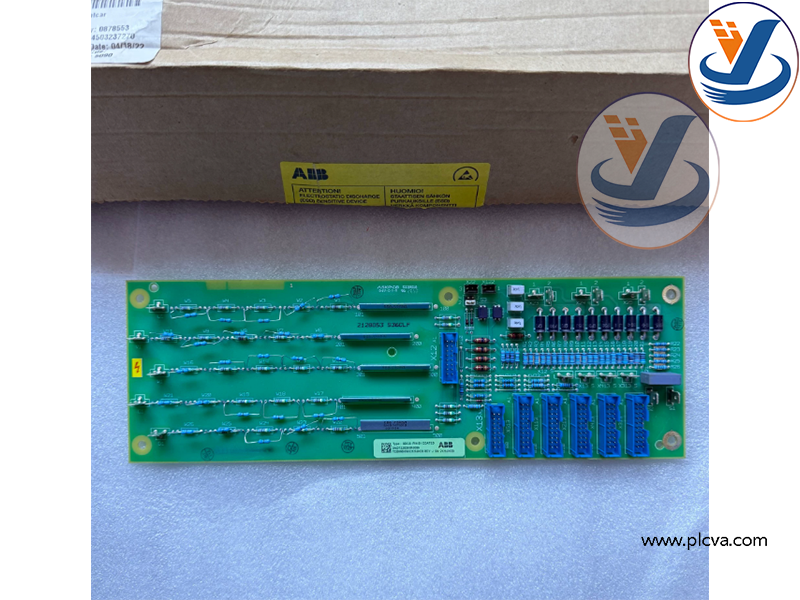

ABB SDCS‑PIN‑51 (3ADT220090R0006)

Matching equipment: ABB DCS500B, DCS600, DCS800 high‑power thyristor‑based DC variable‑speed drives.
Driven field equipment: Heavy‑duty DC motors for metallurgical rolling mills, mine hoists, port cranes, paper‑machine winders, heavy‑duty machine‑tool spindles and extrusion machinery.
Target industries: Metallurgy, mining, port logistics, pulp‑and‑paper, heavy‑manufacturing and other heavy‑process‑industry sites.
Purpose: Serve as critical measurement‑and‑pulse‑conditioning interface board inside high‑power DC drives. Deliver accurate voltage‑current feedback and correctly distribute thyristor firing pulses to guarantee stable current‑and‑speed closed‑loop control for large DC motors. It is an essential obsolete spare‑part for maintaining existing ABB DC‑drive installations and preventing unplanned production outages.
