Switching Amplifier DN0210 (N200/SA‑1 110‑240 VAC)
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
1. Main Functions
- Signal conditioning & amplification for PNP / NPN sensor pulse signals, supports IEC 61131‑2 type‑2 sensor input.plcva.com
- Built‑in wide‑range AC power supply (110‑240 VAC 50/60 Hz), provides isolated 24 VDC SELV auxiliary power for field sensors.
- Galvanically‑isolated single‑channel relay output; relay contact rating: 4 A resistive load (240 VAC /24 VDC).
- Accepts sensor input frequency up to 10 Hz, 50 % duty cycle.
- DIN‑rail compact housing with plug‑in screw terminals; multi‑LED status indication (power, signal, fault).plcva.com
- Reinforced insulation meets EN 61010 standard for industrial control cabinet installation.

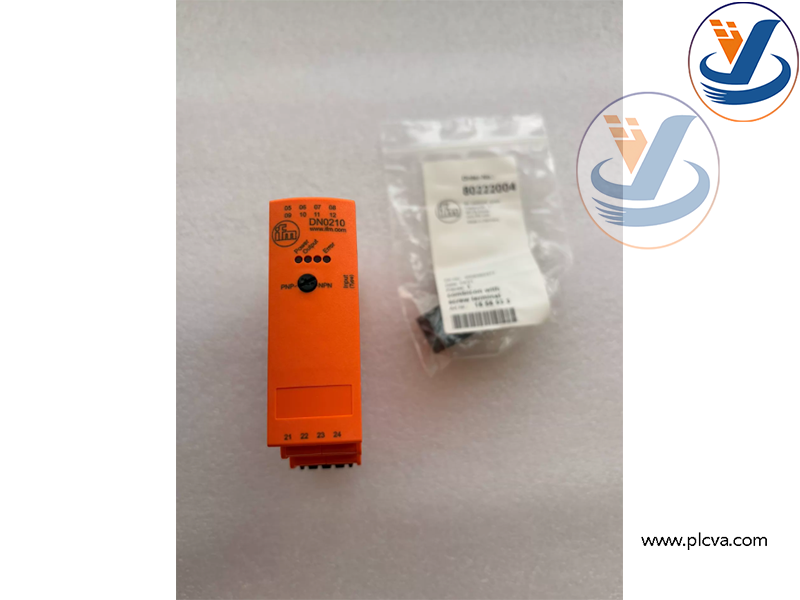

Switching Amplifier DN0210
2. Primary Applications
- Industrial cabinet signal conversion for proximity sensors, pulse‑type field sensors.
- Isolated signal switching between low‑voltage sensor circuits and high‑voltage AC control loops.
- Machine‑building, packaging equipment, conveyor systems, automation assembly lines.
- Sensor power supply + signal evaluation within one DIN‑rail module; converts weak field‑sensor signals into reliable relay contact signals for PLC, contactors or alarm circuits.
Switching Amplifier DN0210
Switching Amplifier DN0210
