1.Main Functions

3FE25772AA

1. Bi‑directional single‑fiber optical signal conversion, converts electrical Gigabit Ethernet signals to optical signals and vice‑versa over one single‑mode fiber strand.
2. Data rate: 1.25 Gbps for 1000BASE‑BX‑U Gigabit Ethernet; simplex LC connector, max transmission distance 10 km over SMF.plcva.com
3. Supports DOM / DDM digital optical monitoring, real‑time reading of transceiver temperature, laser bias current, transmit & receive optical power.
4. Hot‑swappable SFP MSA‑compliant form factor; must pair with its complementary BX‑D transceiver on the opposite end for bidirectional communication.
5. Industrial temperature grade:‑40 ℃ ~ +85 ℃, works for harsh outdoor cabinet deployment.

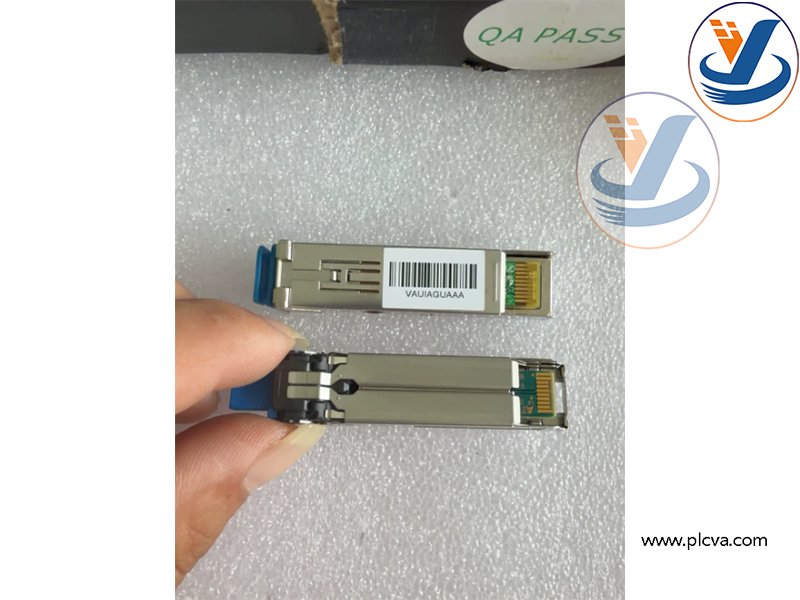

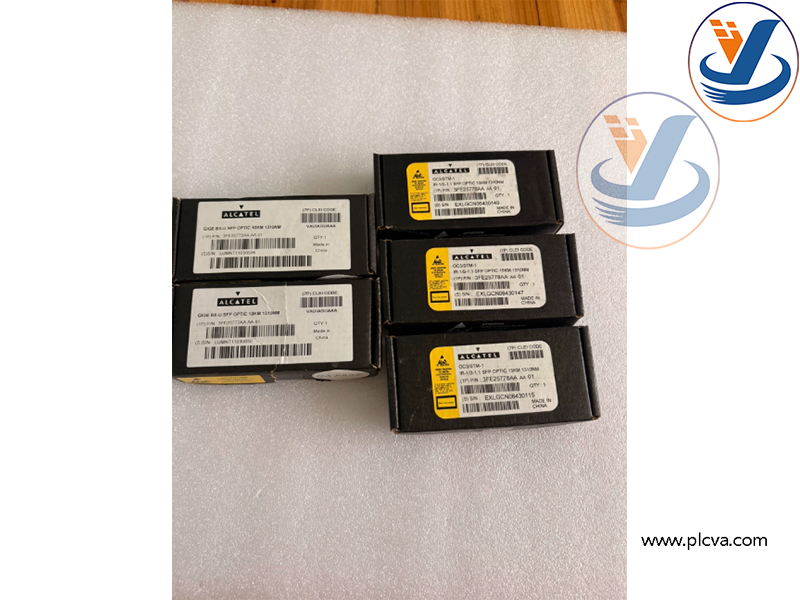

Alcatel‑Lucent SFP Modules 3FE25772AA & 3FE25778AA

3FE25778AA

1. Electro‑optical signal conversion for Fast‑Ethernet / STM‑1, converts electrical 100 Mbps‑155 Mbps signals into optical signals over duplex single‑mode fiber.
2. Operates at 1310 nm FP laser transmitter and PIN photodiode receiver; duplex LC interface, reach up to 10‑15 km on SMF.plcva.com
3. Built‑in DDM / DOM diagnostic function for real‑time optical‑parameter monitoring and fault pre‑warning.
4. Hot‑pluggable SFP MSA standard package; operating temperature 0 ℃ ~ +70 ℃ for standard telecom‑room environment.

Alcatel‑Lucent SFP Modules 3FE25772AA & 3FE25778AA

2. Primary Applications

3FE25772AA

• Telecom access network, GPON / Ethernet service deployment, using single‑fiber bidirectional link to save fiber‑cable resources.
• Enterprise campus backbone, inter‑building gigabit fiber links, remote industrial site network connection.
• Alcatel‑Lucent / Nokia optical switches, OLT and aggregation equipment; used for network expansion and spare‑part replacement.
• Metropolitan area network point‑to‑point gigabit optical connection, scenarios with limited fiber‑cable resources.

3FE25778AA

• 100Mbps fast‑Ethernet fiber link for telecom transmission equipment, STM‑1 / SDH 155‑Mbps optical access service.
• Legacy carrier‑grade access network, enterprise remote‑site fast‑ethernet interconnection.
• Deployed on Alcatel‑Lucent / Nokia service‑routers and switches for 100BASE‑LX single‑mode fiber communication.
• Maintenance spare‑parts for existing running communication infrastructure.

Alcatel‑Lucent SFP Modules 3FE25772AA & 3FE25778AA
