1.Main Functions

High‑speed acquisition and processing of analog and digital field signals for generator excitation control system; collects generator voltage, current, rotor status and switching‑value feedback signals.

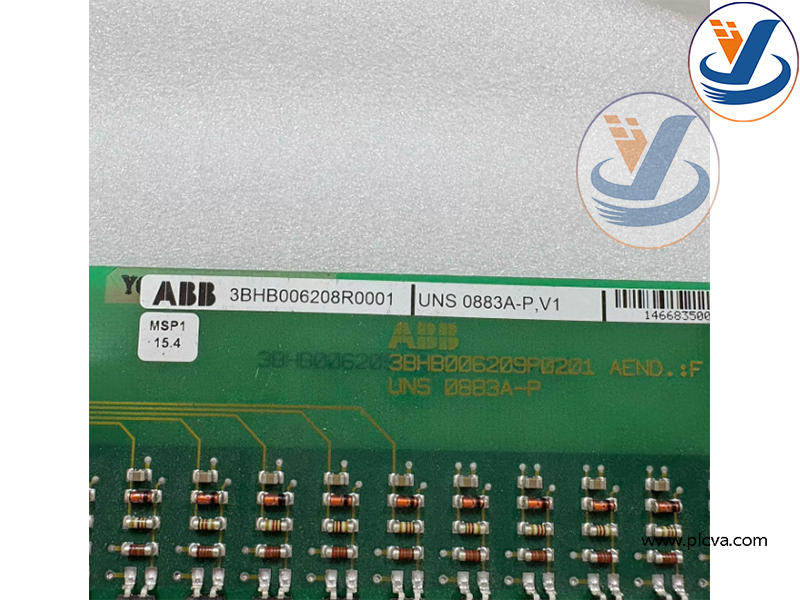

ABB 3BHB006208R0001 Control Board

Acts as intermediate signal interface between UNITROL main controller and on‑site excitation field devices, converts raw field signals into bus‑compatible internal data.
Provides multi‑channel isolated input & output loops; realizes excitation‑system interlock logic, protection trigger and external device driving.
Supports high‑speed backplane bus communication, exchanges real‑time operating data, fault status and alarm events with the main excitation CPU board.
On‑board non‑volatile memory stores configuration parameters, fault logs and historical event records for excitation equipment.
Built‑in hardware fault self‑diagnosis; detects board failure, signal over‑range and channel abnormality, and uploads fault codes to upper system.
Designed for cabinet chassis installation; works under‑20 ℃ ~ +70 ℃ industrial temperature range, satisfies anti‑interference requirements of power‑plant environment.

ABB 3BHB006208R0001 Control Board

Core internal I/O control board for ABB UNITROL series generator excitation systems, deployed in thermal power, hydropower and nuclear power generator sets.
Performs signal sampling, interlock control and protection signal transmission for generator excitation cabinets in power‑generation plants.plcva.com
Widely used for maintenance replacement of existing running excitation equipment; this is a legacy component and not recommended for new‑project construction.
Cooperates with other UNITROL series boards to complete generator excitation regulation, limit protection and system‑state monitoring.
Cannot operate independently; must be installed inside the matching UNITROL rack together with power supply unit and main CPU board.
