8505‑BI‑MB Modbus Bus Interface Module , MTL8000 Series Intrinsically‑Safe System Communication Gateway Module
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Main Functions
- Acts as core bus interface gateway for MTL8000 rack‑mount intrinsically‑safe I/O system, realizes protocol conversion between internal Railbus backplane bus and Modbus RTU communication protocolEaton.
- Polls data from all I/O modules on the rack backplane, packs analog and discrete input/output data into standard Modbus register mapping for upper‑level host access.
- Supports Modbus RTU master‑slave communication, maximum baud rate up to 115 kbit/s; provides dual‑LAN communication ports for redundant network connection to improve system communication reliabilityEaton.
- Provides galvanic isolation between hazardous‑area field‑side intrinsically‑safe circuits and control‑room host system, complies with ATEX, FM, CSA hazardous‑area safety certification requirements.
- Multi‑LED status indicators on front panel: power, fault, LAN channel status, Railbus communication status, convenient for on‑site hardware diagnosis and troubleshooting.
- Built‑in self‑diagnosis function, monitors backplane bus failure, communication channel abnormality and module hardware fault; uploads fault status to upper host via Modbus.
- Gets power supply from MTL8000 rack Railbus backplane, operating temperature range:‑40 ℃ ~ +70 ℃, adapts to harsh industrial cabinet environment.

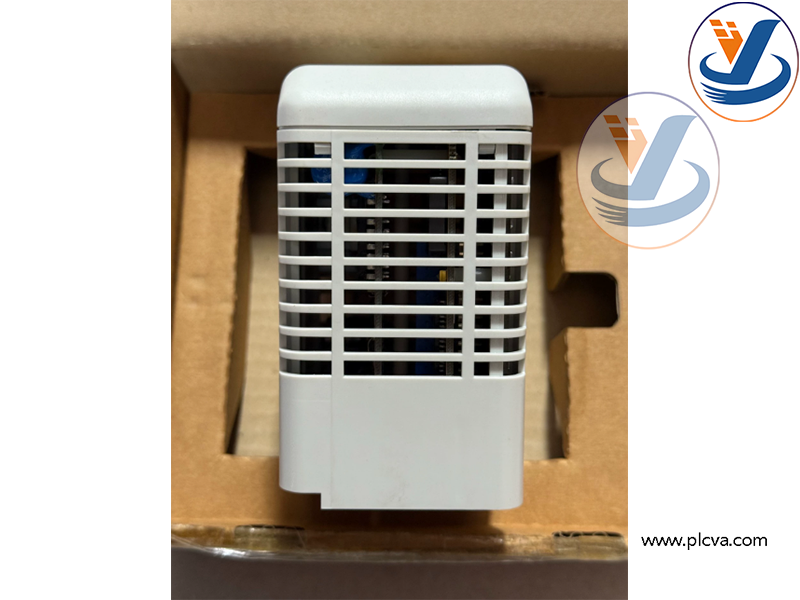

MTL 8505‑BI‑MB Module
3. Primary Applications
- Core communication interface component of MTL8000 intrinsically‑safe distributed I/O system, widely deployed in petrochemical, oil‑gas, refinery, offshore platform and chemical plant hazardous‑area control cabinets.
- Connects MTL8000 IS‑I/O rack with PLC, DCS, SCADA host system through Modbus RTU, realizes remote reading and writing of field sensor, switch and actuator signal data in Zone1 / Zone2 hazardous locations.
- Realizes data interaction between intrinsically‑safe field instruments and upper‑level control system; reduces additional barrier equipment and saves cabinet installation space.
- Cannot work independently; must be installed in matching MTL8000 rack, cooperate with backplane and various I/O modules to complete system functions.
- Used as spare‑part maintenance replacement for existing running MTL8000 automation systems.

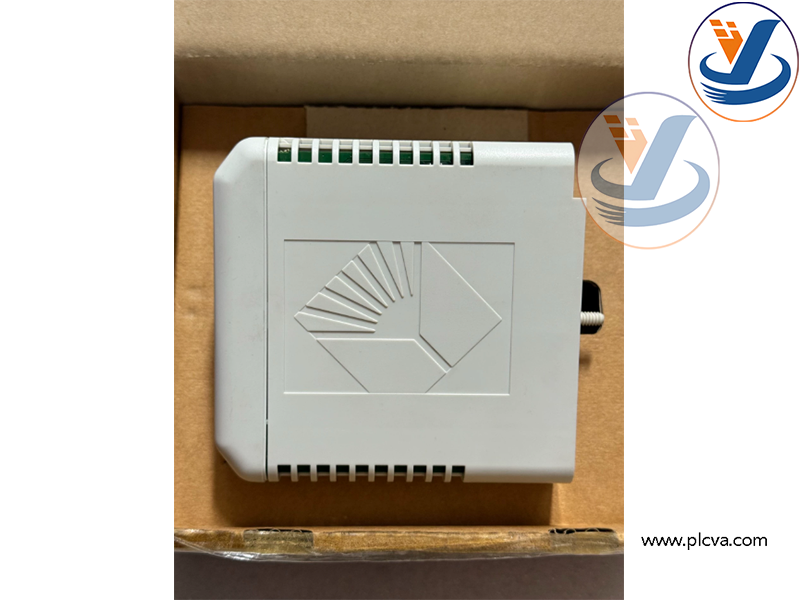

MTL 8505‑BI‑MB Module
| Understand the lowest price, please contact via email: plcvarious@foxmail.com |
| More products: www.plcva.com |
| Many products are not yet on the shelves please contact us for more products. |
