Main Function

Closed‑loop stepper motion control with built‑in battery‑free mechanical absolute encoder. It retains multi‑turn absolute position information after power‑off, eliminating homing operation upon power‑on without battery backup.
42 mm square frame, rated holding torque 1.0 N·m; realizes high‑accuracy positioning, stop position accuracy ±4 arc‑minutes (±0.067°).

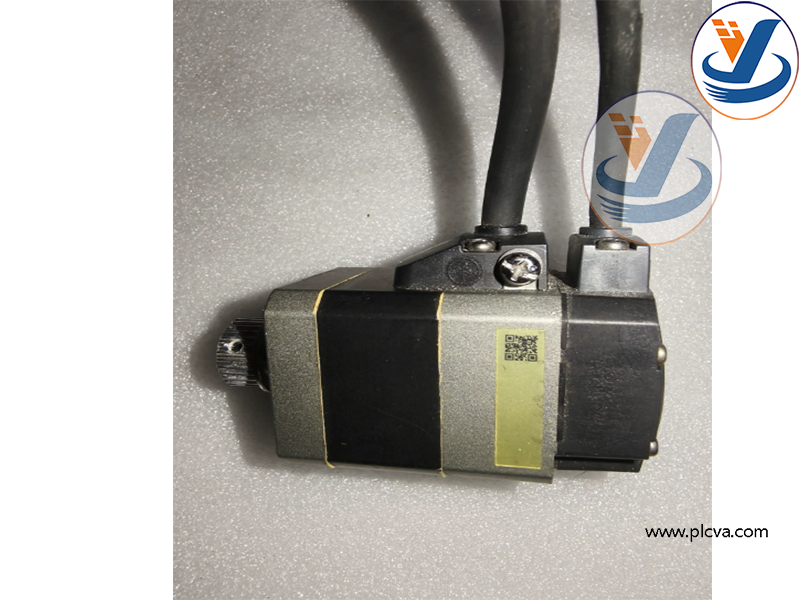

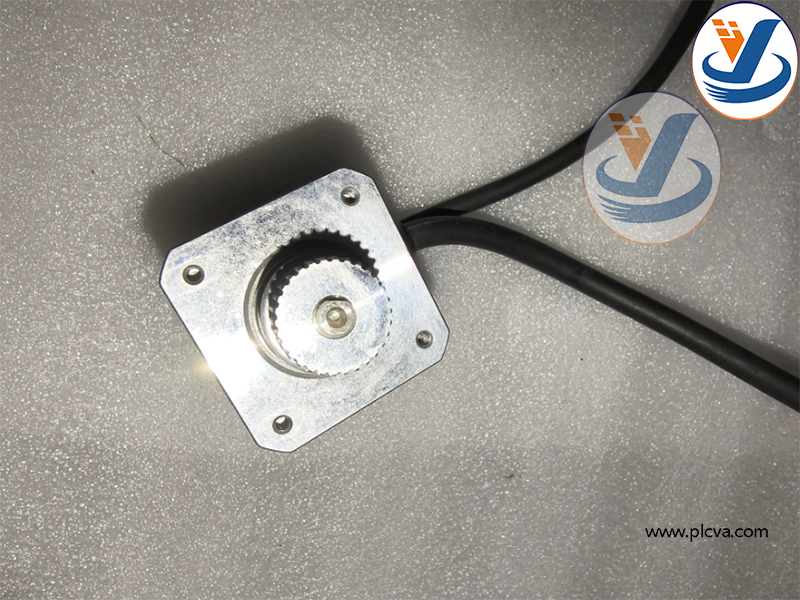

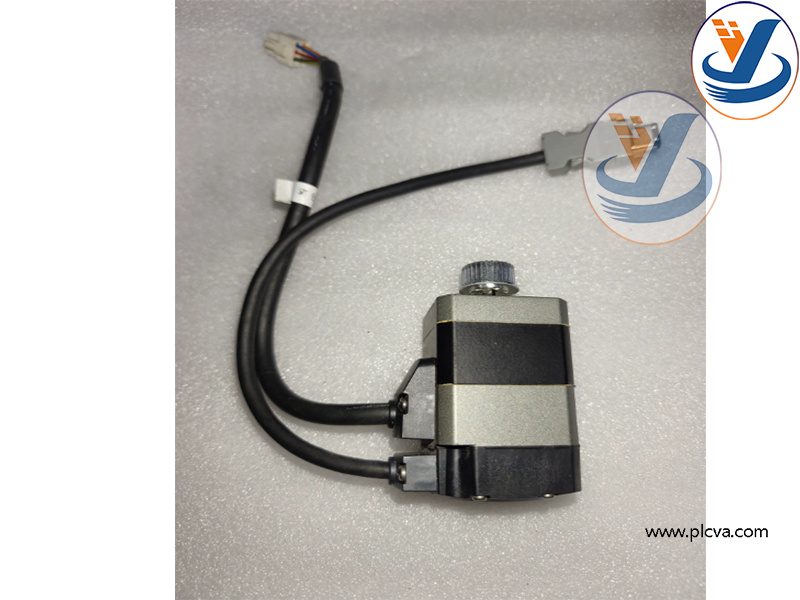

Oriental Motor AZM46AK αSTEP Battery‑Free Absolute Encoder Closed‑Loop Stepper Motor

Real‑time position feedback to matched AZD‑K driver, detects step loss automatically and performs position correction; greatly reduces motor heat generation compared with open‑loop stepper motors.
Supports multi‑turn absolute position recording up to ±900 rotations; delivers real‑time motor status including temperature, load ratio and accumulated operating distance to driver and upper‑level controller.plcva.com
Works with driver to support pulse‑command input, RS‑485 serial control; configurable via MEXE02 software for positioning parameters, acceleration‑deceleration curves and alarm thresholds.
IP20 protection grade; provides alarm signal output for overload, over‑temperature and encoder faults for system diagnosis.

Oriental Motor AZM46AK αSTEP Battery‑Free Absolute Encoder Closed‑Loop Stepper Motor

High‑precision positioning motor for automated machinery, paired with dedicated AZD‑K driver.
Typical equipment: pick‑and‑place mechanisms, dispensing equipment, packaging machines, semiconductor handling equipment, lab automation instruments, small‑size robotic actuators, conveyor positioning systems.plcva.com
Applied in 3‑axis motion platforms, automatic assembly stations and inspection equipment. Eliminates homing procedure after power failure, improves production efficiency and positioning repeatability.
Widely used in electronics manufacturing, food‑packaging, medical‑automation and general factory automation industries.
