1.Product Name

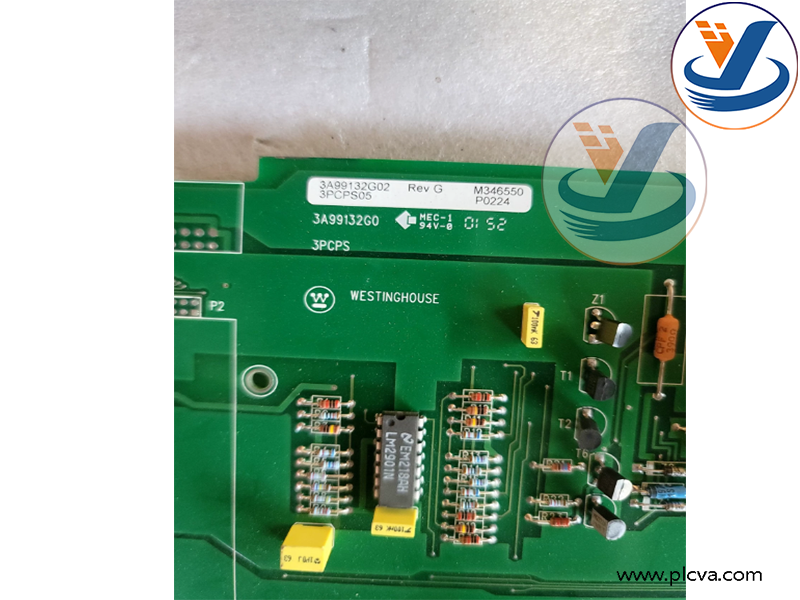

• Full Name: WESTINGHOUSE 3A99132G02, 3PCPS05 Revision G Power Control Printed Circuit Board Assembly
• Short Name: WESTINGHOUSE 3A99132G02 3PCPS05 Rev.G Power Control Board
• Part Number Breakdown:
  • 3A99132G02: Unique factory part number of this PCBA
  • 3PCPS05: System module type code (Power Control Module)
  • Rev.G: Hardware revision version G, indicates the updated hardware design iteration

WESTINGHOUSE 3A99132G02, 3PCPS05 Rev.G Power Control Board

2. Core Functions

1. AC-DC Power Conversion & Regulated Power Distribution Accepts AC input from the rack power source, converts and stabilizes multi-channel DC output. It supplies clean, low-ripple regulated power to the main controller, I/O cards and communication boards inside the DCS rack, with galvanic isolation between input and output circuits.
2. Multi-dimensional Electrical Protection Integrates overvoltage, undervoltage, overcurrent, overload, short-circuit and surge protection circuits. It automatically cuts off power or triggers alarm once abnormal electrical conditions are detected to protect the whole DCS rack from damage.
3. Power Status Monitoring & On-board Diagnostics Continuously monitors input voltage, output rail voltage and load current. LED status indicators show normal operation, power loss or fault status. It reports power failure / fault signals to the DCS main controller for system alarm logging.
4. Power Sequence Control Manages the power-up and power-down sequence of all modules in the control cabinet. It ensures the controller and I/O cards are energized in the correct order to avoid data corruption and hardware damage during startup and shutdown.www.plcva.com
5. EMC Noise Suppression Built-in EMI filter circuits to suppress electromagnetic interference in heavy industrial environments, maintaining stable power quality for sensitive DCS electronic components.

WESTINGHOUSE 3A99132G02, 3PCPS05 Rev.G Power Control Board

3. Purpose & Applications

Purpose

This power control board is a critical rack-mounted spare component for Westinghouse Ovation / WDPF Distributed Control System (DCS). It serves as the dedicated power supply and power management unit for the DCS control rack, delivering stable, protected power to all internal control modules and guaranteeing continuous and reliable operation of the plant control system.www.plcva.com

Typical Application Scenarios

• Thermal power plant boiler & turbine DCS control racks
• Power generation auxiliary control systems
• Oil & gas processing plant distributed control systems
• Petrochemical process control cabinets
• Water treatment and pipeline automation control systems
• Used as OEM original assembly part for new DCS cabinet build, or MRO replacement spare for on-site maintenance, retrofit and outage repair of existing Westinghouse DCS systems

Understand the lowest price, please contact via email: plcvarious@foxmail.com

More products: www.plcva.com

Many products are not yet on the shelves please contact us for more products.
