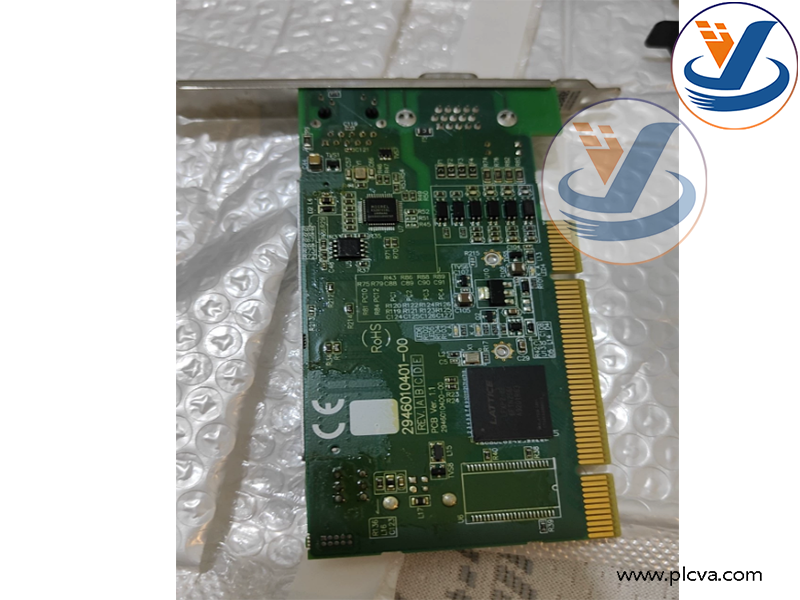

Delta PCI-L221-P1D0 EtherCAT Bus Motion Control Card
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
1.Core Functions
- EtherCAT Master Host function: Acts as EtherCAT bus master, communicates with EtherCAT slave devices (servo drives, remote I/O modules) via RJ45 CAT5e cable at 100Mbps, max cable length 100m between nodes.plcva.com
- Multi-axis synchronous motion control: Support up to 64 slave stations, maximum 32 synchronized motion axes. Real-time control cycle: 0.5ms /1ms for high precision synchronous operation.
- Rich motion algorithm library: Point-to-point positioning, speed control, torque control, linear & circular interpolation, gantry synchronization, electronic cam, flying shear, homing (35+ homing modes).
- Onboard isolated digital I/O: 8-CH isolated digital input (24VDC, sink/source), 4-CH isolated digital output (24VDC sink type), for emergency stop, sensor signal and interlock logic.
- Software SDK & driver: Provide Windows driver and motion API library, support user secondary development for PC-based automation programs; compatible with standard EtherCAT ESI slave description files for automatic slave identification.
- Distributed system expansion: Daisy-chain or ring EtherCAT topology; multiple PCI-L221 cards can be installed in one IPC to expand total controlled axes and stations.
Delta PCI-L221-P1D0 EtherCAT Bus Motion Control Card
2. Applications & Usage
- Automated assembly equipment: 3C product assembly machines, lock screw machines, dispensing machines, pick & place manipulators.www.plcva.com
- Packaging & printing machinery: Conveyor synchronization, flying cut, multi-axis registration control for printing and packaging lines.
- Laser processing equipment: Laser cutting, laser marking, engraving machines requiring high-speed interpolation and position synchronization.
- Testing & inspection machines: Automated optical inspection (AOI), machine vision platforms, coordinate measuring equipment, often paired with image grabber cards.
- Material handling & gantry systems: Gantry robots, stacking machines, automated material transfer lines.
- Semiconductor & precision electronics manufacturing: Wafer handling, component sorting and precision positioning stations.
Delta PCI-L221-P1D0 EtherCAT Bus Motion Control Card
