1.Core Functions

This is a touch-screen operator panel that connects to PLCs, collects process data and provides visualisation and manual operation for automation systems.www.plcva.com

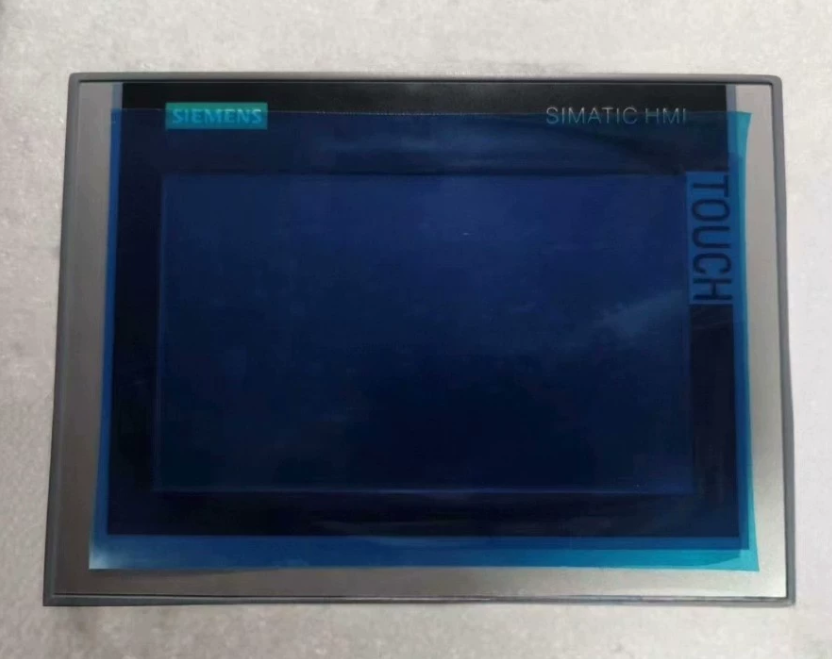

1. Real-time process visualization 7″ widescreen TFT display (800 × 480 resolution, 16 million colors). It shows live values, bar graphs, trend curves, motor status, valve status and equipment schematic screens.
2. Operator touch control On-screen touch buttons allow operators to start / stop equipment, adjust setpoints, input recipe parameters, trigger manual operations. Virtual on-screen numeric & alphanumeric keyboard is supported.
3. Multi-protocol communication with controllers Built-in PROFINET (Ethernet), MPI and PROFIBUS DP interfaces. Compatible with Siemens S7-1200, S7-1500, S7-300, S7-400 PLCs; also supports Modbus TCP and other third-party devices.
4. Alarm & event management Capture process faults and alarms with timestamp, store alarm logs, support alarm filtering, acknowledge and historical alarm query.
5. Recipe management Store multiple sets of production parameters. Users can quickly load or switch recipes for different product batches, save production data onto SD/USB storage.
6. Data logging & trend recording Record continuous process trends, store historical data, export records via USB flash drive.plcva.com
7. User access permission control Multi-level user accounts with password protection, restrict operation authority for different operators to prevent unauthorized operation.
8. Diagnostic & remote access System self-diagnosis for HMI hardware and communication status; support web server for remote view and simple diagnostics.

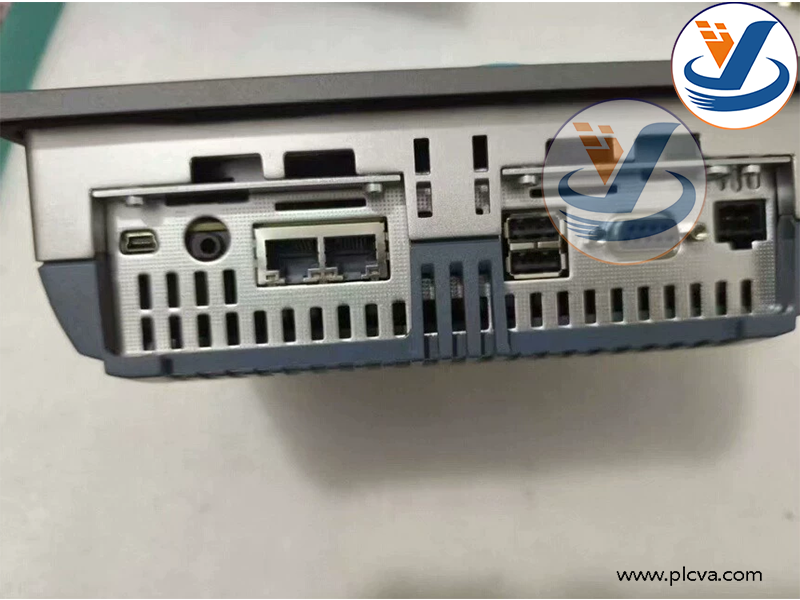

9. File upload/download USB port for project backup, program download and data export.

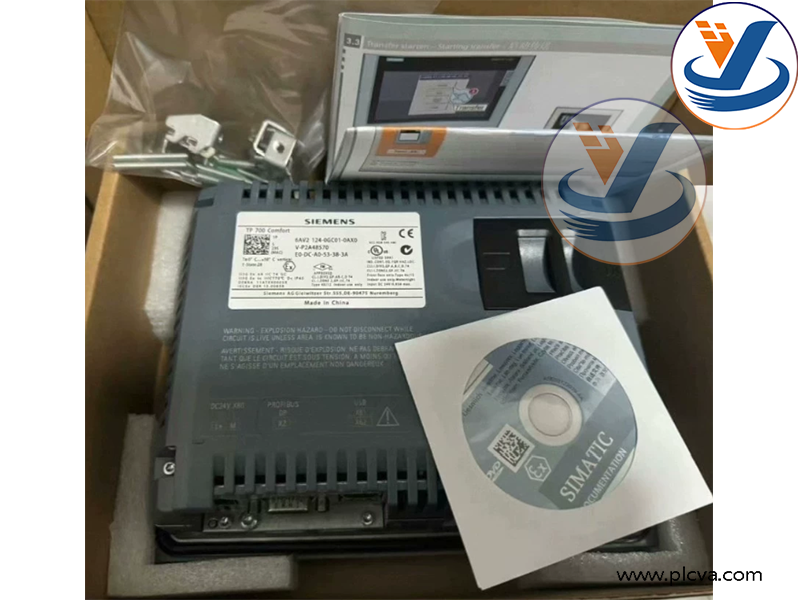

Siemens 6AV2124-0GC01-0AX0

Siemens 6AV2124-0GC01-0AX0

2. Applications & Purpose

Core Purpose

It acts as the operator window between human operators and PLC/automation systems. It visualizes automated production processes, receives manual operator commands, records alarms and production data, enabling convenient on-site operation and equipment monitoring.

Typical Application Industries & Machines

• Machinery manufacturing: packaging machines, injection molding machines, textile machines, metal processing machine tools
• Food & beverage, pharmaceutical production lines
• Water treatment, HVAC, energy equipment
• Conveying systems, material handling automation
• General factory automation matched with Siemens S7 PLC control systems

Working Flow

PLC collects sensor / actuator data → Send data to TP700 Comfort via PROFINET / PROFIBUS → HMI displays real-time process screens → Operator touches screen to send operation commands back to PLC → PLC executes control logic; HMI meanwhile records alarms, trends and recipe data.www.plcva.com

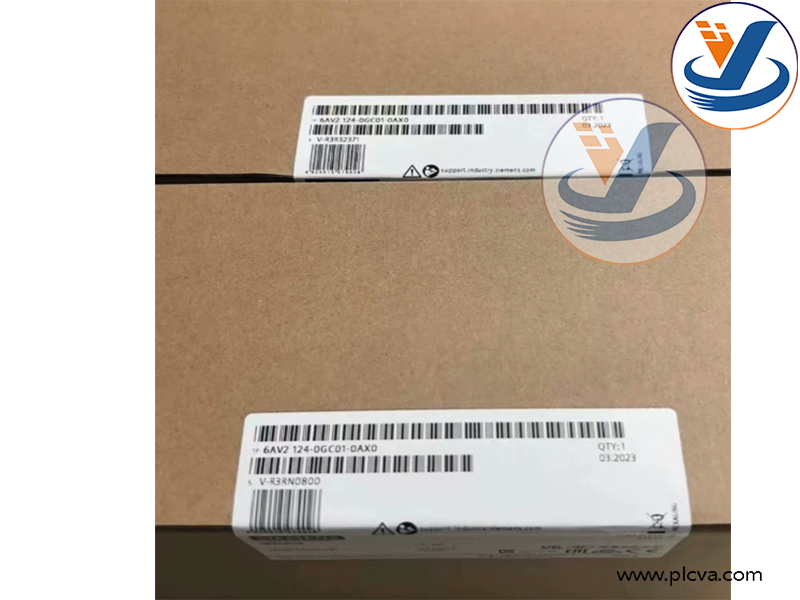

Siemens 6AV2124-0GC01-0AX0

Siemens 6AV2124-0GC01-0AX0
