1.Functions

Hardware safety interlock logic execution It continuously monitors chamber door status, vacuum interlock, emergency stop signals, gas cabinet safety switches and pressure interlock sensors. It blocks chamber startup or cuts off RF power, gas supply automatically if safety conditions are violated, to protect hardware and operators.www.plcva.com
Chamber local I/O and sensor signal acquisition Reads digital and analog signals from vacuum gauges, temperature sensors, limit switches, valve status feedback and plasma monitoring sensors. It transfers sampled field data to the main system controller.
Actuator control for chamber peripherals Outputs digital drive signals to control vacuum valves, solenoids, chamber lift mechanisms and gas interlock relays. It manages the sequential actions of chamber pumping, venting and wafer transfer.
Fault detection, alarm logging and status reporting Detects abnormal states such as vacuum leakage, interlock trip, sensor failure and communication timeout. It records fault events locally and sends alarm messages to tool HMI for diagnosis and process traceability.
System bus communication Communicates with the main equipment controller via dedicated internal bus. It synchronizes safety status and process sequence commands between host controller and chamber sub-systems.

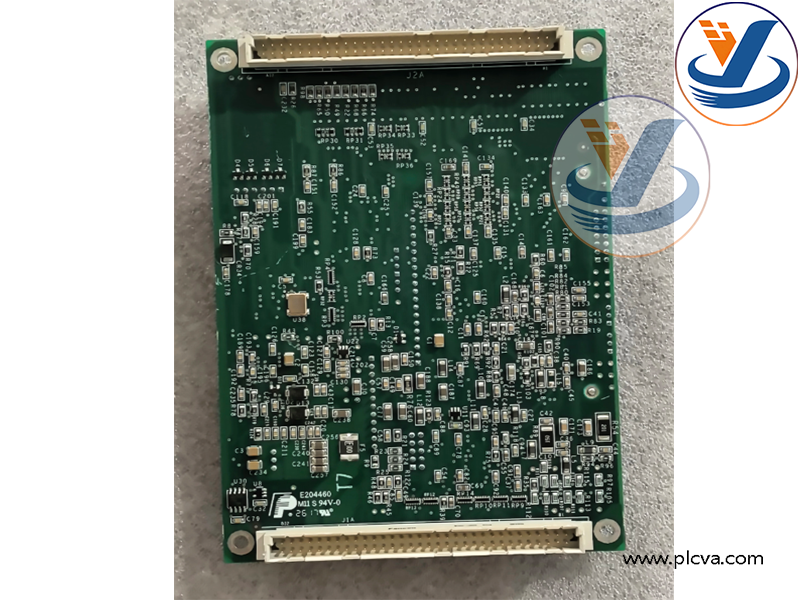

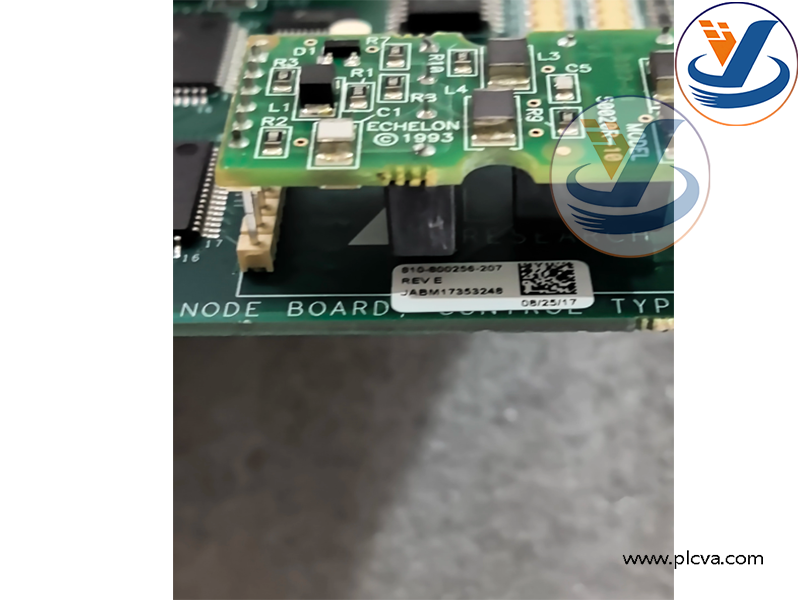

LAM Research Control Board P/N 810-800256-207

LAM Research Control Board P/N 810-800256-207

This board is a dedicated OEM spare part for LAM semiconductor plasma etch and thin-film process tools.

Semiconductor wafer fabrication: Chamber safety & peripheral control for dielectric etch, conductor etch and plasma ashing systems.
Vacuum process chamber control: Manages interlock and peripheral I/O for wafer processing modules.www.plcva.com
Fab equipment maintenance: Direct replacement of faulty boards to restore chamber safety interlock and peripheral control functions, minimizing production downtime.
Preventive maintenance, equipment overhaul and spare inventory stocking in semiconductor cleanrooms.
