1.Functions

Field Signal Termination & Wiring Interface It serves as the physical wiring terminal base for the Digital Input IOP module. All field discrete signals from on-site instruments are wired onto this FTA board, then transmitted to the corresponding DI IOP module via internal ribbon cable. It separates field wiring from hot-swappable IOP card for easier maintenance.www.plcva.com
32-channel 24VDC Discrete Signal Acquisition Interface Supports 32 channels of 24VDC sinking digital input signals, collecting on/off status from field contact devices. It adopts optical galvanic isolation between field side and DCS control side to block surge, noise and ground loop interference.
Circuit Protection & Line Fault Detection Integrates reverse polarity protection, transient voltage suppression and channel-level circuit protection. Cooperates with DI IOP module to realize field wire break and short-circuit fault diagnosis. Fault status can be uploaded to DCS controller and HMI.
IOP Module Mechanical Support & Backplane Interconnection Mechanically holds the DI IOP module, provides stable backplane connection. It supports hot-swap of IOP module without cutting off field wiring.
Status Indication Equipped with LED indicators for power and each channel status, to visually check signal on-site during commissioning and troubleshooting.

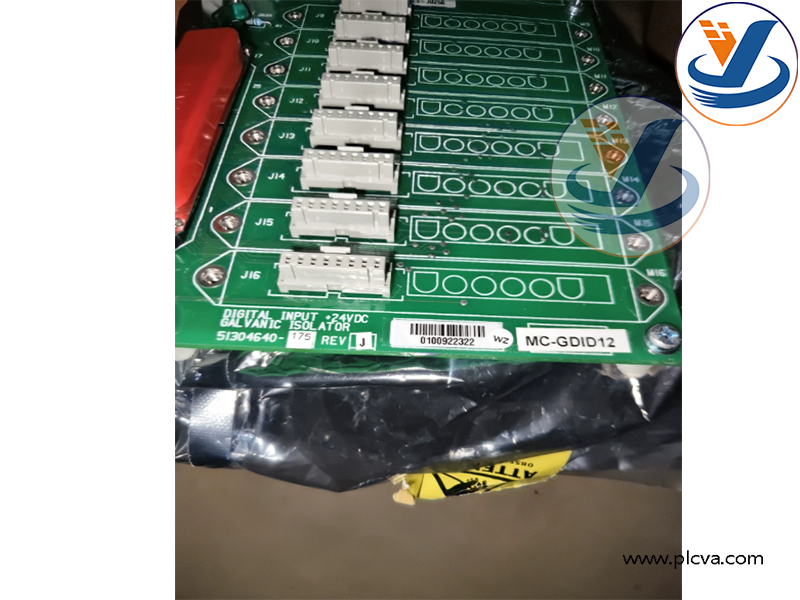

Honeywell 51304640-175 MC-GDID12 Physical photo

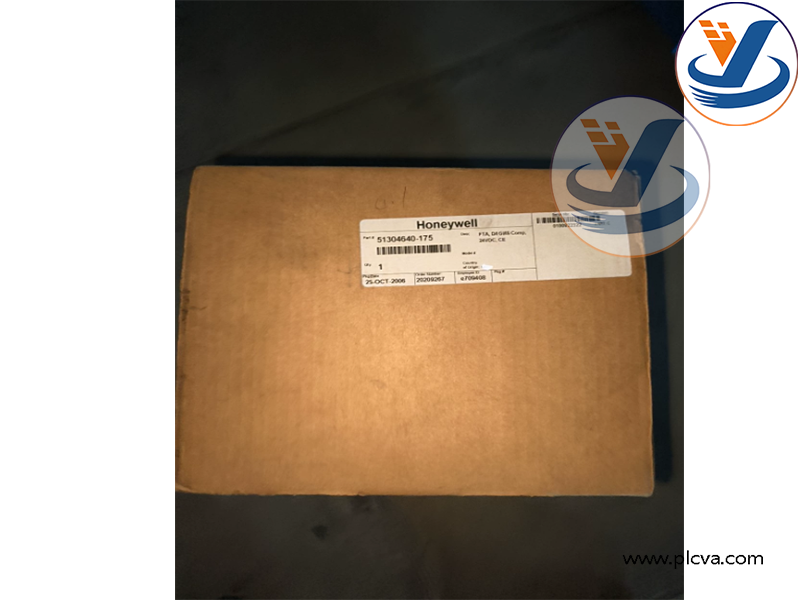

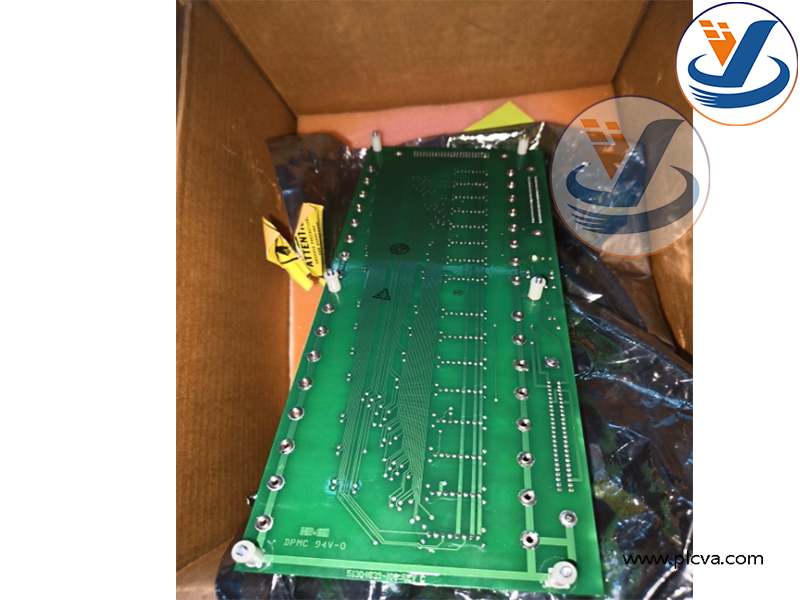

Honeywell 51304640-175 MC-GDID12 Physical photo

It is the field termination backplane for Honeywell Experion PKS C300 DCS digital input IOP module, installed inside DCS control cabinet rack.www.plcva.com
Used to collect discrete switch status signals from field equipment: limit switches, pressure switches, flow switches, relay contacts, motor run/stop feedback, valve position feedback.
Typical industries: oil & gas, petrochemical, chemical plant, power plant, pulp & paper, water treatment.plcva.com
Main purpose: Standardize field signal wiring, isolate field electrical disturbance to protect DCS control I/O card; simplify field wiring, commissioning and troubleshooting; improve the stability and maintainability of DCS discrete signal acquisition system.
