SIEMENS 6SE3215-8DB40 Micromaster Drive
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction

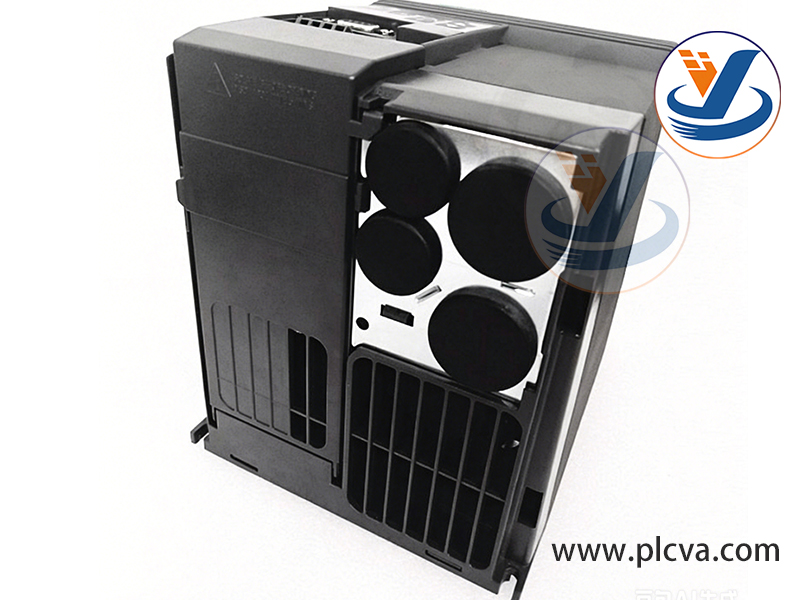

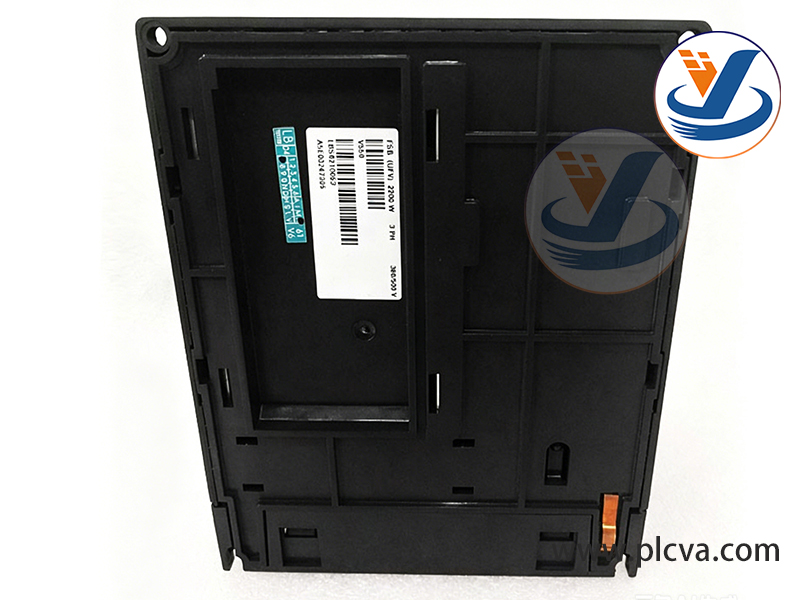

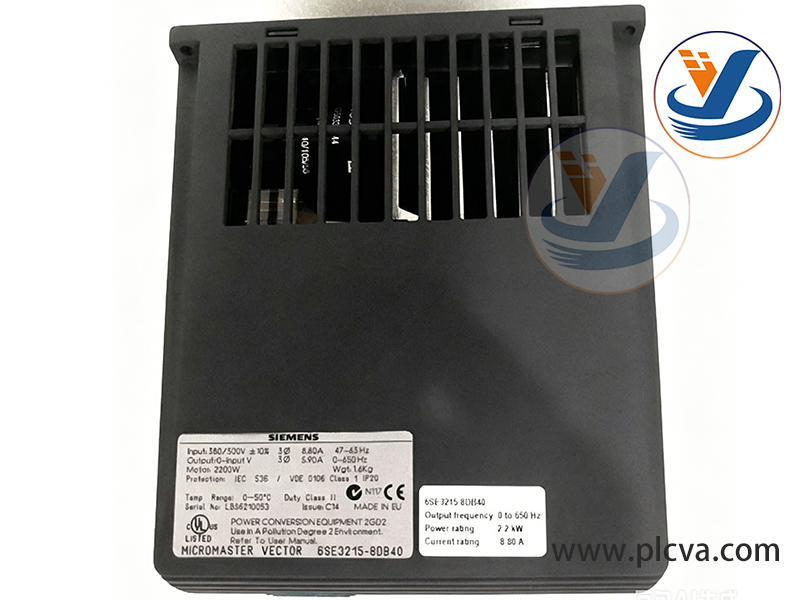

The Siemens 6SE3215-8DB40 is a MICROMASTER Vector MMV220/3 Unfiltered AC Inverter Drive. It’s part of Siemens’ MICROMASTER series, which is designed for variable speed control of three-phase motors.
Key Features：
Power Rating:Motor power: 2.2 kW
Input voltage: 3 AC 380 V – 500 V +/-10%
Control Capabilities:Uses sensorless vector control technology
Offers high starting torque and precise motor speed adjustment
Overload Capacity:Constant torque: 150% for 60 seconds, 200% for 3 seconds.
Additional Features：
Integrated RFI filter option available
Fast Current Limit function for reliable operation
Closed-loop control using PID regulator circuit
Remote control via RS485 serial port using USS protocol
Six modes of controlling output frequency
Integrated DC injection braking
Acceleration/deceleration time with programmable rounding
Two fully programmable relay outputs
Fully programmable analog outputs.
