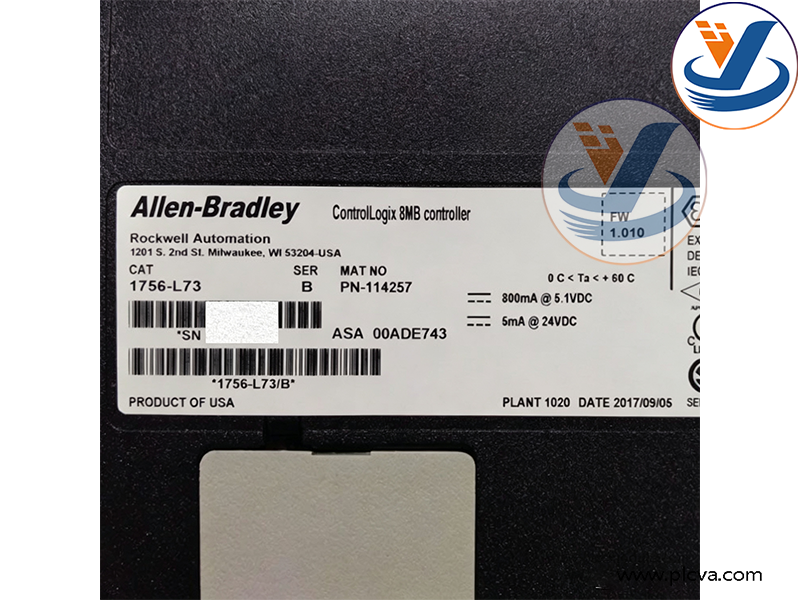

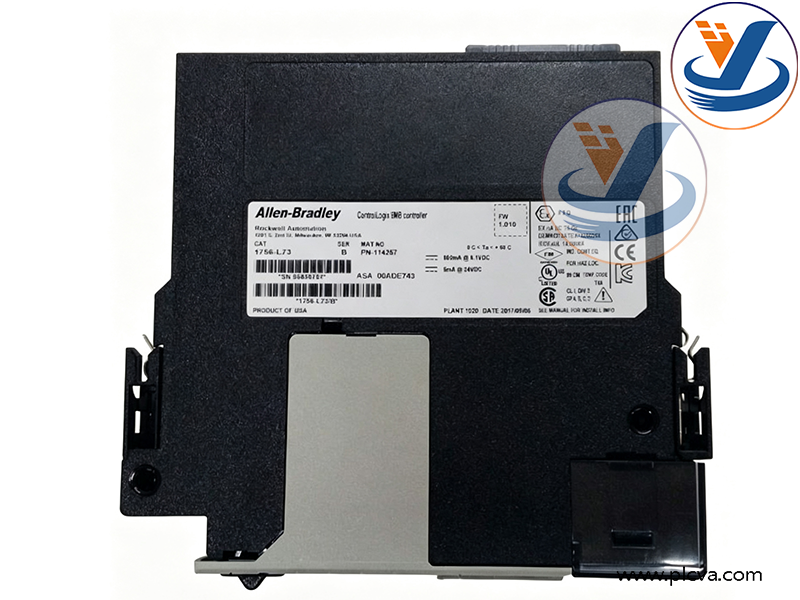

A-B Allen-Bradley

Model: 1756-L73 Series B

Full Name: ControlLogix 8M Controller

Brand: Allen‑Bradley (Rockwell Automation)

Product Line: ControlLogix 5570 Platform

The 1756-L73 B is a high-performance central processing unit (CPU) for the ControlLogix modular PLC chassis with 8MB user memory, serving as the core computing unit for industrial automation systems. Its primary functions are listed below:

1. Central Processing Core for Entire Automation Systems Installed on the ControlLogix backplane, this controller executes all automation control logic, supporting multiple programming standards including Ladder Diagram, Function Block Diagram and Structured Text. It performs logic judgment, mathematical calculation, PID closed-loop regulation, multi-axis motion interpolation, recipe management and interlock timing operations to dominate all equipment control of production lines and complete machinery.
2. 8MB Large Memory for Medium & Large Complex Projects Equipped with 8 MB user program memory, it accommodates large-scale control programs, massive equipment recipes, thousands of controller tags and sophisticated motion control routines. It supports thousands of digital & analog I/O points and dozens of synchronized servo axes, perfectly matching medium-to-large automation applications such as automotive welding lines, metallurgy production lines, large water treatment plants and multi-robot workcells.
3. Multi-Bus High-Speed Communication for Cross-Device Coordination It communicates at high speed with all 1756-series I/O and communication modules via the backplane bus. Paired with auxiliary communication modules (1756-EN2T EtherNet/IP modules, 1756-ENBTA ControlNet modules), it manages parallel multi-network transmission:

• EtherNet/IP: Connect servo drives, VFDs, machine vision systems, HMIs and factory MES systems;
• ControlNet: Real-time remote I/O and high-precision multi-axis synchronous motion control. Peer-to-peer communication between multiple 1756-L73 controllers is supported to realize coordinated operation of segmented large production lines.

4. Native High-Precision Multi-Axis Motion Control Built-in comprehensive motion instruction sets eliminate the need for separate motion boards. It directly controls servo axes via industrial buses, supporting complex processes such as electronic cam, electronic gearing, flying shear and multi-robot coordination with ultra-low synchronization jitter, ideal for high-speed printing, winding, machine tool and packaging equipment.
5. System Data Logging, Fault Diagnosis & Traceability The controller continuously collects real-time operating data, alarms and fault codes of all field devices. The internal log storage records fault occurrence time and equipment status. Historical fault logs can be retrieved by upper monitoring systems to quickly find root causes of downtime, facilitating equipment maintenance and production process optimization.
6. Redundancy & Safety Expansion for Uninterrupted Production It supports hot standby redundant architecture with dual 1756-L73 CPUs and redundant chassis. Seamless switchover to the backup controller happens without production interruption if the primary CPU fails. It is compatible with safety I/O modules to build safety control loops and meet industrial safety standards and hazardous location requirements.
7. Rugged Industrial Hardware & Global Certifications Powered by the standard ControlLogix chassis backplane, it features wide industrial operating temperature range. Certified by UL, CE and Class I Division 2 hazardous location standards. All programming, downloading, online monitoring and remote maintenance are unified via Studio 5000 software, applicable to all types of harsh industrial sites worldwide.
