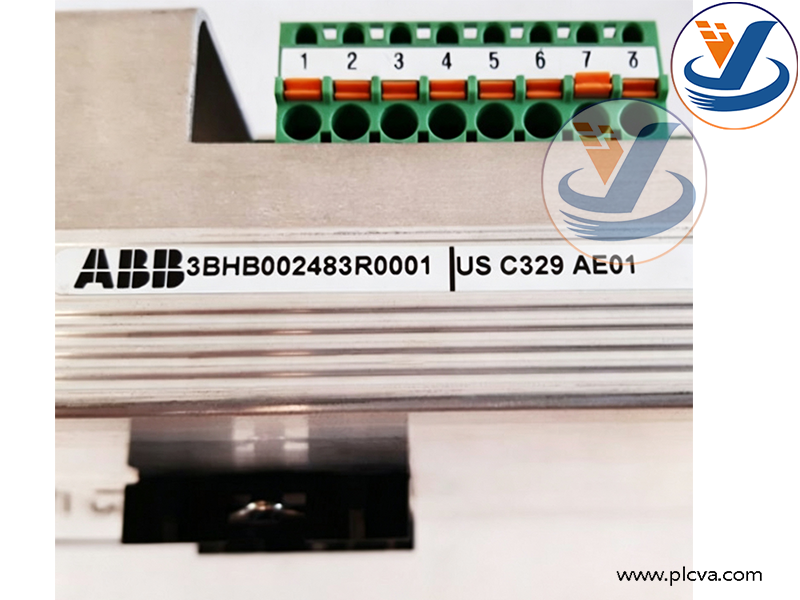

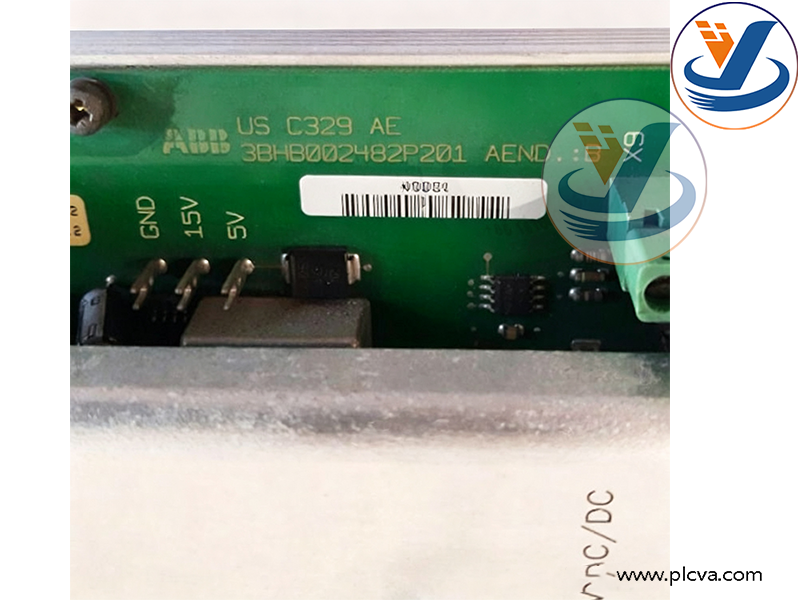

ABB USC329AE01 Expansion Module 3BHB002483R0001 US C329 AE01

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

Model: ABB USC329AE01, Order No. 3BHB002483R0001 (US C329 AE01)

It belongs to the AC 800PEC power electronic control system. It is dedicated expansion interface module for UNITROL 5000 / UNITROL 6000 static generator excitation systems, operating with PPD539 main controller and UAD149 / UAD155 I/O boards.

Position: Peripheral signal expansion module for excitation systems, not main CPU, not basic Combi I/O board, designed to expand additional digital & analog interfaces.

2. Main Functions

Expansion unit for AC800PEC excitation control platform to extend extra digital inputs, digital outputs and auxiliary analog signal channels.
Collects auxiliary status signals inside excitation cabinets: field breaker status, cooling fan, cabinet door limit, rectifier temperature, local start/stop commands and other peripheral digital signals.
Outputs auxiliary control signals: fan on/off, alarm relay contacts, local indicator lights and external interlock signals.
Provides signal isolation, level conversion and hardware filtering to improve noise immunity for field signals.
Communicates bidirectionally with UAD series I/O modules and PPD539 controller via high-speed backplane bus.
Supports wire-break detection and hardware self-diagnosis; fault information can be uploaded to System 800xA monitoring platform.
Expands external contact points when standard I/O channels are insufficient, no modification to main controller rack required for flexible capacity expansion.

3. Applications

Matched with ABB UNITROL5000 / UNITROL6000 static excitation equipment for synchronous generators.
Signal expansion for excitation cabinets in thermal, hydro and gas turbine power plants.
Excitation control systems for synchronous condensers and large synchronous motors.
Retrofit, capacity expansion and spare part replacement projects for power plant excitation systems.
Peripheral auxiliary signal expansion for high-power converters and SVG devices built on AC800PEC platform.
