TRICONEX

1.Term Explanation

1. TRICONEX: Brand name, commonly known as Kangjisen, a Tricon Triple Modular Redundant (TMR) SIS Safety Instrumented System brand under Schneider Electric, dedicated to high-risk process control for chemical and oil & gas industries.

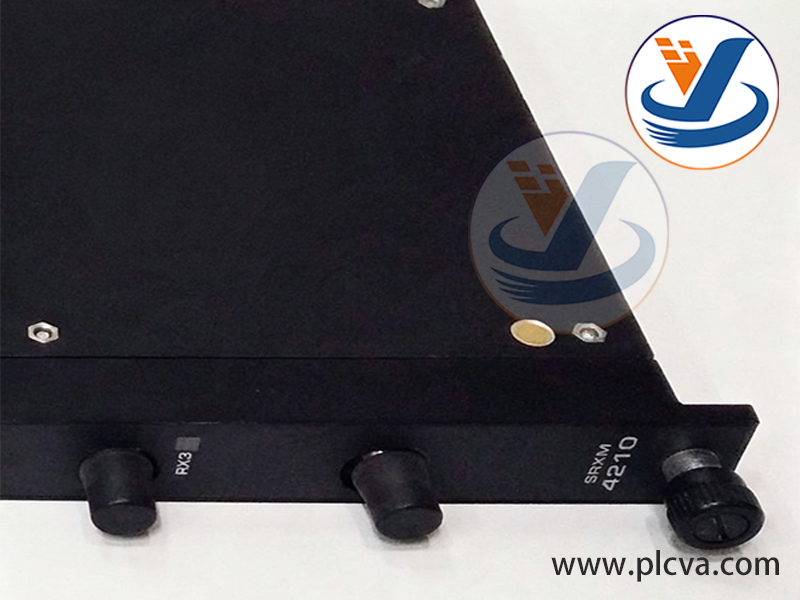

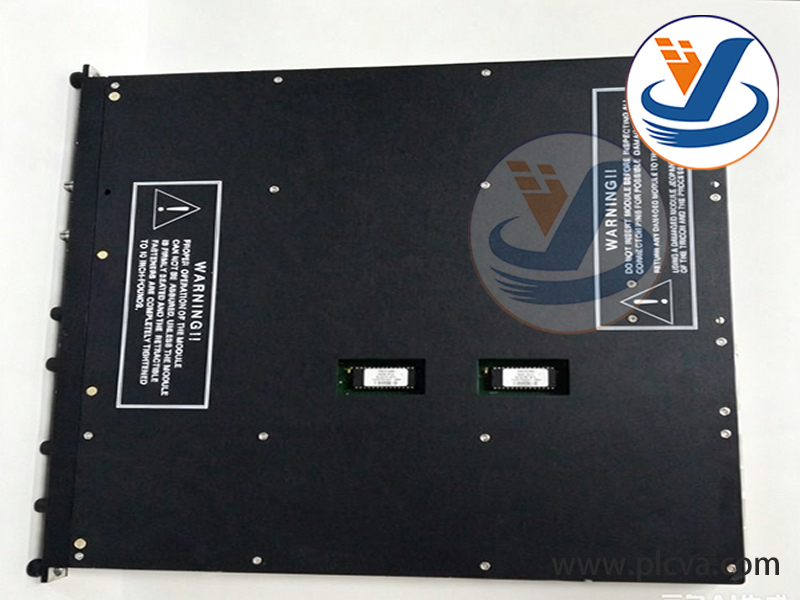

2. SRXM: Abbreviation of Safety Remote Extender Module, a dedicated card for fiber-optic remote IO extension of Tricon racks.
3. 4210 / Tricon4210: Original factory hardware model code, exclusive fiber remote extender module, matched with dedicated SRXM remote backplane as a complete set.
4. Fiber Optic Remote Extender Module: Official standard component designation.

Supplementary Key Distinction:

SRXM4210 differs from CIM/TCM Ethernet communication cards. It transmits internal Tricon TriBus triple redundant safety bus signals, rather than common upper monitoring network data. Adopting fiber media to separate strong and weak electricity and extend IO rack distance, it fully retains SIL3 safety level without damaging the TMR voting architecture.

This module must be used in pairs: one SRXM4210 local unit installed in the main control rack, paired with the same model fiber module at the remote IO rack for point-to-point fiber connection.

2. Core Main Purposes

1. Long-distance fiber extension of Tricon triple redundant TriBus bus (core function) The local SRXM4210 reads TriBus safety bus data from three Emp II 3005 processors in the main rack, converts electrical signals to optical signals and transmits data to the remote IO rack via fiber optics. The remote module restores triple bus signals via photoelectric conversion, enabling remote IO cards (DI/DO/AI/AO) to directly access main controller 2oo3 voting logic. Remote IO shares identical control authority and SIL3 safety level with local IO.
2. Complete electrical isolation to eliminate ground loops and surge interference Optical fiber has no conductive circuit, completely cutting off potential difference and ground loop current between the main control cabinet and field remote explosion-proof cabinets. It prevents strong electromagnetic interference and lightning surges generated by large motors, inverters and compressors from damaging main CPU and the whole SIS system.
3. Expand installation distance for flexible cabinet layout Copper backplane bus supports only ultra-short transmission distance, while SRXM4210 fiber allows wiring up to several hundred meters. IO cabinets can be dispersedly arranged in on-site explosion-proof areas near reactors, heating furnaces, pipe racks and compressor workshops, with the main control system centralized in central control room, drastically reducing field cable laying workload.
4. Fully retain TMR triple redundant architecture and millisecond SOE timing Three groups of bus signals are transmitted synchronously via independent optical channels, and 2oo3 hardware voting is still executed at remote ends. Millisecond-level SOE timestamps of interlock actions and channel faults will not be lost or delayed, complying with safety accident traceability and audit requirements.
5. Hot standby redundant fiber links with bumpless switchover upon communication failure The module is equipped with dual optical transceivers to build primary and backup redundant fiber circuits. If one fiber cable breaks or optical attenuation exceeds limits, the system automatically switches to the backup optical path without interruption of safety control logic and avoids spurious plant shutdown.
6. Real-time fault diagnosis and upload for remote IO channels The main controller can fully collect faults of remote IO modules such as wire breakage, short circuit, offline modules and excessive fiber attenuation through SRXM fiber links. All alarms are uploaded uniformly to central DCS for integrated operation and maintenance of both local and remote IO points.
7. Simplify wiring for explosion-proof sites and reduce construction & compliance costs Remote explosion-proof cabinets do not require laying massive expensive intrinsically safe shielded copper cables; only 2-core industrial fiber is needed, which greatly cuts wiring engineering quantity and explosion-proof sealing joints, meeting wiring codes for hazardous areas in petrochemical industry.
8. Support online hot-swap maintenance Designed for standard Tricon rack slots, faulty modules can be replaced without system shutdown. The remaining fiber link continuously ensures normal interlock control of remote IO during maintenance.

3. Applicable Application Scenarios

Scenario 1: Large Petrochemical Refineries (Core Application)

Oil refineries, ethylene plants, hydrogenation and reforming units. The Tricon main control rack is placed in the central control room, and SRXM4210 fiber extends to on-site explosion-proof IO cabinets near pipe racks, heating furnaces and reactors to collect remote safety signals of temperature, pressure and liquid level and drive field shutoff valve interlocks.

Scenario 2: Offshore Oil Platforms, Onshore Oil & Gas Gathering Stations, LNG Tank Yards

The central control cabin of offshore platforms is hundreds of meters away from wellheads, separators and flare remote cabinets, with high risks of corrosion, electromagnetic interference and lightning strikes. Fiber isolation eliminates platform ground loop interference, and dispersedly arranges F&G fire & gas and ESD emergency shutdown IO modules.

Scenario 3: Compressor & Distribution Stations of Long-distance Oil/Gas Pipelines

Dispersed block valve chambers along pipelines are far from central control rooms. SRXM4210 fiber remote extension deploys IO cabinets in valve chambers to collect on-site pressure and leakage signals, and the main controller executes unified HIPPS high-integrity pressure protection interlocks.

Scenario 4: High-temperature & High-pressure Units of Coal Chemical, Ammonia and Gasification Plants

Gasifiers and shift converters operate under high-temperature environments with severe EMI from high-power inverters. Remote IO cabinets are installed nearby, and fiber isolation prevents signal distortion caused by high-power equipment interference.

Scenario 5: FSSS Furnace Safety Systems of Thermal Power Boilers & Turbines

Boiler and turbine workshops contain high-power motors and inverters with severe electromagnetic interference. The main control rack is placed in electronic equipment room, and SRXM4210 fiber extends to local IO cabinets beside furnaces and turbines to guarantee stable transmission of furnace safety interlock signals.

Scenario 6: Distributed Reactor Clusters in Explosion-proof Workshops of Fine & Pharmaceutical Chemical Industry

Multiple groups of dispersed explosion-proof reactors are far from central control room. Separate remote IO cabinets are deployed via fiber to independently monitor temperature and pressure interlocks of each reactor set, eliminating common-ground interference from multiple equipment cables.

Scenario 7: Unit Protection Systems for Large Compressor & Fan Workshops

TS3000 compressor anti-surge and unit ESD shutdown systems operate in compressor workshops with heavy electromagnetic interference. Fiber isolation separates the main controller from local unit IO cabinets to prevent false interlock trips.

Scenario 8: Overseas Large Oil & Gas / Chemical Complete Set Export Projects

Fiber electrical isolation design adapts to different grounding standards of overseas plant sites, reducing grounding commissioning difficulties for cross-border projects. Standardized model ensures global availability of spare parts and convenient maintenance for overseas factories.

4. Supplementary Key Hardware & Safety Features

1. Safety Compliance: Maintains full IEC61508 SIL3 and IEC61511 process safety certification; remote IO will not degrade safety performance.
2. Transmission Medium: Dual-channel industrial optical fiber, maximum single-span transmission distance up to 2km (subject to fiber specification).
3. System Compatibility: Only compatible with Tricon V9/V10 triple redundant main racks, matched with dedicated SRXM remote backplane.
4. Anti-interference Performance: Complete galvanic isolation, suppress EMI/RFI electromagnetic interference, ground loops and lightning surges.
5. Redundancy Function: Dual optical ports for redundant optical circuits with automatic bumpless fault switchover.
6. Timing Accuracy: Synchronous transmission of triple bus signals, no millisecond SOE timestamp offset.
7. Operation & Maintenance: Standard rack slot mounting, support online hot-swap, independent optical power fault diagnosis and alarm.
