I. Full Product Name & Term Breakdown

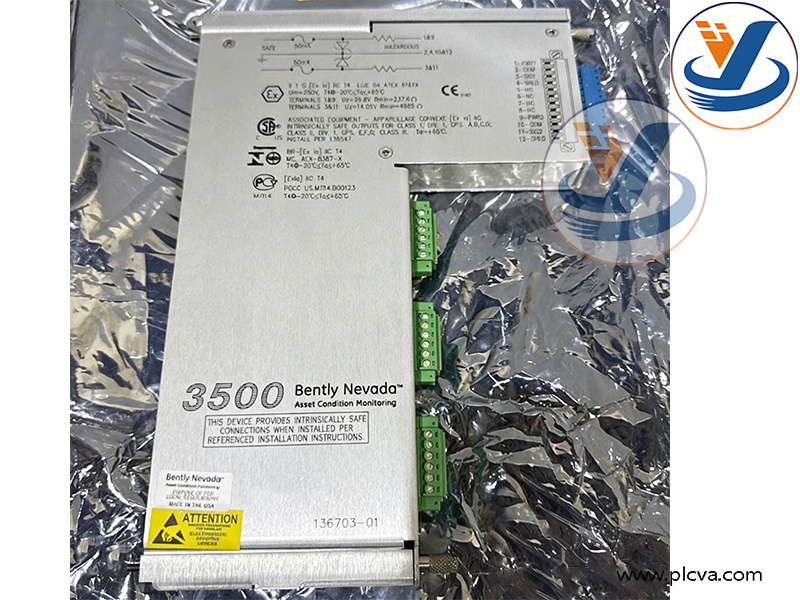

Full Official Name: Bently Nevada 136703-01 Barrier Tachometer I/O Module, 3500/50

Term Explanation:

Bently Nevada: The original brand for machinery vibration and rotor monitoring systems.
136703-01: Spare part number of the 3500/50 module hardware.
Barrier: Intrinsically safe isolation barrier for hazardous explosive locations.
Tachometer: For rotational speed and keyphasor signal measurement.
I/O Module: Input and output signal processing card.
3500/50: Tachometer monitor card designed for the 3500 rack monitoring system.

Basic Signal Acquisition It captures pulse signals from magnetoelectric and Hall-effect tachometer probes and keyphasor transducers, calculates real-time rotational speed of rotating machinery and provides phase reference signals.
Intrinsically Safe Isolation (Barrier Feature) Equipped with built-in intrinsic safety barriers, it electrically isolates the safe control room area from hazardous explosive process zones. It limits circuit energy to avoid electric sparks igniting flammable media and complies with industrial explosion-proof standards.
Signal Conditioning & I/O Communication It conditions and shapes raw pulse signals from field sensors and transmits processed data to the 3500 rack mainframe. Meanwhile, it outputs multiple discrete and analog speed signals to PLC, DCS and alarm systems to realize bidirectional input and output signal transmission.
Unit Synchronization & Fault Judgement It supplies keyphasor phase reference signals. Coordinated with vibration monitoring modules, it supports rotor balance analysis and diagnosis of rotor cracks and blade defects. It generates alarm and interlock protection signals automatically when rotational speed exceeds preset thresholds.

Matching System Exclusively designed to work with the Bently Nevada 3500 machinery protection monitoring rack system.
Applicable Rotary Equipment Turbo-generators, gas turbines, large air compressors, fans, process compressors, industrial gear units and heavy-duty refinery turbomachinery.
Main Monitoring Purposes

Continuously monitor rotor rotational speed in real time and send early warnings for overspeed and underspeed conditions;
Collect keyphasor pulses to serve as the phase reference for full-unit vibration analysis;
Transfer signals from field tachometer probes under explosion-proof working conditions and isolate circuits in hazardous areas;
Transmit speed data and overspeed interlock shutdown signals to external control systems to guarantee unit operational safety;
Support equipment fault diagnosis, rotor dynamic balance calibration and unit start-stop status monitoring.

Application Industries & Scenarios Thermal power plants, oil & gas exploitation, petroleum refining, coal chemical plants, metallurgical explosion-proof workshops and large complete chemical plants with explosion-proof power turbomachinery.
