BENTLY NEVADA

Bently Nevada: World-famous manufacturer of turbomachinery condition monitoring and protection systems

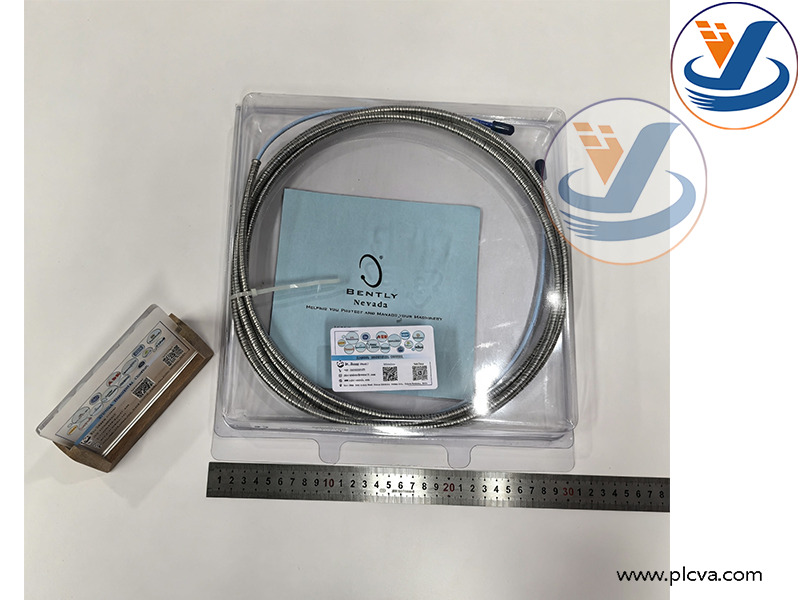

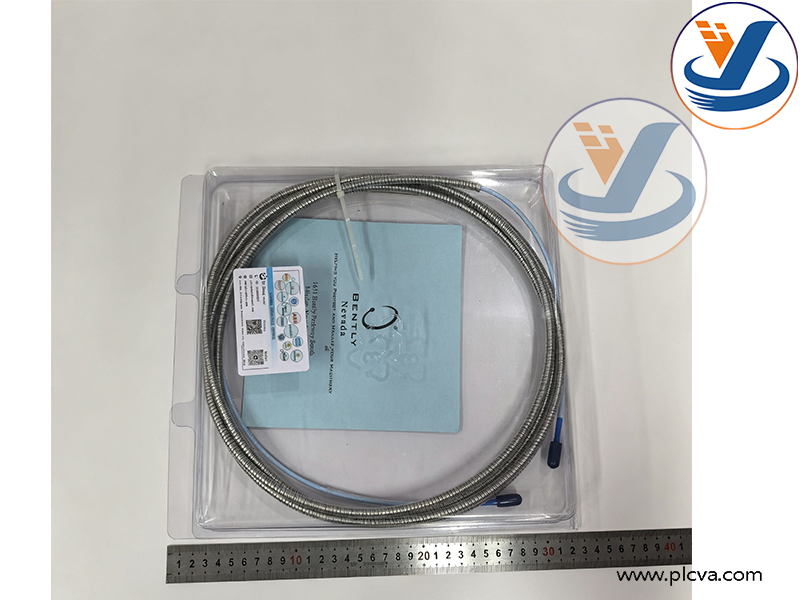

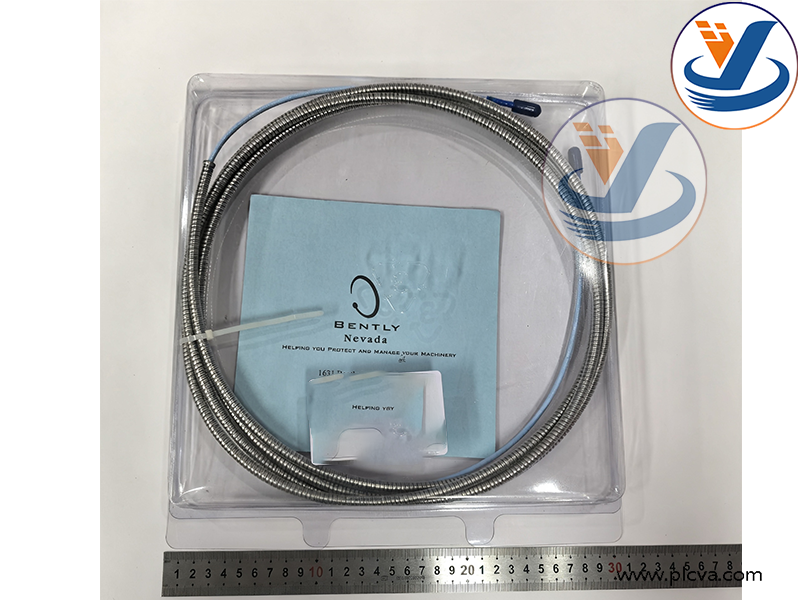

330130-040-01-00: Factory part number for extension cable
- 330130: Main model of extension cable for 330XL series
- 040: Cable length specification
- 01: Standard connector type
- 00: Standard non-intrinsically safe version
330XL: Classic eddy current transducer series from Bently Nevada
8mm: Matching diameter of corresponding eddy current probe
Extension Cable: Special connecting wire between vibration probe and proximitor

2. Core Product Functions

Lossless Signal Transmission It transmits weak high-frequency RF signals of eddy current probes. Its impedance and capacitance strictly comply with factory standards to ensure linear signal transmission without attenuation, preventing distortion of shaft vibration and shaft displacement measurement data.
Distance Extension for Installation It extends the wiring distance between the probe mounted on equipment housings and proximitors inside control cabinets, solving limited installation space around bearing housings and rotary units.
Factory-matched Sealed Connectors Both ends are pre-installed with original factory sealed connectors for plug-and-play connection with 8mm 330XL probes and proximitors, featuring dust-proof and oil-proof sealing performance.
Industrial Anti-interference Protection Adopting double-layer shielding structure with oil-resistant and high-temperature resistant outer jacket, it blocks electromagnetic interference generated by motors, inverters and high-power equipment on site to avoid false monitoring alarms.
System Matching Requirement The probe, extension cable and proximitor must be matched as a complete set with consistent capacitance and impedance parameters. This cable is an essential component to guarantee measurement accuracy of the whole eddy current sensor system; cross-model cables cannot be substituted.

Compatible Matching System Matched with Bently 330XL 8mm eddy current vibration probes and 3300 series proximitors, cooperating with 3500 and 1900 machinery monitoring protection racks.
Applicable Rotary Equipment Turbo-generators, gas turbines, process compressors, large fans, air compressors and refinery turbomachinery.
Main Application Purposes

Connect 8mm eddy current probes installed on equipment and proximitors inside cabinets to extend wiring length;
Stably transmit high-frequency sensing signals for shaft vibration, shaft displacement and rotor eccentricity measurement;
Double-layer shielding suppresses on-site electromagnetic interference to guarantee accurate collection of unit vibration data;
High temperature and lubricating oil resistant, suitable for harsh oily and high-temperature working conditions of bearing housings;
Can be used together with intrinsically safe barriers for wiring in explosion hazardous areas of power and chemical plants.

Applicable Industries Thermal power plants, gas power stations, petroleum refineries, coal chemical plants, oil & gas compressor stations and metallurgical plants equipped with large rotary power machinery.
