Main Function

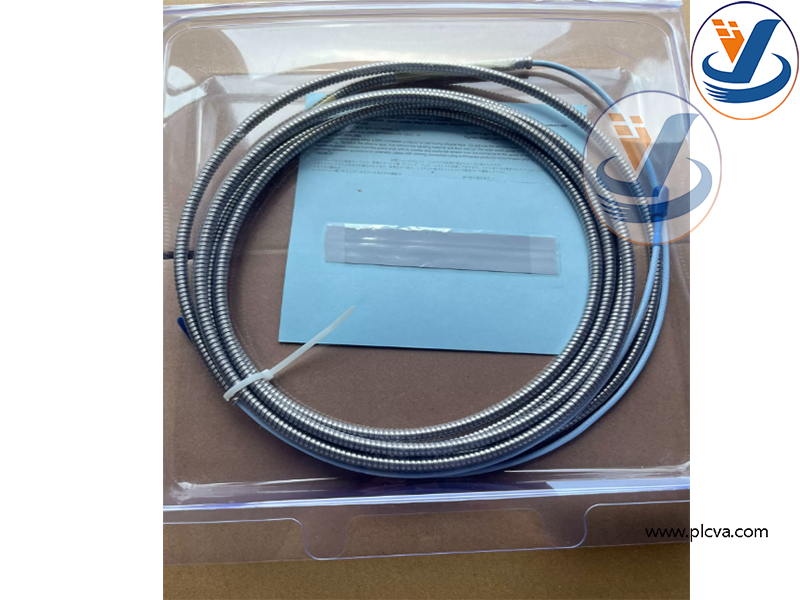

High‑performance shielded coaxial signal cable, electrically matches 5‑meter total‑length transducer system; connects 3300‑XL proximity probe to 330180‑XX‑00 Proximitor sensor.
Transmits high‑frequency eddy‑current excitation signal from proximitor to probe, and returns impedance‑variation signal from probe back to proximitor without signal distortion.
Precision‑calibrated electrical length; the sum of probe cable length plus this extension cable length must match the rated electrical length of the paired proximitor to guarantee nominal sensitivity 7.87 V/mm (200 mV/mil) and linear measurement performance.
Double‑shielded construction suppresses industrial electromagnetic interference, ensures stable signal transmission in high‑EMI cabinet and field environments.
Factory‑installed dedicated microdot connectors on both ends for quick field connection; robust insulation for wide industrial operating temperature range.
Supports system fault detection: proximitor can identify cable open‑circuit, short‑circuit and connector connection failures via cable impedance monitoring.

Bently Nevada 330130‑045‑01‑05 3300 XL 8‑mm

Forms one key component of the complete 3300‑XL non‑contact eddy‑current measuring system, working together with proximity probe and proximitor sensor, feeds measurement signals to Bently Nevada 3500 monitoring rack.
Transmits signals for shaft radial vibration, axial thrust displacement, shaft eccentricity, differential expansion and key‑phasor speed measurement of rotating machinery.
Applied on steam turbines, gas turbines, centrifugal compressors, generators, large pumps and blowers with oil‑film bearings.
Widely deployed in thermal power plants, oil & gas refineries, petrochemical and metallurgical industries for machinery protection and condition‑based diagnosis, complying with API‑670 standard for rotating‑equipment monitoring.
