BENTLY NEVADA

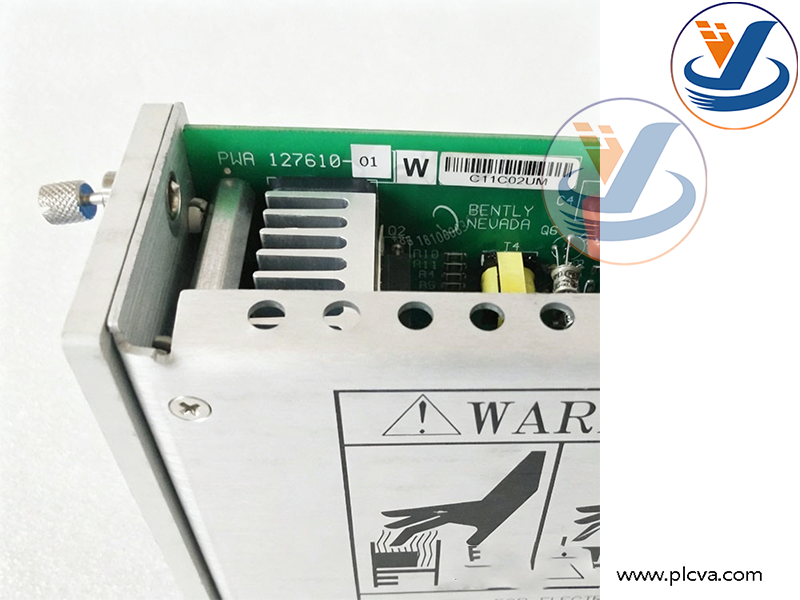

The Bently Nevada 127610-01 is a power supply module designed for the 3500/15 model. It is used to convert a wide range of input voltages to voltages acceptable for use by other 3500 modules.The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack.

The 3500/15 model can handle different types of power supplies, including universal AC voltage (85 to 264 Vac rms), legacy high voltage DC (88 to 140 Vdc), and legacy low voltage DC (20 to 30 Vdc) .

The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack.

The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack. When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one.

Removing or inserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed.

The 3500/15 AC and DC Power Supplies accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System:

•  Universal AC Power
• High Voltage DC Power Supply
• Low Voltage DC Power Supply

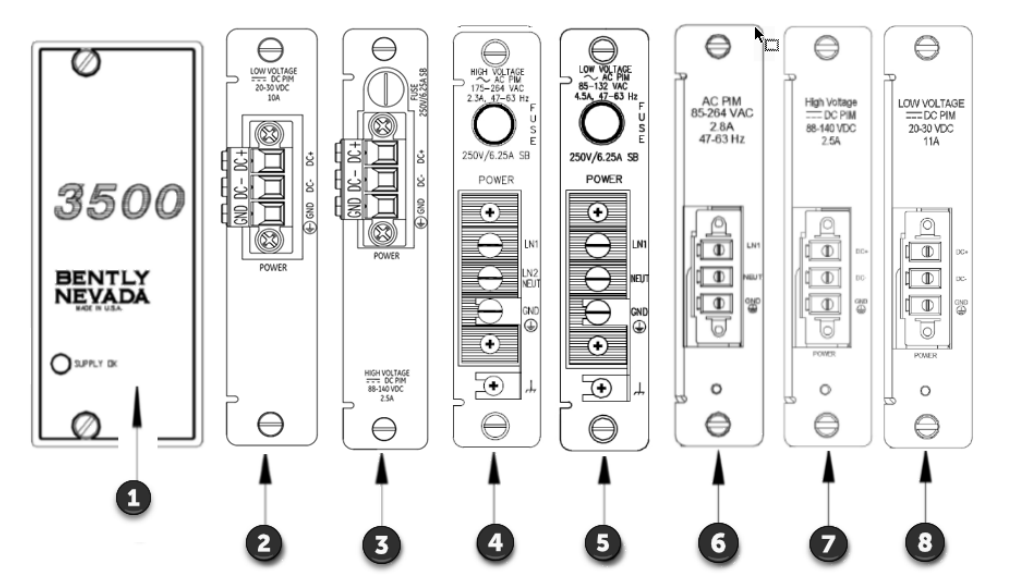

1. 3500/15 AC and DC Power Supplies OK LED

  2. Legacy Low Voltage DC Power Input Module 133300-01

  3. Legacy High Voltage DC Power Input Module 129478-01

  4. Legacy High Voltage AC Power Input Module

  5. Legacy Low Voltage AC Power Input Module

  6. Universal AC Voltage Power Input Module

  7. High Voltage DC Power Input Module

  8. Low Voltage DC Power Input Module
