BENTLY NEVADA

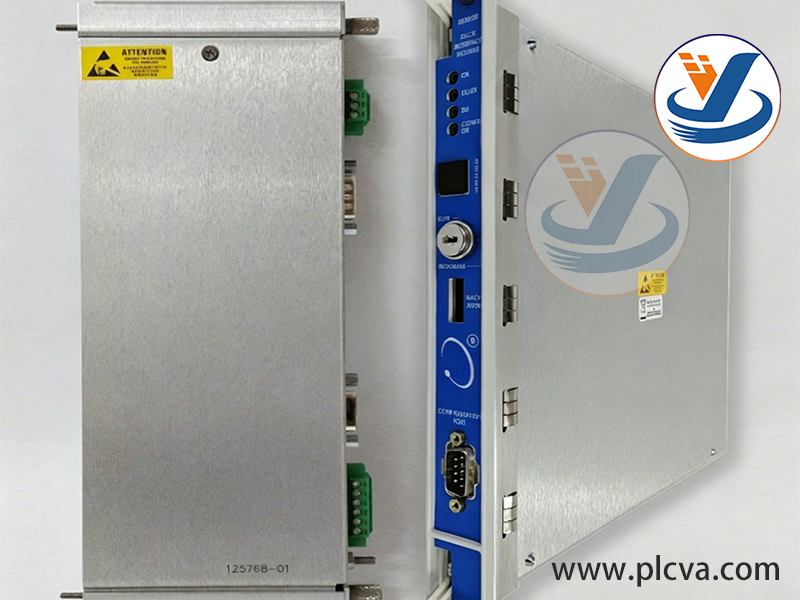

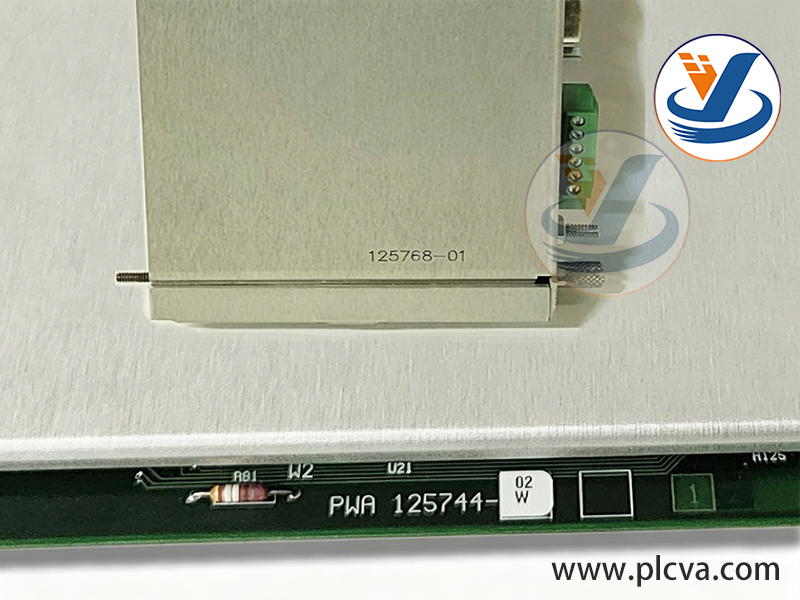

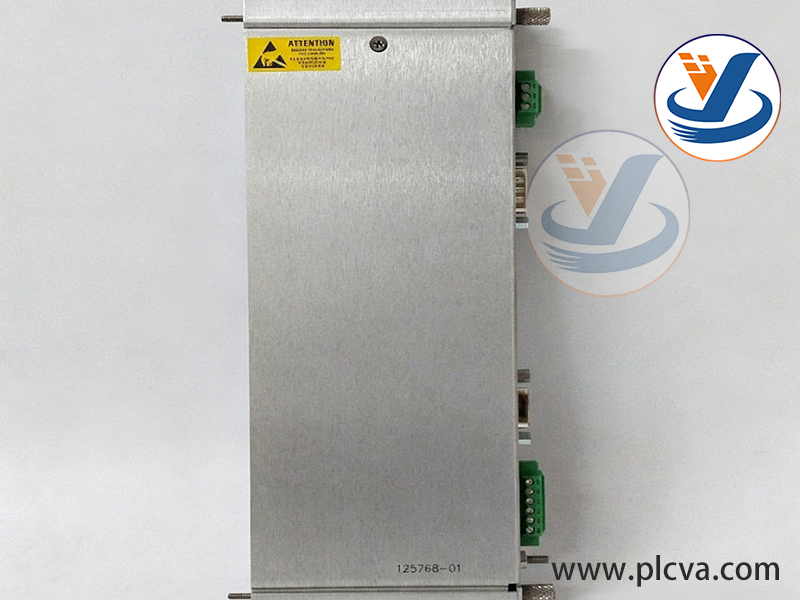

The BENTLY 3500/20-01-01-00 contains two modules: 1.the front card: 125744-02 Standard Rack interface Module and 2. the rear card: 125768-01 RlM l/O Module with RS232/RS422 Interface  It Acts as the primary communication link between the 3500 rack and external systems.Supports multiple communication protocols, including Modbus, Ethernet, and OPC, for integration with various control systems.Enables configuration of the 3500 monitoring modules using the 3500 Configuration Software.Provides real-time diagnostics and health monitoring of the 3500 system.

Technical Specifications:

• Part Number: 3500/20-01-01-00.
• Components:
  • 125744-02: 3500/20 Rack Interface Module (RIM).
  • 125768-01: 3500/20 Rack Interface Module (RIM) with additional firmware or configuration.
• Communication Protocols: Modbus, Ethernet, OPC.
• Power Supply: Typically 24V DC (supplied by the 3500 rack).
• Operating Temperature: -40°C to +85°C (-40°F to +185°F).
• Mounting: Installed in a 3500 series rack.

1. LEDs: Indicate the operating status of the module
2.  Hardware Switches:
3. Configuration Port: Configure or retrieve machinery data from only this rack using RS-232 protocol.

  4. Rack Interface I/O Module: Daisy chain or configure racks using RS-232 and RS-422 protocol

  5. Data Manager I/O Module: Connect two Bently Nevada Communication Processors to the 3500 rack.
