BENTLY NEVADA

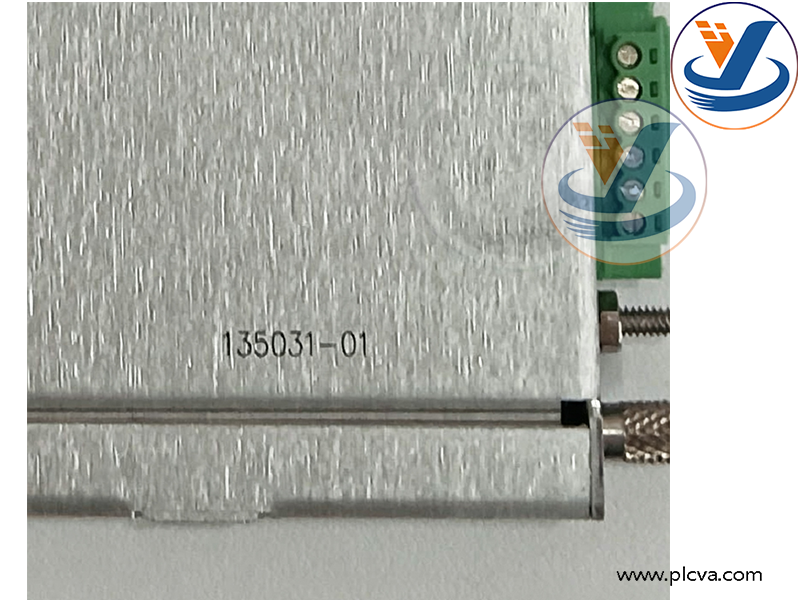

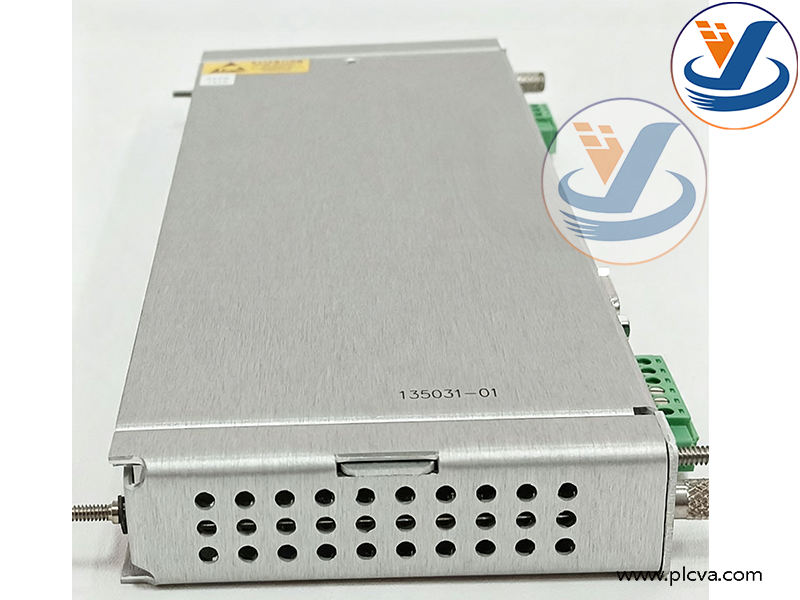

1. Core Functions

1. Central Rack Communication Hub It is the core communication gateway of the Bently Nevada 3500 machinery protection rack, which must be installed in Slot No.1 next to the rack power supply. It manages the backplane data bus inside the rack, coordinates data interaction between all internal monitoring modules (vibration, displacement, speed, overspeed modules) and unifies data scheduling.
2. External System Data Interaction IO Interface It provides multi-type industrial communication interfaces to transmit real-time machine operating data, alarm signals, fault codes and protection status to upper-level control systems such as PLC, DCS, SCADA and HMI. It supports mainstream protocols including Modbus, Modbus/TCP, proprietary Bently Nevada communication protocol, serial RS232/RS485 and Ethernet TCP/IP.
3. Rack Configuration & Remote Debugging Channel Engineers can connect configuration software or System 1 condition monitoring platform via this module to complete rack parameter setup, protection threshold modification, event log upload and equipment remote diagnosis. The built-in modem supports remote dial-up access for unattended industrial sites without Ethernet coverage.

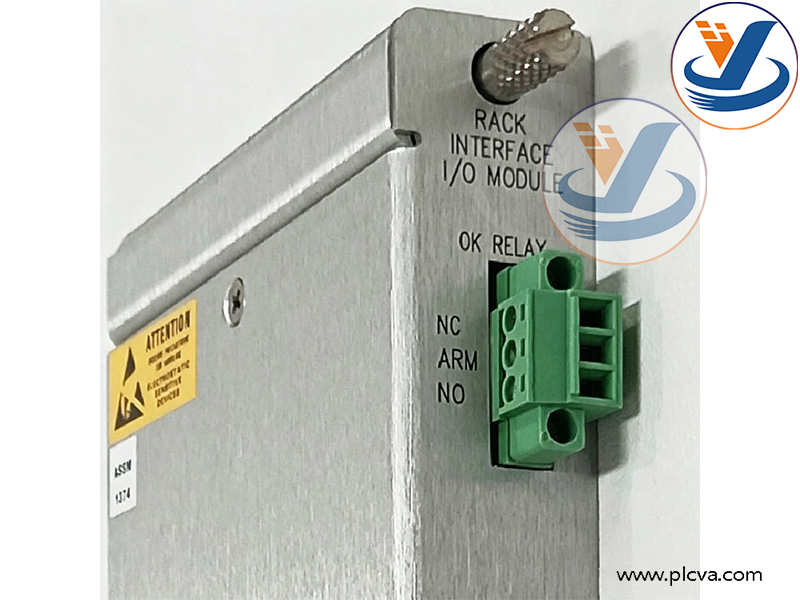

4. System Self-Diagnosis & Fault Alarm Output It continuously self-checks the communication status of each slot module, backplane bus faults, power supply anomalies and connection disconnections. It outputs hard-wired dry contact alarm signals to external alarm panels when system communication failures occur, realizing interlock reminder for on-site operators.
5. Redundant Stable Operation & Hot Swap Support Adopts industrial redundant circuit design; it can automatically switch communication links when partial signal channels fail to ensure uninterrupted monitoring. The module supports hot swapping without shutting down the whole rack, greatly simplifying on-site maintenance and replacement work.
6. Expansion Compatibility for Communication Processors It can be matched with Bently Nevada external communication accessories such as TDXnet, TDIX and DDIX to expand multi-rack cascading and long-distance data transmission capabilities for large-scale unit monitoring systems.

2. Application & Purpose

1. Matching System Exclusively supporting the Bently Nevada 3500 series rack-type mechanical vibration & protection monitoring system; it is an indispensable core IO communication card for the whole rack, and every complete 3500 monitoring rack requires one unit.
2. Applicable Industrial Equipment Suitable for all high-risk rotating machinery sets that need safety protection: steam turbines, gas turbines, centrifugal compressors, axial fans, refinery turbomachines, pipeline pump units and offshore platform rotating equipment.
3. Main Application Industries Thermal power plants, petrochemical refineries, natural gas processing plants, coal chemical projects, offshore oil & gas platforms, large air separation plants and pipeline transportation stations, all of which require continuous 24/7 equipment safety monitoring.
4. Core Practical Value It acts as the “bridge” between on-site machinery monitoring hardware and factory central control systems. It uniformly collects all vibration, temperature, speed and overspeed protection data of rotating equipment, realizes centralized monitoring and remote management, complies with API 670 rotating machinery protection standards, and avoids equipment runaway or explosion accidents caused by unmonitored abnormal operating conditions.
