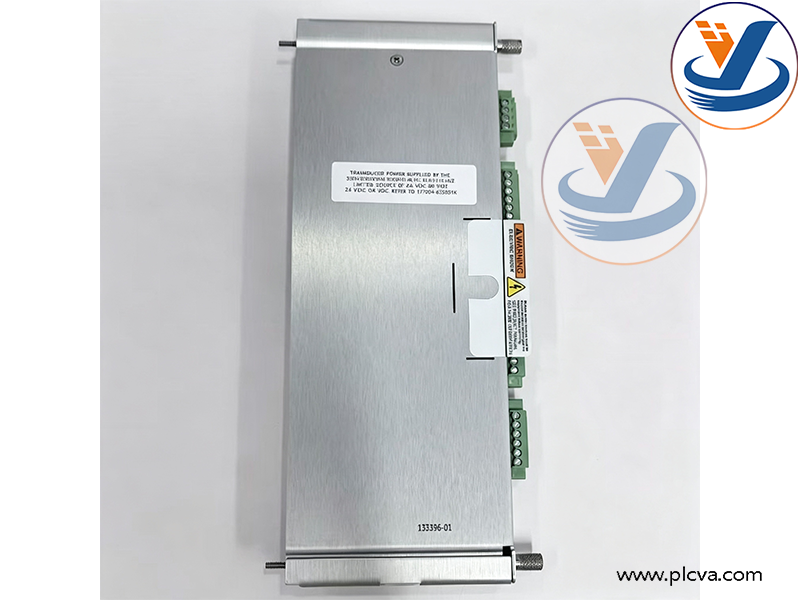

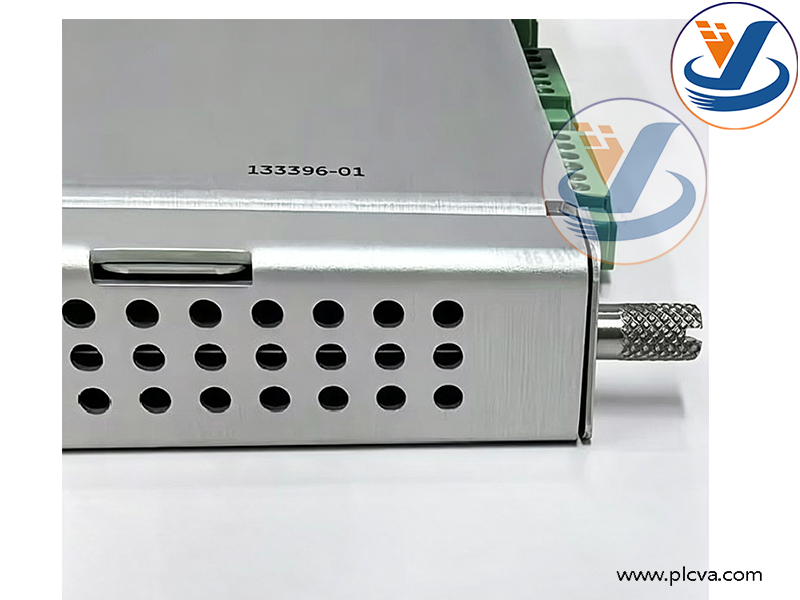

Bently Nevada 133396-01 3500/53 Overspeed Detection IO Module

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

Function Description

Redundant Safety Design Compatibility Supports dual-channel speed signal input with two independent monitoring channels, complying with SIL safety level and explosion-proof standards for power plant and petrochemical units.

Overspeed Signal Acquisition Collects pulse frequency signals from speed probes (eddy current sensors / magnetic speed sensors) of rotating equipment such as steam turbines, gas turbines and large compressors, and converts the pulses into real-time shaft rotating speed.

Overspeed Logic Monitoring & Judgment Equipped with an independent hardware safety circuit. Multiple overspeed threshold levels (alert, danger, trip) can be configured to continuously compare the actual rotating speed with preset protection limits.

Safety Trip Output When the rotating speed hits the dangerous overspeed threshold, the dry hard contacts of the module act immediately to trigger the unit emergency shutdown circuit for interlock protection. The hardware trip function operates independently of system software to prevent protection failure caused by software malfunctions.

Built-in Self-Diagnosis Performs real-time self-checks for channel disconnection, sensor short circuit, internal hardware faults and abnormal signals, and transmits fault alarms to the 3500 rack chassis.

Data Communication & Transmission Uploads real-time speed values, overspeed alarms and fault codes to the 3500 rack controller, which further communicates with DCS, PLC and HMI monitoring systems for remote supervision.

Application & Purpose

Applicable Equipment: Steam turbines, gas turbines, centrifugal compressors, large axial fans, refinery turbomachinery and high-speed rotating equipment for oil & gas extraction.
System Matching: Exclusively designed for the Bently Nevada 3500 rack-based vibration protection system, serving as the core I/O card for unit overspeed safety protection.
Industry Scenarios: Thermal power plants, petrochemical plants, natural gas processing plants, coal chemical industries and large air separation plants and other high-risk heavy industries.
Core Function: Prevent rotating machinery from overspeed runaway faults, which would otherwise lead to rotor rupture, unit explosion, equipment damage and severe personal safety accidents. It is a critical safety protection component for all rotating equipment.
