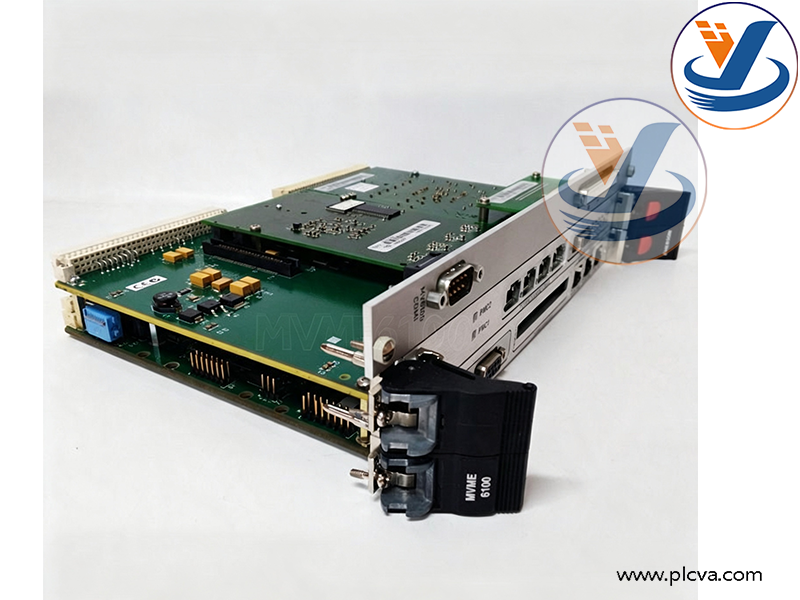

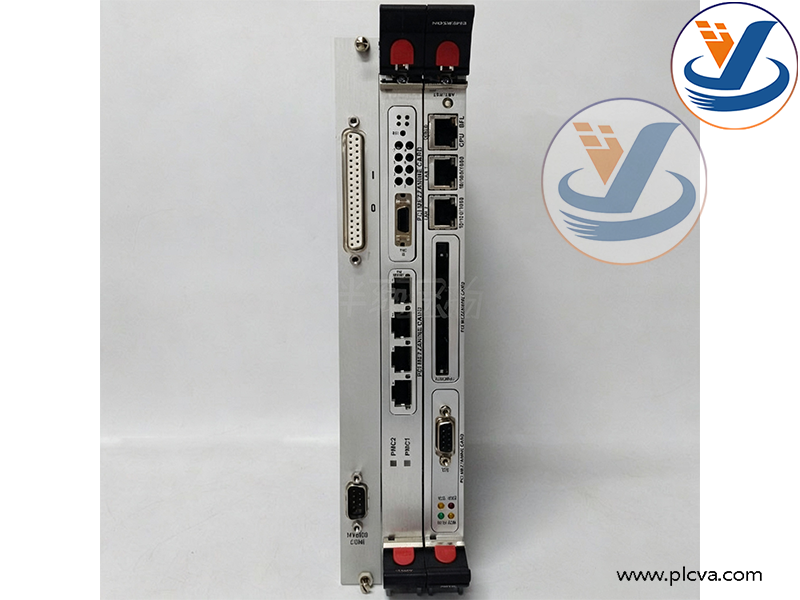

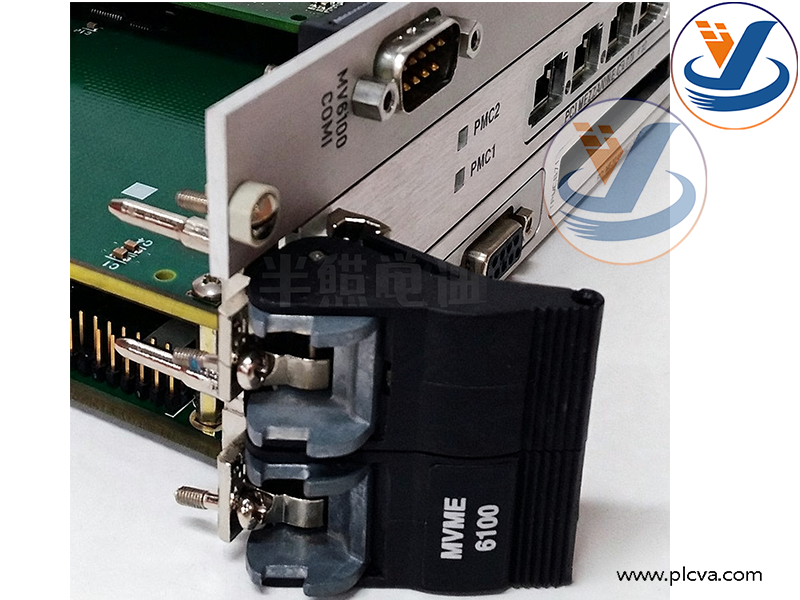

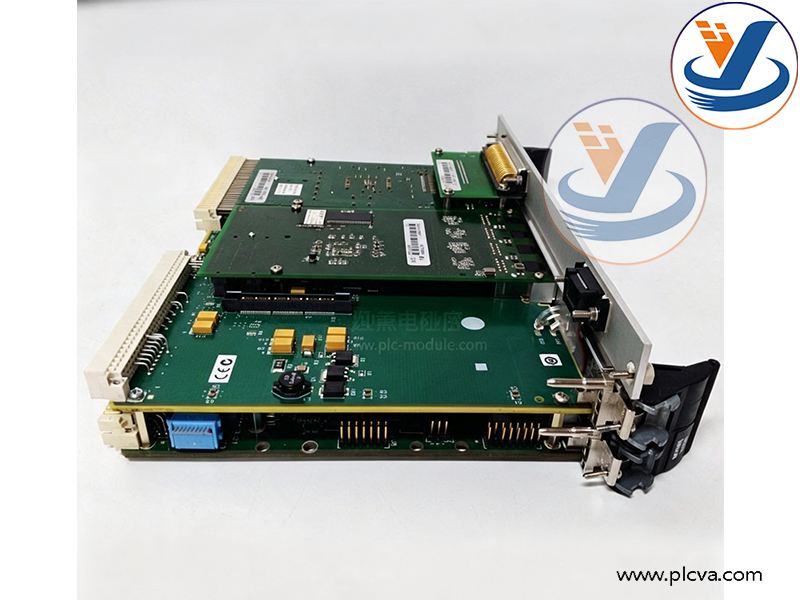

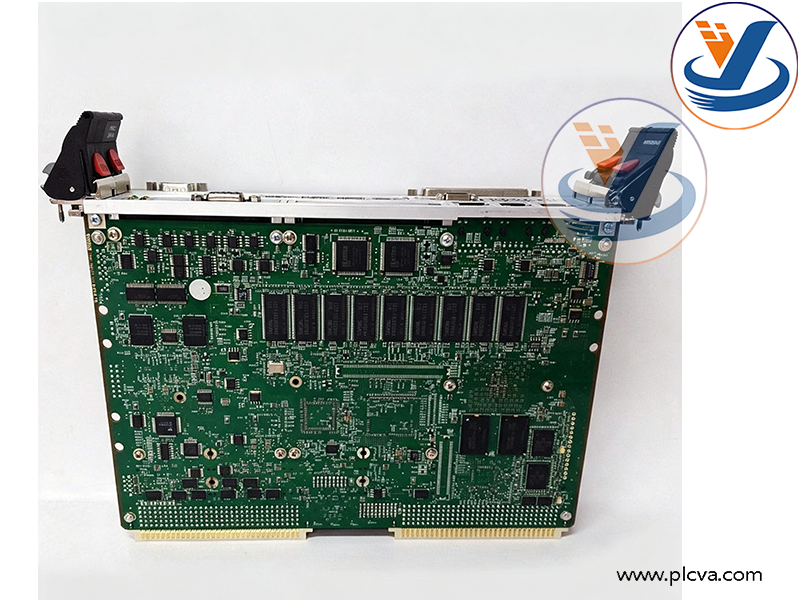

Emerson MVME6100 Multi-layer VME Bus Single-Board Control Computer (SBC)

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

Main Core Functions

Main Control & High-Speed Computing Core Equipped with a 1.267GHz MPC7457 PowerPC processor and a 128-bit AltiVec vector coprocessor, it executes real-time control logic and massive parallel data computation, serving as the central CPU of DCS and industrial control systems.
High-Speed VMEbus Data Communication It is the first VME board adopting the Tundra Tsi148 bus interface chip, supporting the 2eSST high-speed transmission protocol with a maximum bandwidth of 320MB/s. It realizes high-speed signal exchange with I/O modules and communication boards in the chassis, and maintains full backward compatibility with legacy VME hardware.
Large-Capacity Memory & Storage On-board up to 2GB ECC error-correcting DDR memory and 128MB flash memory, supporting long-term stable operation and industrial real-time operating systems including VxWorks and Linux.
Multi-Port Communication & Expandable Slots Dual Gigabit Ethernet ports plus RS232/RS485 serial ports for remote networking and host computer data transmission. Two 100MHz PMC-X expansion slots allow flexible installation of custom acquisition, communication and motion control sub-modules.
Industrial-Grade Reliability & Self-Diagnosis Operating temperature range of -40°C to +85°C with strong vibration and electromagnetic interference resistance. Built-in hardware self-test function to report faults of memory, bus and network ports in real time for uninterrupted critical equipment operation.
Multi-Processor Scalability Supports PrPMC auxiliary processor modules to build multi-CPU parallel computing architecture for complex algorithms and data-intensive tasks.

Application Fields

Defense & Aerospace (Primary High-End Scenario) Avionics systems of reconnaissance aircraft, shipborne command & control systems, radar signal processors, missile guidance units, ground military measurement and control equipment for real-time command scheduling and radar image calculation.
High-End Industrial Automation

Main control unit of large DCS systems for thermal power, oil & gas and petrochemical plants;
Semiconductor wafer processing equipment and automated test equipment (ATE);
Core controller for turbines, compressors and large rotary machinery.

Medical Imaging Equipment CT, MRI, PET nuclear medical devices, responsible for high-speed operation and data reconstruction of high-definition medical images.
Telecommunications & Precision Measuring Instruments Base station controllers, high-end industrial testing equipment and real-time control hosts for scientific precision instruments.

Supplementary Supply Information

The entire MVME6100 series has been officially declared obsolete by the manufacturer with no brand-new original production. Only surplus overseas stock and refurbished second-hand units are available on the market. State-owned enterprises cannot accept resold spare parts for audit compliance, while private enterprises can purchase stock goods from automation traders.
