SCHNEIDER

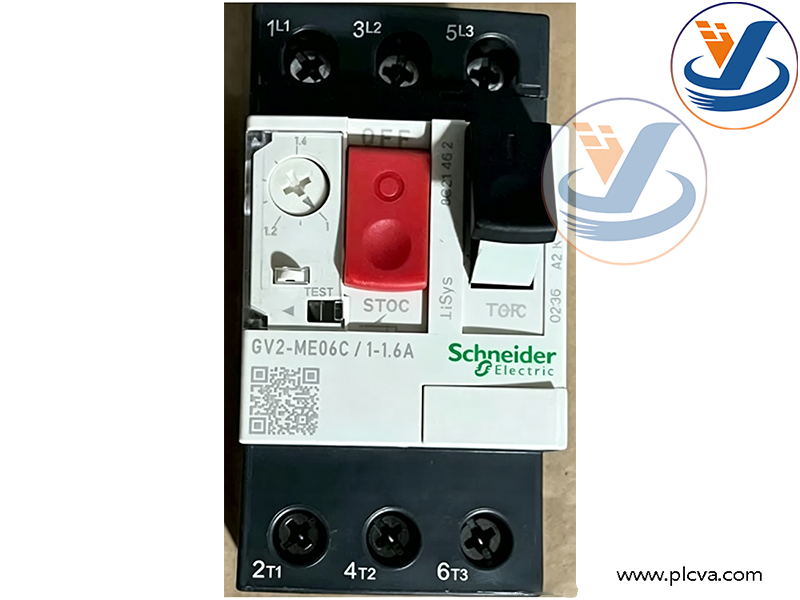

GV2-ME06C (1~1.6A): Schneider Electric TeSys GV2-ME06C 3-phase Motor Circuit Breaker, Adjustable Current Range 1~1.6A

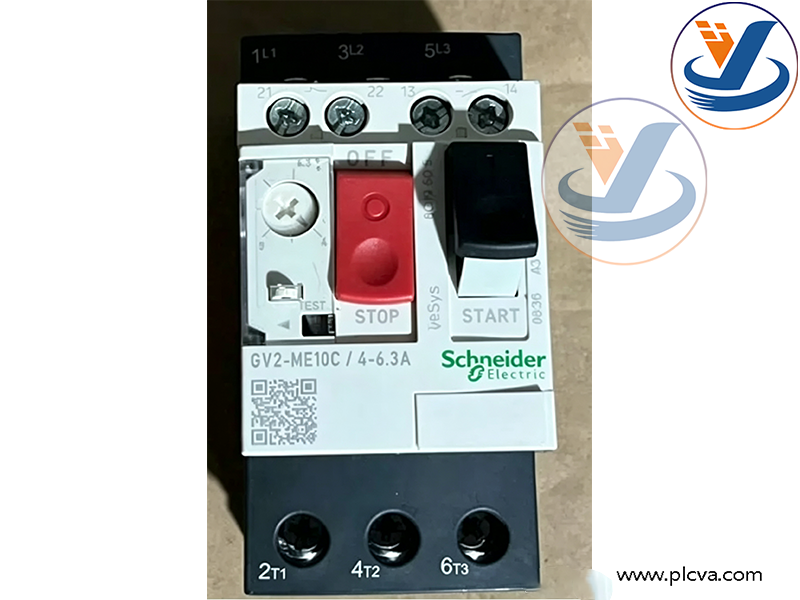

GV2-ME10C (4~6.3A): Schneider Electric TeSys GV2-ME10C 3-phase Motor Circuit Breaker, Adjustable Current Range 4~6.3A
GV2-ME20C (13~18A): Schneider Electric TeSys GV2-ME20C 3-phase Motor Circuit Breaker, Adjustable Current Range 13~18A

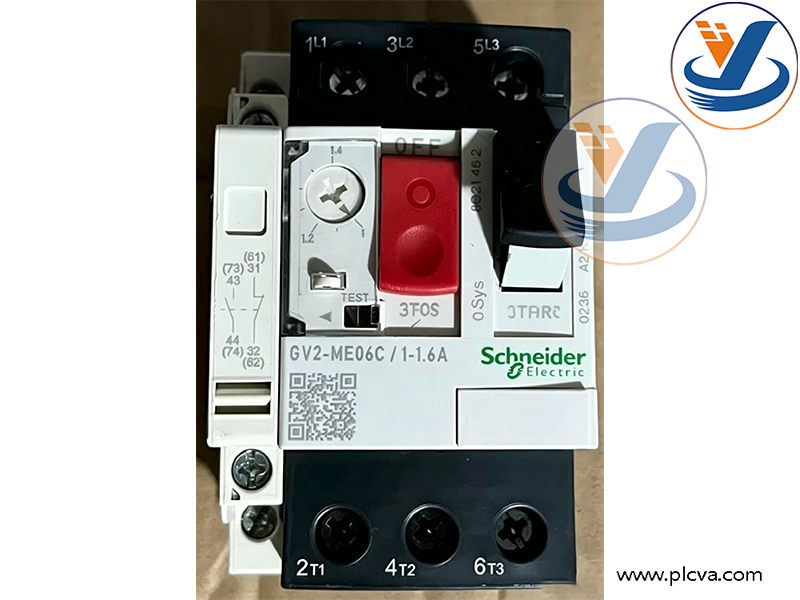

GV2-ME06C with Auxiliary Contact Block: Schneider Electric TeSys GV2-ME06C Motor Circuit Breaker (1~1.6A) Equipped with Auxiliary Contact Module

2. Core Functions

Dual Thermal-Magnetic Motor Protection Thermal overload protection via bimetallic strip trips automatically under long-term motor overload to prevent winding burnout; adjustable current dial matches rated motor current. Instantaneous magnetic short-circuit protection cuts power within milliseconds during phase-to-phase or earth short-circuit faults, avoiding fire hazards from large fault current. Optimized to avoid false tripping during normal motor startup inrush current. The TEST button allows manual inspection of thermal trip function.
Phase Loss / Open Phase Protection Instant tripping if any one of three phases loses power, eliminating overheating damage caused by single-phase motor operation under unstable industrial three-phase power grids.
Integrated Local Manual Start & Stop Control Black START button closes main circuit to energize motor; red STOP button cuts power for normal shutdown or emergency stop. Small single-motor systems can omit AC contactors to simplify cabinet wiring layout.
Optional Auxiliary Signal Contacts (Attachment Version) Side-mounted auxiliary contact module provides signal feedback for PLC and alarm indicators:

NC contact (31-32): Opens upon breaker fault trip for fault alarm signal transmission
NO contact (43-44): Closes when breaker is closed to transmit motor running status feedback

Standard Industrial Installation & Safety Performance 3-phase main terminals: Top terminals 1L1/3L2/5L3 for incoming power; bottom terminals 2T1/4T2/6T3 connect to motor load. IP20 protection rating, snap-on DIN rail mounting design, compatible with full TeSys control components. Isolation function meets industrial maintenance safety standards for safe power cut-off during motor overhaul.
Regular Function Self-Test Built-in TEST button on front panel to manually verify overload trip performance for routine equipment maintenance.

Direct Control of Small 3-Phase Asynchronous Motors Conveyor belts, small ventilation fans, cooling water pumps, agitators and mini air compressors (0.37kW ~7.5kW). Eliminates contactors for simplified control cabinet design for single small motors.
Motor Protection for Machine Tool Equipment Lathe cooling pumps, milling machine feed motors, miniature hydraulic oil pumps, preventing unexpected machine downtime caused by motor burnout.
HVAC Fans & Cooling Tower Water Pumps Workshop exhaust fans, central air circulation pumps, cooling tower feed pumps, reliable overload & phase-loss protection for fluid-load motors.
Light Industry & Food Packaging Automation Equipment Conveyor motors, small mixing machines, packaging machine actuators, compact size fits narrow control cabinet space.
OEM Supporting for Complete Electrical Control Cabinets Standard component for water pump control boxes, fan control cabinets and small PLC control panels, mass wholesale for complete equipment manufacturers.
Agricultural Irrigation & Mini Water Treatment Facilities Irrigation pumps, small sewage aeration blowers, dosing agitators, suitable for simple outdoor control enclosures.
Remote Monitoring Scenarios (Auxiliary Contact Model) Building HVAC systems, wastewater treatment plants and factory production lines; transmit motor running & fault signals remotely to HMI touch screens, PLC and alarm buzzers for central monitoring.
