1. Core Functions

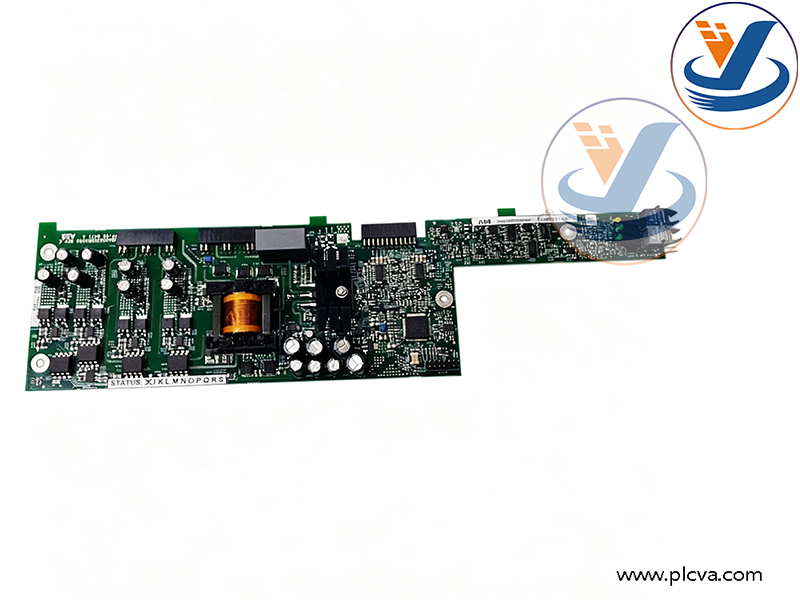

1. IGBT Gate Drive Pulse Output Equipped with built-in pulse drive circuits, it outputs high-precision synchronous drive pulses to internal IGBT power devices of power units, accurately controlling the turn-on/turn-off timing of IGBTs and realizing PWM frequency modulation of three-phase electric energy. It serves as the core control carrier of high-voltage power units.
2. Internal Signal Acquisition & Feedback of Power Unit Real-time collection of DC bus voltage, output current, IGBT temperature and power module fault signals inside the unit. It transmits analog signals and fault digital signals to the main control system of the inverter to form closed-loop power regulation.

1. Unit-Level Fault Detection & Hardware Protection Integrated hardware protection circuits for overcurrent, short circuit, overvoltage, undervoltage, overtemperature and IGBT breakdown. Once abnormalities are detected, the drive pulses are immediately blocked to cut off power output, prevent power device burnout, and upload fault codes synchronously.
2. Multi-Bus Communication Data Exchange Supports H-Bus high-speed internal bus and Modbus RTU communication interfaces, enabling bidirectional data transmission between power units and the upper main control unit of the inverter, uploading operating parameters and downloading speed/torque control commands.
3. Voltage Equalization & Synchronous Timing Control High-voltage inverters consist of series-connected multiple power units. This board unifies synchronous carrier timing, balances the output voltage of each series unit, suppresses harmonics and reduces voltage unbalance to ensure stable high-voltage output waveforms.
4. High-Reliability Operation Under Wide Industrial Temperature Range Industrial wide-temperature circuit design, operating from -30℃ to +80℃ inside control cabinets. Vibration and electromagnetic interference resistance for heavy industrial sites such as power plants and metallurgy. Hot-swap support allows online replacement without full-unit shutdown.
5. Parameter Storage & Local Diagnosis Onboard memory chip stores unit calibration parameters and fault history records. Built-in status LEDs intuitively indicate communication, pulse, fault and power supply status for fast on-site troubleshooting.

2. Main Applications

1. Original Spare Part for ABB ACS580MV Medium & High Voltage Inverters Standard main drive board equipped for power units of ACS580MV series high-voltage inverters. Used for new machine assembly, fault replacement of old equipment and major equipment maintenance, as an indispensable core circuit board of high-voltage frequency conversion devices.
2. Variable Frequency Speed Regulation Control for High-Power Motors Matched with ACS580MV inverters for high-voltage fans, water pumps, compressors and rolling mill motors to realize soft motor start, stepless speed regulation and energy saving. Widely deployed in thermal power, metallurgy, mining and cement industries.
3. High-Voltage Frequency Conversion Systems in Power & Energy Industry Core control component for power units of frequency conversion cabinets for thermal power plant induced draft fans, primary air fans and circulating water pumps; high-power energy storage converters and high-voltage motor drive devices in substations.
4. Retrofit Projects for Heavy-Duty Industrial Transmission Equipment Energy-saving renovation of high-voltage motors for mine belt conveyors, ball mills and steel rolling production lines. Direct replacement when the original board of ACS580MV equipment fails, without modifying cabinet wiring or control programs.
5. High-Power Pump Sets in Chemical & Water Treatment Industry High-voltage frequency conversion control cabinets for chemical circulating pumps and large aeration fans in wastewater treatment plants. Ensures stable low-harmonic operation of heavy loads with complete overload and short-circuit protection.
6. Equipment Maintenance & Automation Spare Parts Trading Core spare parts stocked by industrial control maintenance companies and automation component suppliers for after-sales repair of domestic and overseas ABB high-voltage inverters and second-hand equipment refurbishment.
