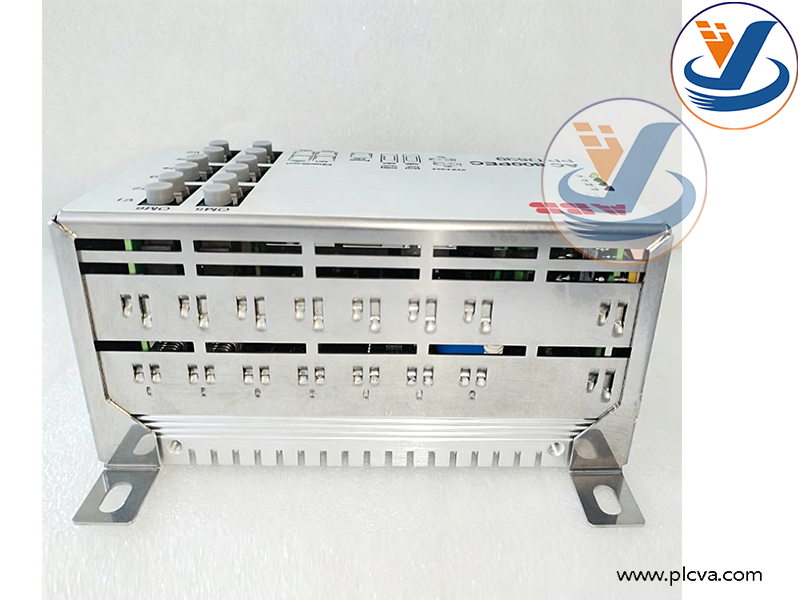

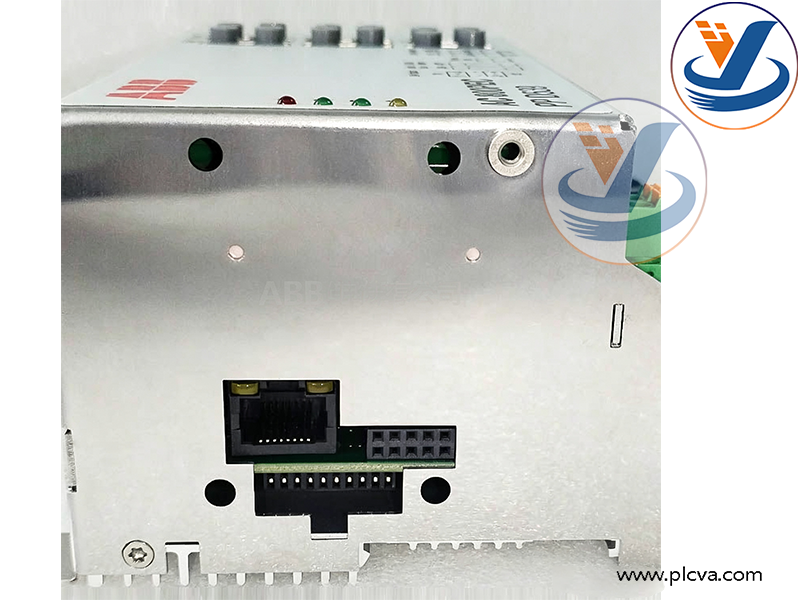

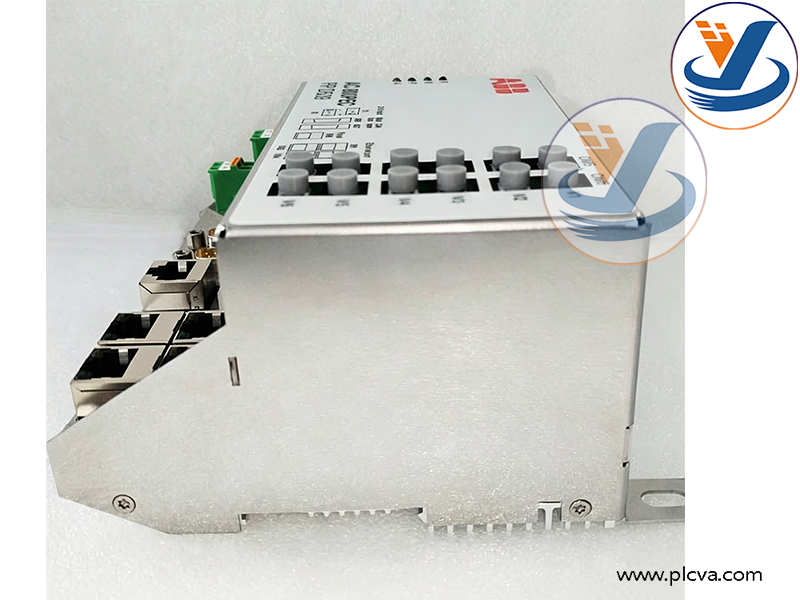

ABB PPD539A102 3BHE039770R0102 AC 800PEC Controller Device
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Model: ABB PPD539A102, Order No. 3BHE039770R0102
It belongs to the AC 800PEC series high-performance power electronic controller, part of ABB Control IT automation portfolio. It is designed for high-speed power conversion, excitation and high-power drive applications, and can be seamlessly integrated into the System 800xA DCS platform.
Different from standard AC 800M, AC 800PEC targets microsecond-level high-speed closed-loop control, specially developed for power electronic equipment.
2. Main Functions
- Acts as the core processing unit for power electronic devices, supporting high-speed control cycles down to 100μs, executing high-precision PWM modulation, grid synchronization and fast closed-loop regulation.
- Dual programming solutions: supports IEC 61131-3 via Control Builder M, and compatible with MATLAB/Simulink for automatic code generation, enabling direct deployment from simulation models.
- Equipped with multiple Ethernet ports, serial interfaces and high-speed fiber optic buses for bidirectional real-time communication with power units, sensors, upper System 800xA and HMIs.
- Built-in comprehensive fault diagnosis, overcurrent/overvoltage/loss-of-synchronism protection, event logging and waveform recording functions.
- Combines high-speed power control and general process logic control; a single controller handles both converter regulation and sequential interlocks.
- Supports module expansion for high-speed I/O to collect analog and pulse signals, suitable for generator excitation and high-power converter signal acquisition.
3. Applications
- Static excitation systems for thermal & hydroelectric generators (primary application).
- High-power variable frequency drives, high-voltage converters, SVG and energy storage PCS.
- Wind turbine converters and grid-tied PV inverters.
- Metallurgical high-power drives and rolling mill control systems.
- Cooperates with ABB System 800xA plant-wide control system.
- Spare part replacement and retrofit projects for legacy excitation systems and high-power drive units.
