1.Main Functions

1. Central logic execution for automation control 32‑bit ARM processor runs user application programs programmed via Automation Builder engineering software. Executes ladder diagram, function block, structured text and IEC‑61131‑3 standard control logic for sequential, interlock and closed‑loop regulation taskseero.
2. Local & remote I/O processing Supports expansion with S500 / S500‑eCo I/O modules. Max capacity: 320 digital I/O, 160 analog I/O. Real‑time collects field sensor signals and outputs control commands to actuators across the system backplane bus.
3. Multi‑port built‑in communication interfaces More products: www.plcva.com

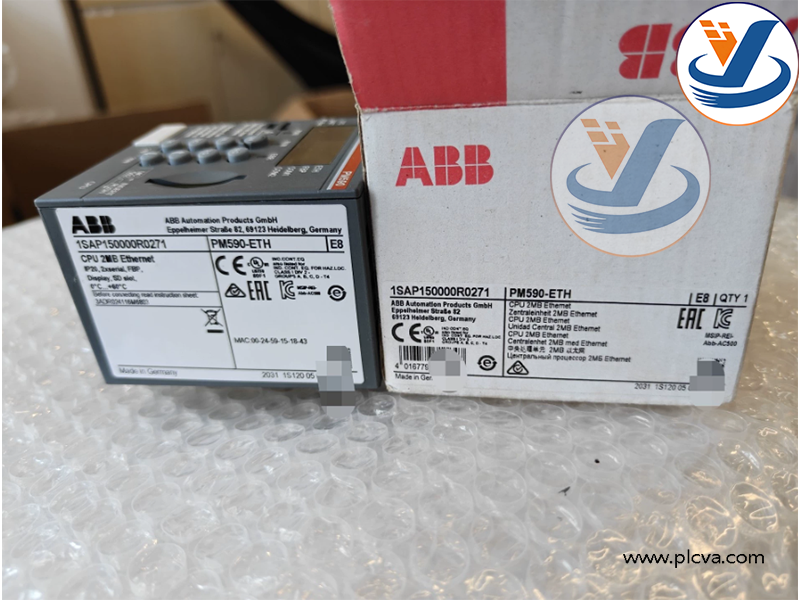

ABB PM590‑ETH Controller Module, Part‑No:1SAP150000R0271

• On‑board Ethernet TCP/IP (RJ45): Embedded web‑server, SNTP time synchronization, supports IEC‑60870‑5‑104 telecontrol protocol, Modbus TCP. Used for programming, HMI connection, SCADA upper‑system linkage and power‑industry telemonitoringeero.
• Dual configurable RS232/RS485 serial ports: Supports Modbus RTU, CS31 bus, for serial devices, drives and legacy equipment ABB PM590‑ETH Controller Module, Part‑No:1SAP150000R0271.
• FBP (FieldBusPlug) interface: Hot‑plug slot for plug‑in fieldbus adapters (Profibus‑DP, CANopen, DeviceNet etc.), expands diverse industrial fieldbus connectivity.

ABB PM590‑ETH Controller Module, Part‑No:1SAP150000R0271

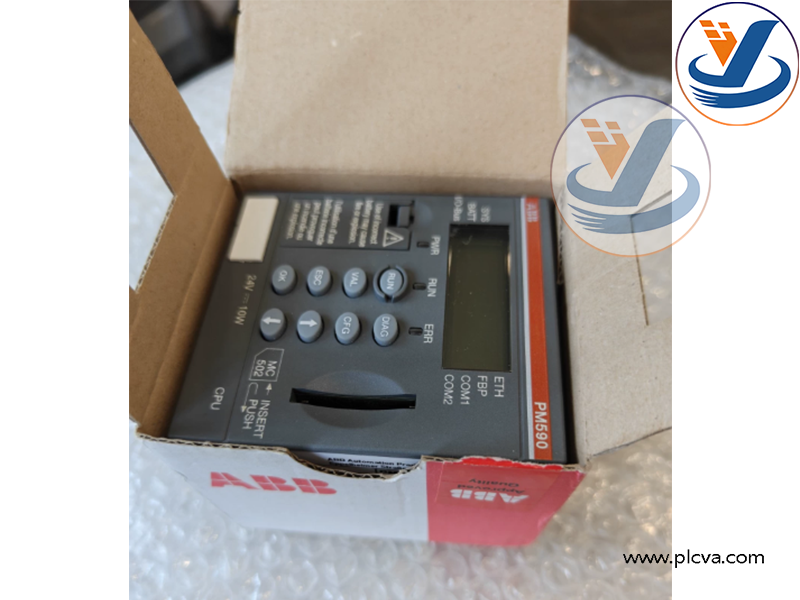

4. On‑board display & local human‑machine operation Integrated front‑panel LCD display plus 8 function keys. Allows on‑site status reading, fault diagnosis, parameter checking, simple local configuration without connecting programming PC. Multi‑LED indicators for RUN, ERROR, communication status visual monitoringeero.
5. Memory card expandability SD‑card slot supports program backup, data logging, firmware upgrade, project restore. Protects program data against power failure together with CPU internal non‑volatile flash memory and backup lithium battery.
6. System diagnostic & fault handling Built‑in comprehensive system diagnosis. Detects I/O channel fault, communication breakdown, power anomaly and hardware error; stores diagnostic logs, triggers alarm output, supports safe system fallback for industrial reliability requirements.
7. Real‑time clock & time synchronization Real‑time clock for time‑stamping events and alarms; SNTP via Ethernet realizes network time synchronization across the whole automation systemeero.

ABB PM590‑ETH Controller Module, Part‑No:1SAP150000R0271

2. Applications & Usage

Core application objects

It acts as the main CPU unit of AC500 modular PLC system for general‑purpose industrial automation.

ABB PM590‑ETH Controller Module, Part‑No:1SAP150000R0271

Typical industrial scenarios

1. Power‑industry automation: Substation auxiliary control, generator auxiliary equipment monitoring, distributed power station control (well‑suited for IEC‑60870‑5‑104 telecontrol interface)eero.
2. Water & wastewater treatment: Pump station control, sewage treatment process logic control, valve interlock and data acquisition.
3. Factory machinery & production lines: Material handling systems, packaging machines, conveyor systems, general‑purpose machine‑tool auxiliary control.
4. Building & infrastructure automation: HVAC system, central plant control, tunnel auxiliary control.
5. Marine & offshore auxiliary automation: Cabin auxiliary equipment control, engine‑room peripheral monitoring inside control cabinets.
6. System retrofitting & spare‑part replacement: For existing AC500‑series system maintenance, CPU upgrade and equipment modernization projects.

ABB PM590‑ETH Controller Module, Part‑No:1SAP150000R0271

System composition requirements

1. PM590‑ETH processor module (1SAP150000R0271)
2. Matching AC500 CPU terminal base unit
3. S500 / S500‑eCo I/O modules according to site signal list
4. Optional FBP fieldbus plug‑in modules, SD memory card, backup battery
