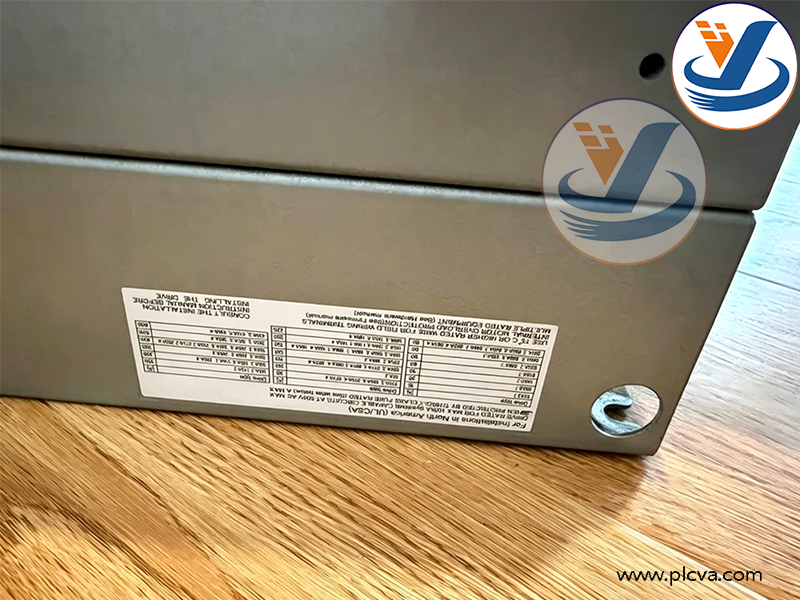

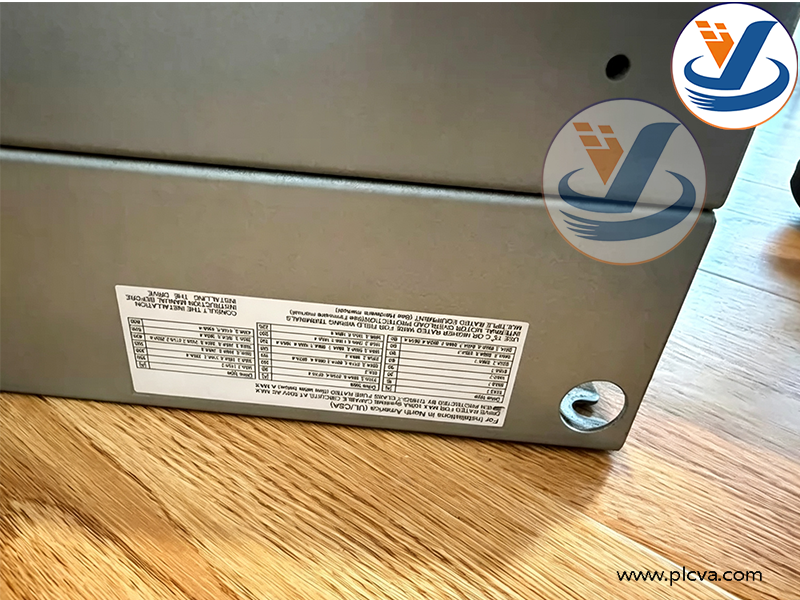

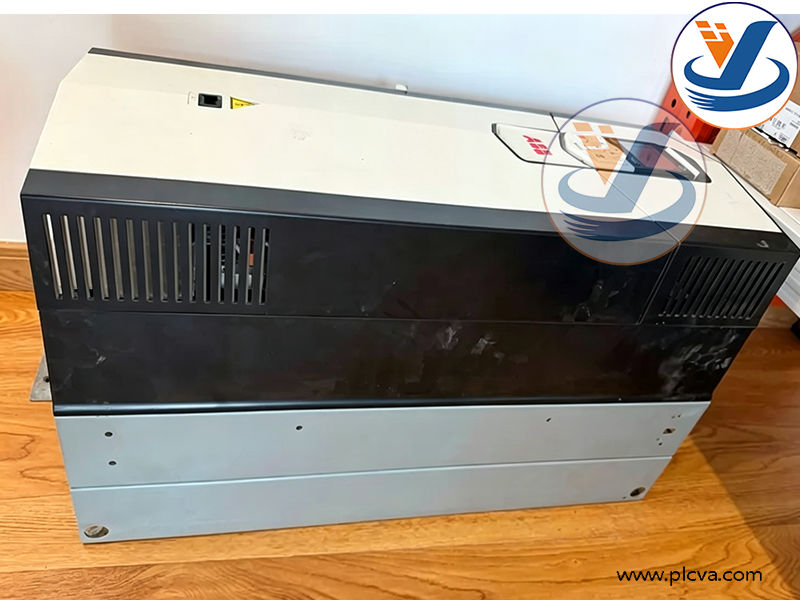

ABB ACS880-01-180A-5 Wall-Mounted Single Industrial AC Variable Frequency Drive, 3-phase 380~500 VAC, Rated Output Current 180 A

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

1.Core Functions

Direct Torque Control (DTC) – Core Motor Control Technology ABB proprietary encoder-free high-precision motor control that directly regulates motor flux and torque with torque response under 2 ms. It delivers full torque at zero low speed, achieves high-accuracy speed control in open-loop mode, and reduces mechanical vibration & wear for cranes, extruders and other heavy shock loads.
Dual Load Modes for Light/Heavy Duty Adaptation Two built-in operating curves to match different loads:

Light Duty (LD): For smooth loads like fans & pumps, continuous 171 A output for 110 kW motors.
Heavy Duty (HD): For conveyors, mixers and lifting equipment with frequent start-stop impact; continuous 156 A output, 150% overcurrent capacity for 60 seconds to withstand shock loads.

Standard STO (Safe Torque Off) Machine Safety Function Hardware safety circuit that cuts motor torque output instantly without main circuit disconnection. Complies with EN ISO 13849-1 PL d / SIL 2 safety standards, used with emergency stop and safety gate interlocks to prevent mechanical injury hazards.
Integrated Energy Saving Algorithms Built-in Energy Optimizer automatically lowers motor excitation under light load to cut no-load power loss. Special multi-segment curves & sleep/wake logic for fan/pump applications deliver 20%~50% energy savings vs direct mains operation. Real-time energy consumption and runtime statistics support efficiency monitoring.
Full Compatibility with Mainstream Industrial Fieldbuses Optional communication adapters support Profibus-DP, Profinet IO, EtherCAT, Modbus TCP, DeviceNet etc. Enables bidirectional data exchange of speed, torque and fault signals with PLC, DCS and HMI; supports master-follower synchronization for multi-drive lines like conveyors & winding machines.
Universal Motor Drive Compatibility Drives asynchronous induction motors, permanent magnet synchronous motors and reluctance motors. Closed-loop encoder feedback enables high-precision positioning & tension control; one-click auto motor identification simplifies parameter commissioning.
Comprehensive Equipment Protection & Fault Diagnosis Full-range protection against overcurrent, overvoltage, undervoltage, overheating, earth fault, phase loss, motor stall and overload. Millisecond-level fault recording, event logs and SOE sequence of event logging. Equipped with built-in analog/digital I/O (6DI/2DO/2AI/2AO) for external sensors, valves and alarm beacons.
User-Friendly Maintenance Design Removable memory unit copies full drive parameters in one click for batch commissioning or quick replacement of faulty units. Wireless debugging via Bluetooth control panel ACS-AP-W. Operating temperature range -20℃ ~ +50℃; optional coated circuit boards for dusty, humid and corrosive environments.
Flexible Braking Energy Management Optional built-in brake chopper with braking resistors to dissipate potential energy during stopping or load lowering. Regenerative units are available for frequent braking applications to feed excess energy back to the power grid for extra energy efficiency.

2. Main Industrial Applications

Water Treatment & HVAC Industry (Primary Light-Duty Application) Large water supply pumps, sewage lifting pumps, cooling tower fans and central air conditioning centrifugal fans. Sleep energy-saving function drastically reduces no-load power consumption; multi-pump linkage for constant pressure water supply.
Mining & Cement Heavy Conveying Equipment Belt conveyors, bucket elevators, ball mills and aggregate mixing plants. Heavy overload capacity plus DTC low-speed high-torque performance handles stone impact loads and prevents belt slippage.
Chemical & Plastic Extrusion Production Lines Single/twin-screw extruders, pelletizers and reactor agitators. Precise closed-loop torque control stabilizes melt pressure to guarantee consistent forming quality.
Port & Factory Lifting & Material Handling Equipment Gantry cranes, overhead travelling cranes, winches and lifting platforms. Zero-speed full torque and anti-slip logic, plus STO safety circuit to meet mandatory safety standards for lifting machinery.
Oil & Gas / Power Plant Compressors & Fans Gas compressors, boiler induced draft fans, desulfurization & denitrification booster fans. Wide voltage tolerance adapts to grid fluctuation in power plants; redundant communication interfaces connect to DCS control systems.
Paper & Film Winding & Slitting Equipment Rewinders, slitting machines, unwinder/rewinder tension control. Master-follower multi-drive synchronization achieves precise tension regulation to avoid film stretching or breakage.
Marine & Offshore Platform Auxiliary Equipment Seawater pumps, engine room ventilation fans and deck winches. Optional marine-certified versions with salt fog and hull vibration resistance.
Complete Automated OEM Equipment Packaging production lines, metal processing machine tools and material sorting conveyors. Standard communication interfaces for rapid integration into automation control cabinets.
