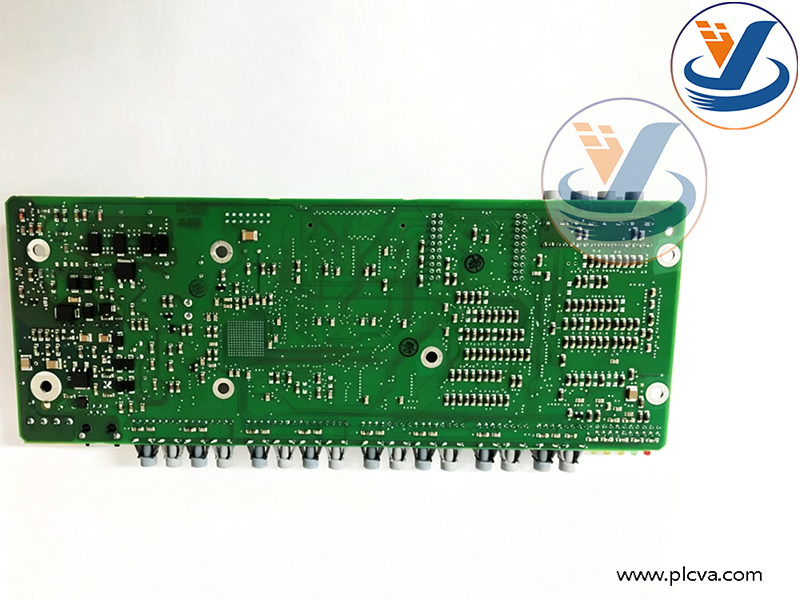

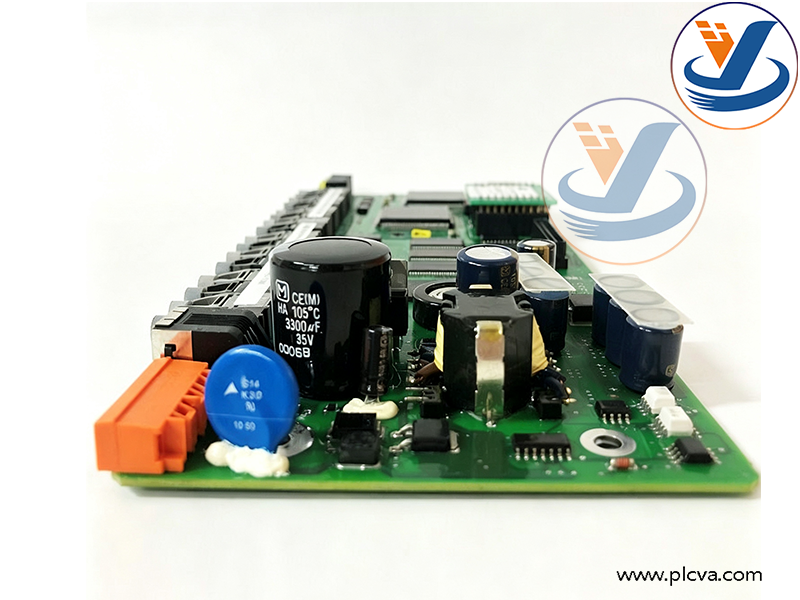

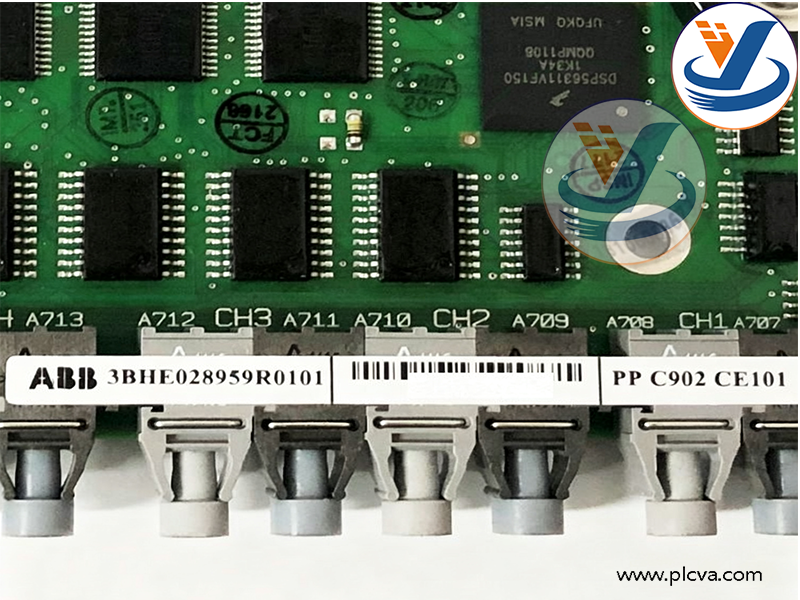

ABB PPC902CE101 (Order No.: 3BHE028959R0101), PP C902 Series High‑Pressure Control Board (Drive Processor Board)

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

Main Functions

Core computing & control for high‑voltage drives: As the core processor board inside medium‑voltage converters, it executes motor vector‑control algorithms to realize closed‑loop precision regulation of speed and torque for high‑voltage motors.
Signal acquisition & processing: Collect analog and digital signals including converter voltage, current and temperature; perform signal calculation and filtering, and output pulse control signals to drive power units.

Protection for motor & converter: Integrate protection logics for over‑current, over‑voltage, overload and over‑temperature. Trigger rapid shutdown upon faults to protect high‑voltage power components and motors.
Multi‑protocol industrial communication: Support Profibus‑DP, Modbus TCP/IP, Ethernet and other interfaces. Exchange data with upper‑level DCS and HMI, upload operating parameters and alarm information, and receive remote control commands.
Configuration & commissioning: Compliant with IEC61131‑3 standard programming languages for parameter setting and logic programming. On‑board LED status indicators provide fault diagnosis and status visualization for convenient on‑site maintenance.
Backplane bus interaction: Realize high‑speed data exchange with other sub‑boards of the converter via backplane bus. Support modular system expansion for high‑voltage drive architecture.

Main Applications

This board is the core internal control component for ABB ACS6000 medium‑voltage frequency converters.

‑ Used for high‑power high‑voltage motor drive control in metallurgy, mining, paper‑making, power generation, chemical industry, water treatment and other industries for high‑power fans, water pumps, compressors and other high‑voltage equipment.

‑ Installed inside high‑voltage converter cabinets, undertaking calculation, protection and communication tasks for converters to realize high‑voltage motor speed regulation, start‑stop and interlock protection.

‑ Widely deployed in large‑scale complete industrial equipment for variable‑frequency speed control of heavy‑duty loads to meet energy‑saving and process‑control requirements. It serves as critical spare part for high‑voltage drive systems.
