Main Functions

1. Microsecond‑level high‑speed closed‑loop computation: Heterogeneous CPU+FPGA architecture with minimum control cycle down to 100 μs. Executes high‑speed power‑electronic control algorithms while handling conventional millisecond‑level process logic control.
2. Multi‑mode programming: Support IEC 61131‑3 standard programming languages; compatible with MATLAB/Simulink model‑based design. Simulation models can be directly downloaded for execution to shorten engineering cycles.

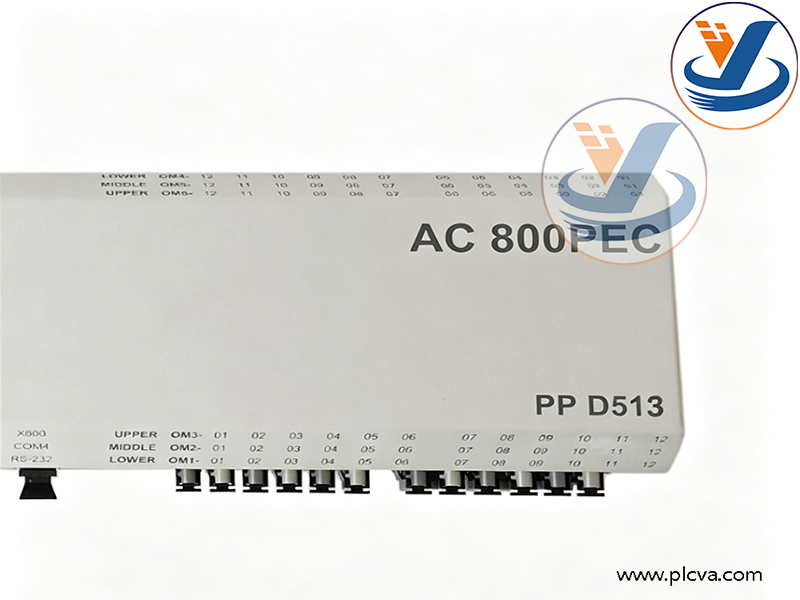

ABB PPD513

1. High‑speed I/O & fiber‑optic communication: Adopt high‑speed fiber links to interface with power units. Collect high‑speed real‑time signals such as voltage and current; output pulse signals to drive thyristor and IGBT power devices.
2. Comprehensive protection logic: Integrate over‑voltage, over‑current, over‑temperature and fault‑detection functions. Trigger rapid protective actions and interlock shutdown upon faults to safeguard power components and main equipment.
3. Multi‑protocol industrial communication: Support Ethernet, Profibus‑DP, Modbus TCP and more. Connect to 800xA DCS system, exchange operational data and alarm messages with HMI and host systems, and accept remote control commands.
4. System diagnosis: On‑board status LED indicators; fault‑event logging. Support on‑site parameter tuning and fault traceability for convenient maintenance.
5. Modular expansion: Work with high‑speed I/O modules and standard S800 I/O for point expansion; support stand‑alone or redundant hardware configurations.

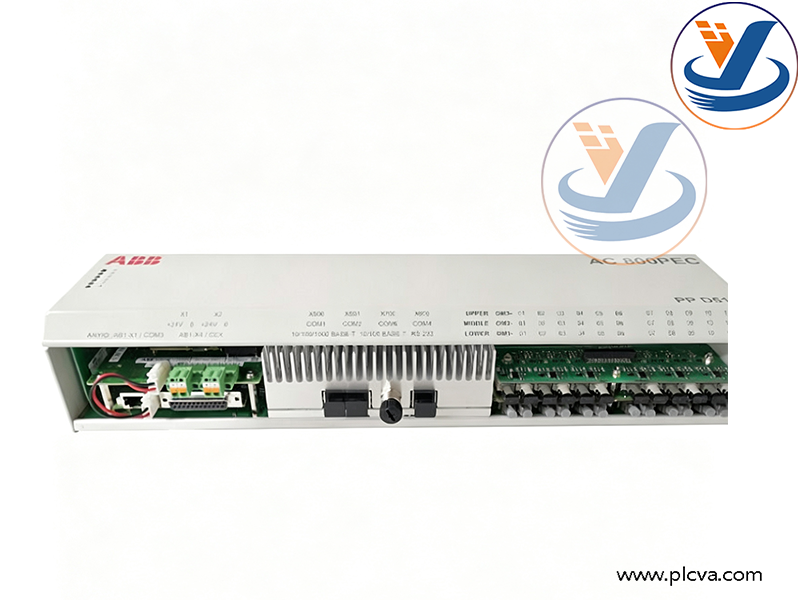

ABB PPD513

Main Applications

This unit is the core controller of ABB AC800PEC series, designed for high‑real‑time‑demand industrial scenarios including power‑electronics and high‑power drives.

‑ Applied for generator excitation control, high‑power rectifiers, SVG reactive‑power compensation, medium‑voltage converters, energy‑storage converters, electric‑arc furnaces and rail‑transit traction equipment.

ABB PPD513

‑ Widely deployed in thermal power, hydropower, metallurgy, chemical, new‑energy and rail‑transit industries.plcva – module

‑ Mounted inside control cabinets as the core computing unit for complete power‑electronic equipment. It unifies high‑speed power‑conversion control and general‑process interlock control within one single controller, replacing traditional separate hardware consisting of high‑speed controller plus PLC. It serves as the key control component for heavy‑duty power‑electronic installations.
