1. Full Product Designation

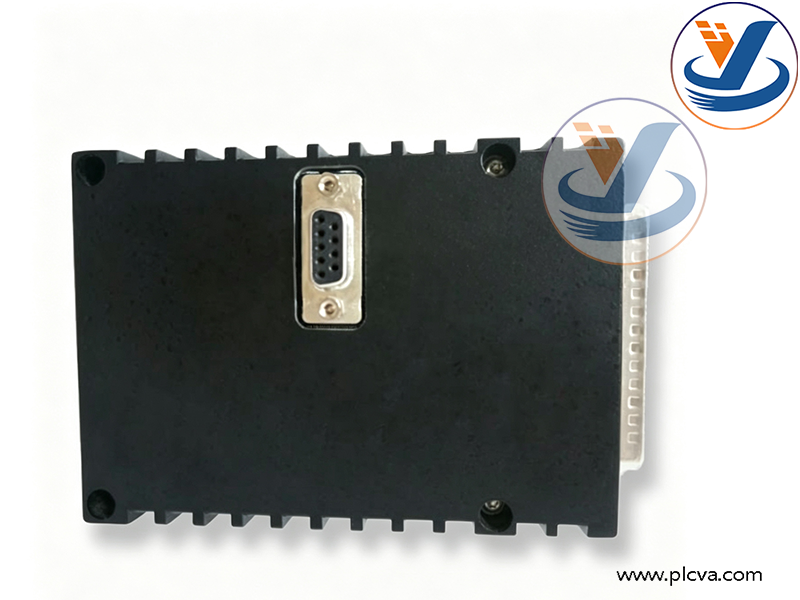

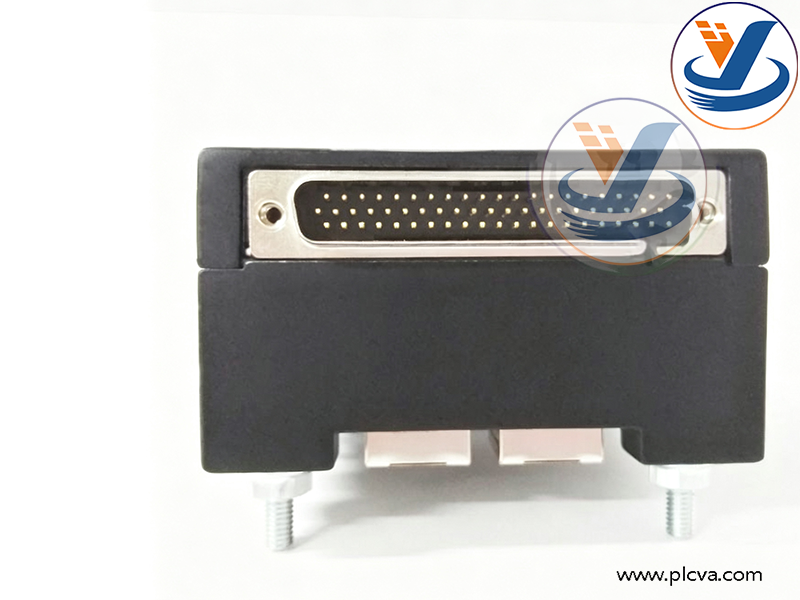

Full English Name: GE IS220PPRFH1A I/O Pack (PPRFH1A), Mark VI Turbine Control System

Model Breakdown:

• IS220: Prefix for GE Mark VIe distributed I/O Pack hardware family
• PPRF: Functional code for PROFIBUS‑DP Master gateway
• H1A: Hardware revision variant code
• I/O Pack: Standard hot‑swappable distributed I/O unit form‑factor for Mark VIe system

Note: This module is compatible with Mark VI, Mark VIe and Mark VIeS platforms, mainly deployed on Mark VIe. It is not a general DI/DO acquisition card but a fieldbus gateway unit.

GE IS220PPRFH1A I/O Pack（PPRFH1A)

2. Product Background

IS220PPRFH1A belongs to the distributed I/O family of GE Speedtronic Mark VI / Mark VIe turbine control systems. It is a dedicated PROFIBUS‑DP Class‑1 master gateway I/O Pack developed for gas‑turbine and steam‑turbine generator units.

Mark VIe adopts IONet Ethernet‑based distributed I/O architecture. This module bridges the turbine controller and third‑party PROFIBUS‑DP slave field devices. Original OEM production has reached End‑of‑Life (EOL). Available supplies consist of pulled‑used, refurbished and surplus spare parts. Configuration and diagnostics are performed via ToolboxST software. It supports simplex, duplex hot‑standby and TMR triple‑modular‑redundant architectures, widely used in combined‑cycle power plants and gas compressor stations.

GE IS220PPRFH1A I/O Pack（PPRFH1A)

3. Key Functions

1. PROFIBUS‑DP V0 Class 1 master communication: Acts as DP master over RS‑485 DB‑9 interface, polling PROFIBUS‑DP slave devices. Supports up to 125 slaves with maximum 244‑byte input/output per slave; baud rate ranges from 9.6 k‑12 M Baud.
2. Protocol mapping & data forwarding: Maps PROFIBUS‑DP field‑bus data into Mark VIe internal IONet Ethernet data, enabling bidirectional data exchange between third‑party instruments, drives, remote I/O and the turbine main controller.
3. Redundancy capability: Supports duplex hot‑standby operation: one active master plus one standby unit for automatic fail‑over upon active‑unit failure. Cold‑spare mode is also available. Compatible with TMR triple‑redundant turbine system configurations.
4. On‑board diagnostics & alarm reporting: On‑board status LED indicators detect bus errors, slave drop‑outs, communication faults and hardware self‑test events. Alarms are reported to Mark VIe controllers and HMI.
5. Distributed I/O network integration: Connects to Mark VIe IONet Ethernet I/O network, expanding PROFIBUS field‑bus interface without modifying main CPU hardware.

GE IS220PPRFH1A I/O Pack（PPRFH1A)

4. Applications & Purpose

1. Host‑system requirement: Designed for GE Mark VI / Mark VIe / Mark VIeS turbine control systems. Installed in standard I/O Pack chassis slots and cannot operate standalone outside Mark VIe system.
2. Typical equipment: GE gas‑turbine and steam‑turbine generator sets; combined‑cycle power plants, natural‑gas compressor stations and industrial power turbines.
3. Operational purpose: Extends PROFIBUS‑DP interface for turbine control systems to connect third‑party remote I/O, variable‑frequency drives, valve positioners and smart field instruments. Enables monitoring, interlocking and command exchange between third‑party equipment and turbine main control logic. Solves expansion requirements when native turbine system lacks PROFIBUS ports.
4. Market profile: Critical power‑plant field‑bus spare‑part for replacement upon PROFIBUS communication failure. Used for unit retrofit and capacity expansion to integrate legacy PROFIBUS field devices.
