1. Full Product Designation

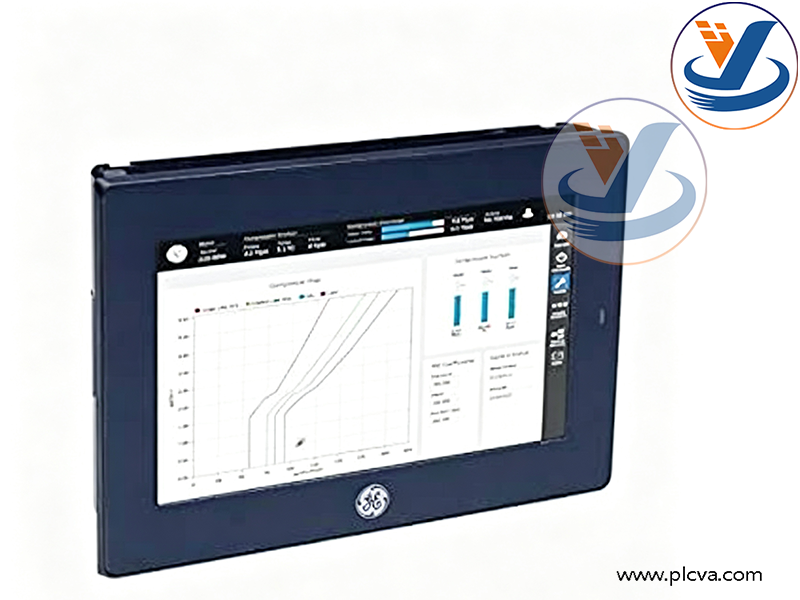

Full English Name: GE IC755CSW07CDA QuickPanel+ Operator Terminal

Model Breakdown:

• IC755: Prefix for QuickPanel+ HMI product family
• CSW: 7‑inch wide‑screen, projected capacitive multi‑touch, standard GE bezel housing
• 07: 7‑inch display size
• C: Color TFT LCD
• D: 24 VDC power supply
• A: Hardware revision variant code

Note: Originally developed by GE Intelligent Platforms, this business unit was later acquired by Emerson Automation. It runs Windows Embedded Compact 7 operating system. Beyond basic HMI visualization, it integrates gateway function and on‑board local data historian capability.

GE IC755CSW07CDA

2. Product Background

IC755CSW07CDA belongs to GE QuickPanel+ high‑performance industrial operator‑terminal (HMI) series, designed for human‑machine interaction in factory automation, power‑energy and machinery equipment applications.

QuickPanel+ is an all‑in‑one operator terminal oriented toward Industrial‑Internet scenarios, combining HMI visualization, gateway service and local data logging. It communicates with GE PLCs and third‑party controllers as well as turbine control systems. Original OEM production has reached End‑of‑Life (EOL). Configuration software is Proficy Machine Edition. Spare‑part supplies consist of surplus new stock, pulled‑used and refurbished units. It is widely deployed in combined‑cycle power plants, water‑treatment plants, petro‑chemical facilities and packaging‑machine control cabinets.

Hardware specifications: 7‑inch wide‑screen TFT display, resolution 800×480; Freescale i.MX535 (1 GHz ARM Cortex‑A8) processor; 512 MB RAM, 256 MB flash memory; 24 VDC power input. Supports panel cut‑out mounting and VESA bracket mounting. Fan‑less natural‑convection cooling enables stable operation under cabinet industrial temperature conditions.More products: www.plcva.com

GE IC755CSW07CDA

3. Key Functions

1. Process visualization & operator interaction: Displays process parameters, graphic schematics and real‑time trend curves from PLC or host controllers. Touch‑screen enables operator commands such as start‑stop, parameter modification and mode switching. Multi‑language user interface is supported.
2. Alarm & event management: Pop‑up real‑time alarms with timestamped event logging for post‑fault review and root‑cause analysis.
3. Data logging & local data historian: On‑board local storage archives process trends and runtime history without additional PC server; supports data export.
4. Multi‑protocol fieldbus gateway: Equipped with Ethernet and RS232/RS485 serial ports. Supports GE native protocols, Modbus and other industrial protocols. Performs protocol conversion between multi‑brand automation controllers. Built‑in HTML5 web browser allows remote web‑based access to HMI screens.
5. Recipe management: Stores multiple sets of process recipes for one‑touch parameter switching under different working conditions.
6. Remote‑maintenance capability: Supports remote access and project upload/download for commissioning. Battery‑backed SRAM preserves critical parameters upon power loss to avoid data corruption.

4. Applications & Purpose

1. Compatible host systems: GE RX3i, VersaMax PLC and third‑party PLC platforms. Can serve as local operator display for Mark VIe turbine control systems. Mounted directly on control‑cabinet door via panel cut‑out.
2. Target equipment & industries: Thermal & combined‑cycle power plants, water‑treatment facilities, petro‑chemical plants, compressor units, packaging machinery and general factory‑automation production lines.
3. Operational purpose: Acts as on‑site human‑machine interface. Operators monitor equipment status, acknowledge alarms and issue control commands locally. Performs on‑site data archiving and cross‑controller protocol gateway functions, reducing dependency on host PC workstations. Used as replacement spare‑part for legacy‑project HMI failures.
4. Market profile: Critical industrial‑automation HMI spare‑part for cabinet‑door local operation. It cannot drive I/O points independently and must work cooperatively with PLC or process controllers.
